Linear Slide

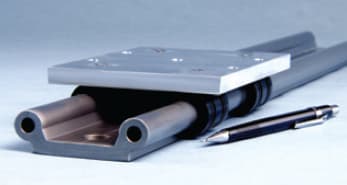

LM76 (East Longmeadow, MA) offers the Whispah™ Linear Slide for linear motion applications that must be non-contaminating to their environments, such as medical equipment. The linear slide is available in two sizes. The WSP1 Twin Rail System features a 4" × 5.5" table with a bearing centerline to centerline measurement of 2.125 in. For greater load and higher stability, the WSP2 Twin Rail System features a 6" × 7" table and a bearing centerline to centerline of 2.906 in. The low-profile Whispah 1 linear slide can handle vertical loads (Co-ax) to 150 lbs. and side loads (Co-rad) to 75 lbs. The Whispah 2 linear slide can handle vertical loads (Co-ax) to 225 lbs. and side loads (Co-rad) to 125 lbs. Both are available in lengths to 120 in. The precision aluminum two rail extrusion has a Hardcoat finish for long life, and each rail is hollow to allow for a water or air line and wiring. Predrilled mounting holes allow for easy integration into new or existing systems.

---

---
