Solving Post-Production Cleaning Challenges in Medical Device Manufacturing

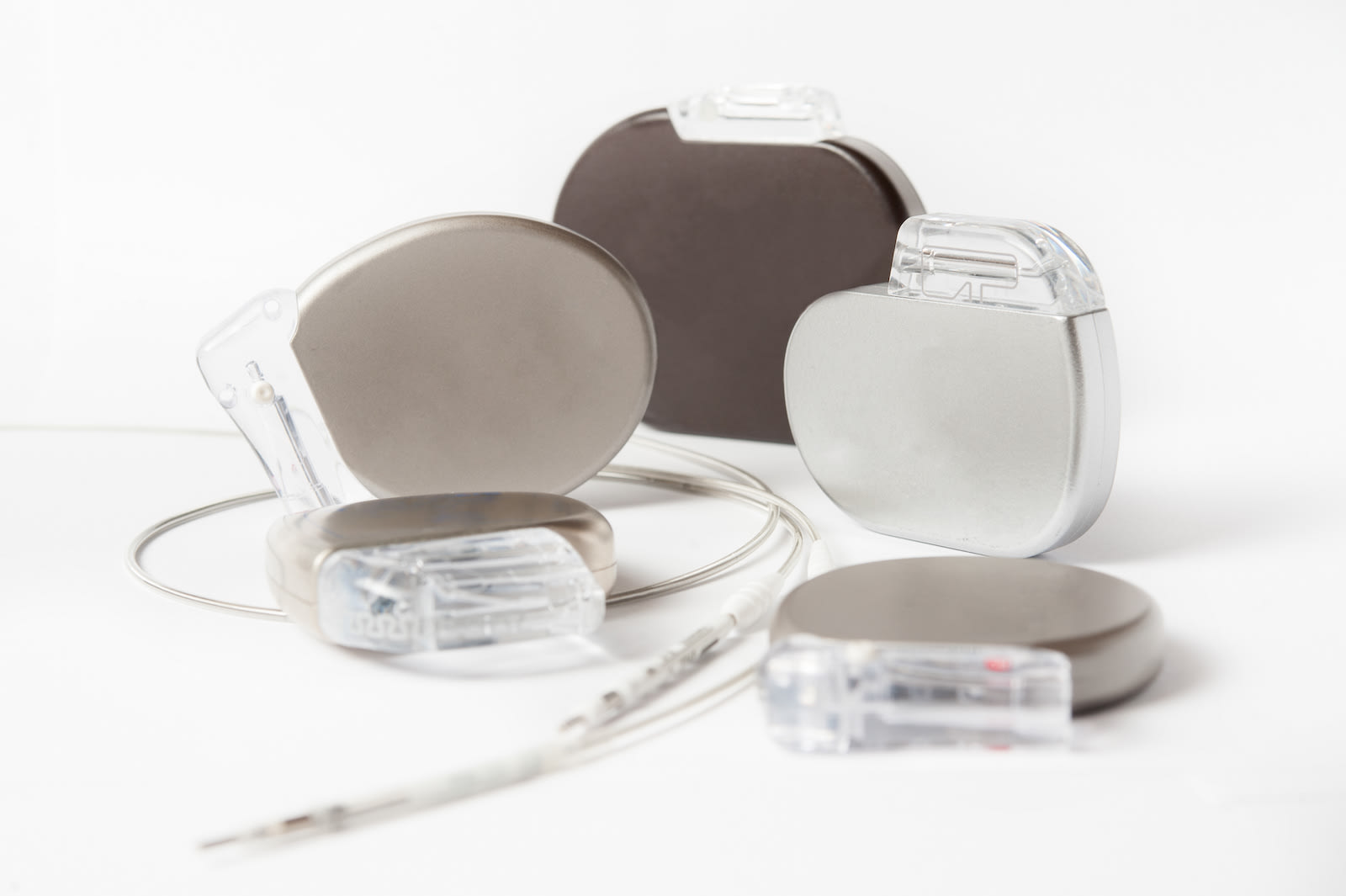

Medical devices often feature intricate designs and parts that create post-production cleaning challenges. (Credit: MicroCare)

In the highly regulated world of medical device manufacturing, post-production cleaning is essential for ensuring safety, compliance, and best performance. Beyond removing surface contamination, it must address intricate geometries, sensitive materials, and strict industry standards. Effectively managing these challenges is key to meeting regulatory requirements and ensuring reliable device function.

Evolving Challenges in Modern Medical Device Cleaning

Medical devices often feature intricate designs with fine details and a combination of diverse materials. These advances create new challenges for post-production cleaning, as hard-to-reach areas — such as internal channels, threaded components, and microscopic crevices — can trap contaminants. If not removed, these contaminants can compromise device functionality, pose risks to patient safety, and compromise effective sterilization.

Medical manufacturers must also address the expanding range of materials used, each with unique cleaning requirements. Medical-grade plastics, titanium alloys, ceramics, and silicone components are often used within a single device, necessitating effective cleaning solutions compatible with all materials. This material diversity complicates the choice of cleaning methods and fluids, as what works well for one component might damage another. Integrating sensitive electronic components introduces further complexities, as these parts require careful handling to prevent damage during cleaning.

The Role of Contaminant Removal in Device Safety

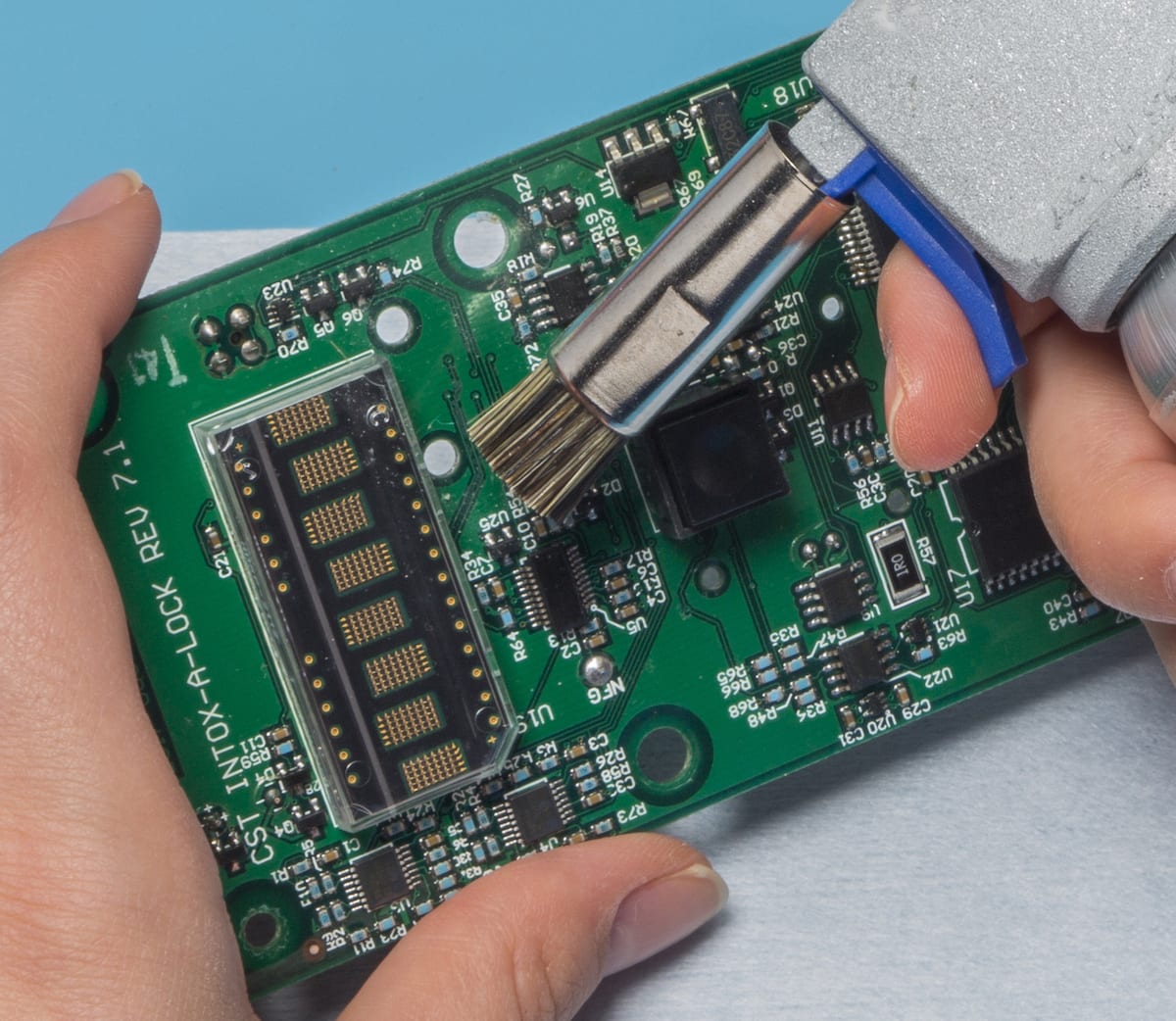

Manual cleaning is particularly effective for small production batches or intricate components. (Credit: MicroCare)

Contaminants in medical device manufacturing include residues such as production debris, machining oils, dust, metal filings, and even fingerprints. These contaminants can lead to serious risks, including patient infections, impaired device performance, regulatory noncompliance, and potential product recalls if not thoroughly removed. Contaminants can also compromise the device’s biocompatibility, causing adverse reactions when in contact with human tissue. Moreover, residual contamination may interfere with mechanical operations, affect electronic signal transmissions, or degrade material properties over time.

Post-production cleaning involves keeping surface cleanliness and ensuring that all internal and external components are free from residues that could affect the device’s longevity and reliability. Ensuring surface and internal part cleanliness is essential in critical applications, such as implants, surgical instruments, and diagnostic equipment, where even trace contaminants can have significant consequences.

Effective Cleaning Methods for Medical Devices

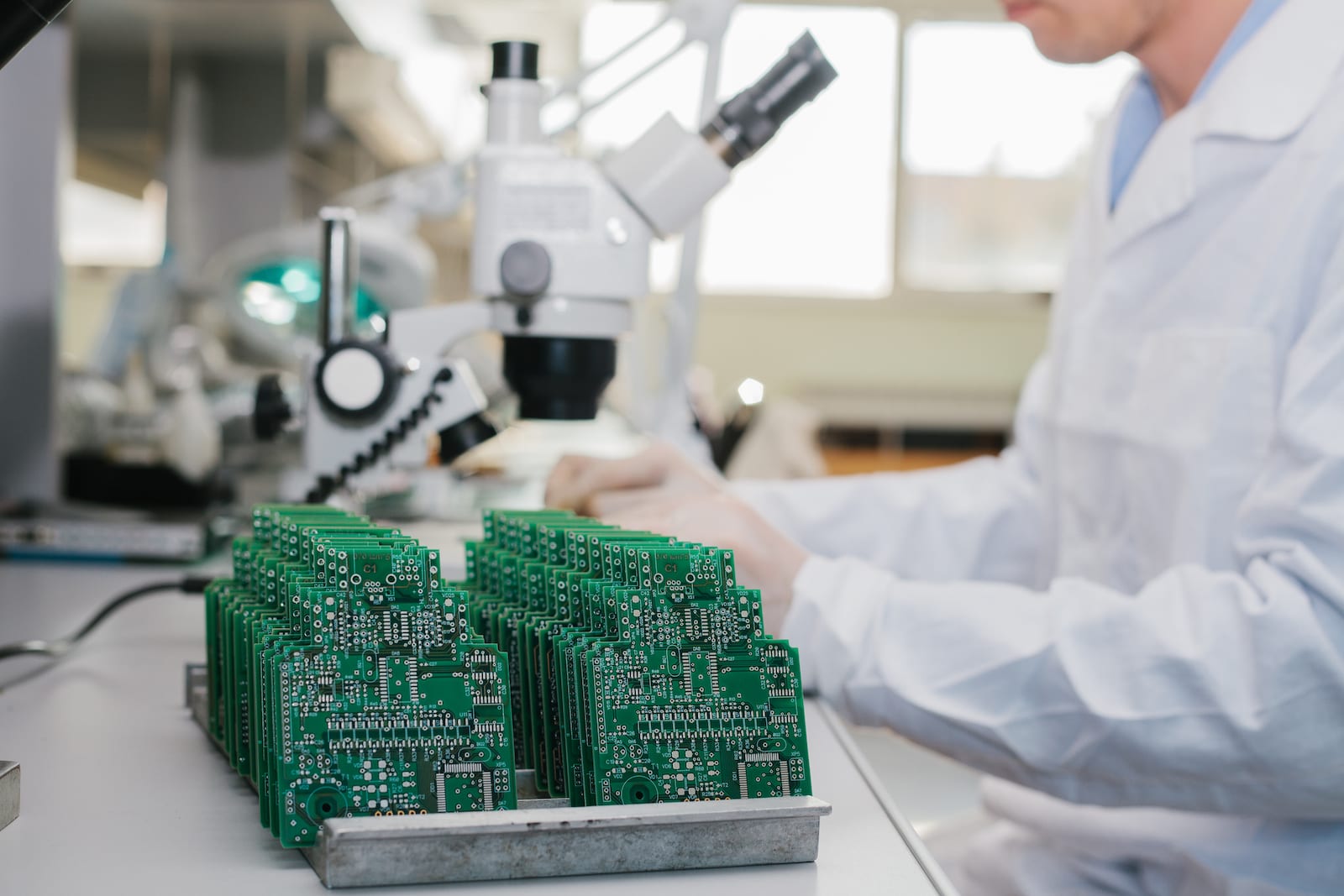

Residue testing is a vital part of the validation process. (Credit: MicroCare)

Selecting the right cleaning method is pivotal to achieving the desired cleanliness level without compromising the device’s integrity. The choice often depends on factors such as the device’s material composition, design complexity, and the type of contaminants present.

Manual Cleaning. This method uses degreasers or flux removers applied with wipes, brushes, or swabs. It’s particularly effective for small production batches or intricate components. Skilled technicians can target hard-to-reach areas and inspect devices in real time, ensuring thorough cleaning. Manual cleaning also allows for greater flexibility in addressing complex shapes and delicate parts, as technicians can adjust techniques based on specific device requirements. However, precision is needed to prevent surface damage or incomplete residue removal, and it is also very reliant on the technician’s skill.

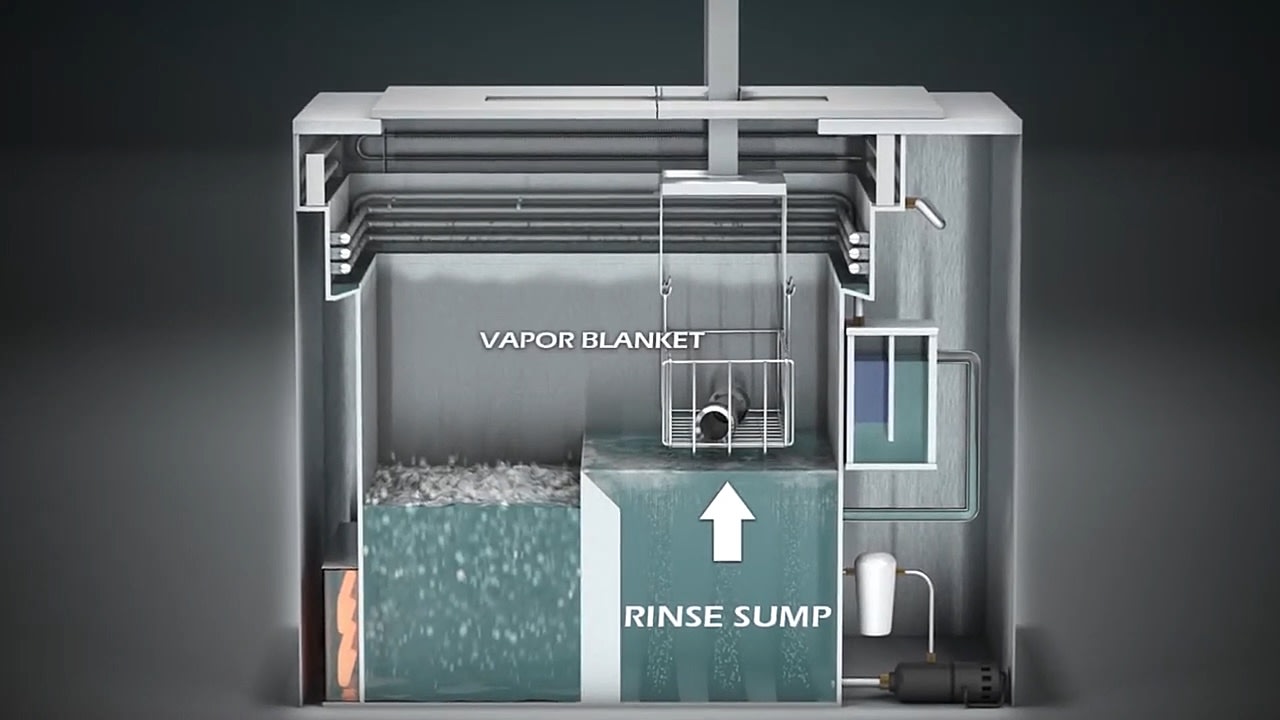

Vapor degreasing reduces the need for manual intervention, enhancing process repeatability and reliability and reducing labor costs. (Credit: MicroCare)

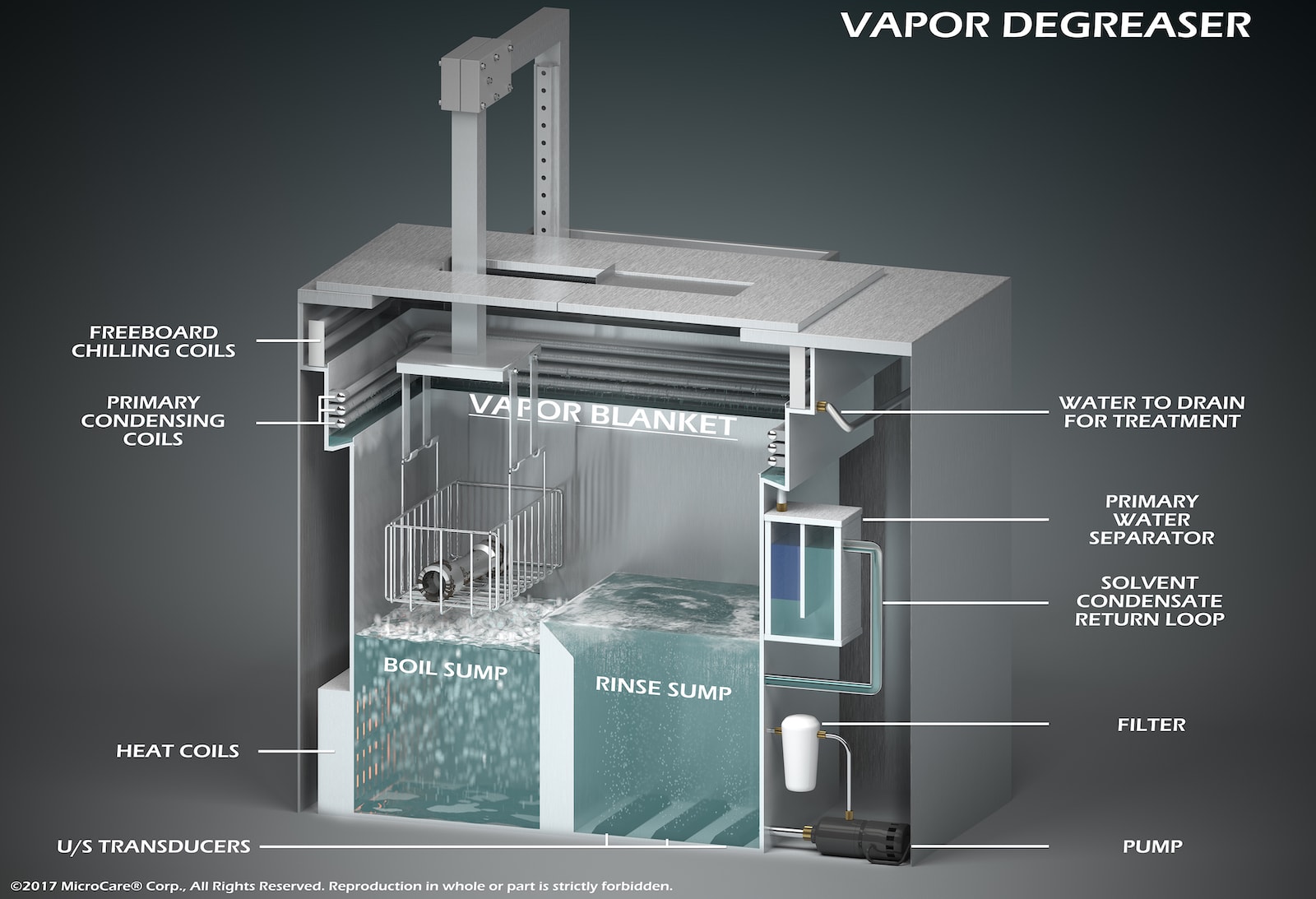

Vapor Degreasing. An automated process that uses vaporized solvents to dissolve and remove contaminants efficiently. Ideal for complex geometries, delicate parts, and multi-material assemblies, vapor degreasing delivers consistent results while minimizing the risk of mechanical damage. The process involves immersing parts in solvent vapors that condense on the cooler part surfaces, effectively dissolving contaminants. Vapor degreasing supports solvent reuse and recovery, making it a cost-effective and environmentally friendly choice for high-volume production. Additionally, vapor degreasing reduces the need for manual intervention, enhancing process repeatability, reliability, and reducing labor costs.

Choosing the Right Cleaning Fluids

Watch the video to learn how vapor degreasing can be used to thoroughly clean and dry precision parts safely, cost-effectively, and environmentally friendly.

The choice of cleaning fluids is important to both the effectiveness of the cleaning process and the safety of the medical device. Compatibility with the device’s material is critical, as certain fluids can cause degradation, discoloration, or other forms of damage. For example, strong cleaning fluids may be suitable for metal parts but could damage plastics.

Equally important is identifying the specific contaminants to be removed, such as oils, greases, or flux residues, which guides the choice of cleaning fluid. It must effectively dissolve or dislodge these contaminants without leaving harmful residues that could compromise device performance or patient safety.

Regulatory compliance also plays a significant role in fluid choice. Cleaning fluids must meet standards such as FDA regulations and ISO 13485 requirements. Manufacturers should ensure that chosen fluids do not leave toxic residues and support biocompatibility standards.

Environmental considerations are increasingly influential, with a growing emphasis on eco-friendly cleaning solutions that minimize environmental impact while keeping high performance. Innovations in cleaning technology have led to the development of more sustainable cleaning fluids and energy-efficient processes.

Ensuring Residue-Free Cleaning

Thorough cleaning processes aim to eliminate not just visible contaminants but also microscopic residues that could affect device performance. Ensuring that cleaning fluids do not leave harmful residues involves carefully selecting fluids and cleaning techniques.

Residue analysis is a vital part of the validation process. It involves testing cleaned devices to confirm that any remaining substances are within safe and acceptable limits. This analysis may include visual inspections, residue testing, and toxicological evaluations as outlined in ISO 10993. Regular monitoring and validation help support consistent cleaning efficacy across production batches.

Validation of Cleaning Processes

Validation is a key element of effective post-production cleaning. It provides documented evidence that the cleaning process consistently achieves the required level of cleanliness. Key validation activities include:

Visual Inspection: Identifying visible residues or contaminants.
Residue Testing: Measuring residual chemicals or particles.
Bioburden Analysis: Assessing microbial contamination levels.
Endotoxin Testing: Detecting pyrogenic substances that could cause adverse reactions.

These validation activities are essential for ensuring that cleaning processes meet regulatory standards and contribute to continuous improvement efforts in manufacturing.

Documentation and Traceability

Maintaining comprehensive documentation of cleaning processes and results is crucial for regulatory compliance and quality assurance. Modern documentation systems incorporate electronic record-keeping and data analysis capabilities to help trending analysis and process optimization. Manufacturing facilities must set up clear protocols for document control and record retention, ensuring that cleaning process documentation is readily available for regulatory inspections and internal quality audits.

Navigating Regulatory Requirements

Medical device manufacturers work within a stringent regulatory landscape that governs all aspects of production, including cleaning. Some of the key regulations include:

FDA Current Good Manufacturing Practices (CGMPs): Establishes quality system requirements in the United States.
ISO 13485: An international standard for quality management systems specific to medical devices.
European Union Medical Device Regulation (MDR): Governs safety and performance requirements within the European Union.

These regulations mandate rigorous validation, documentation, and continuous monitoring of cleaning processes to ensure devices are safe and effective for their intended use.

Scaling Up Cleaning Processes

As production volumes increase, scaling up cleaning processes presents unique challenges. Maintaining consistency, quality, and regulatory compliance becomes more complex. Standardizing procedures, implementing automated cleaning systems, and validating their effectiveness across different production scales are critical.

Investments in advanced equipment and process optimization are often necessary to support large-scale manufacturing. Additionally, robust quality management systems help ensure that cleaning processes stay effective as production demands grow.

Managing Supplier Quality

Supplier quality management is integral to the overall success of post-production cleaning. This involves rigorous supplier qualification, regular audits, and clear quality agreements. Ensuring that incoming materials meet stringent specifications reduces the risk of contamination and supports consistent cleaning outcomes.

Collaborating with dependable cleaning fluid suppliers who understand the intricacies of medical device manufacturing can provide valuable insights and support. Their expertise helps manufacturers navigate material compatibility issues, regulatory requirements, and process optimization challenges.

Achieving Consistent Cleanliness in Medical Manufacturing

Successful post-production cleaning in medical device manufacturing requires a comprehensive approach that addresses multiple challenges simultaneously. Manufacturers can develop robust processes that ensure consistent quality and regulatory compliance by carefully considering cleaning method choice, scaling strategies, and validation requirements. The key to meeting these challenges lies in combining thorough planning, right technology choice, and rigorous process control with a commitment to continuous improvement and innovation.

This article was written by Elizabeth Norwood, Senior Chemist at MicroCare, LLC, New Britain, CT. Norwood researches, develops, and tests cleaning-related products. For more information, visit here .
