Pulsed Fiber Laser Welding System
Amada Miyachi America, Monrovia, CA, has added a new pulsed fiber laser welding system to its LMF series of lasers. The 70-W LMF70-HP is ideal for welding small components and thin metals up to 0.01-in. (0.25 mm) thick. It is particularly well suited for welding thin wires such as thermocouples and guidewires. In addition to welding, the unit is capable of engraving, deep engraving, metal cutting, and welding plastic. It is also suitable for general-purpose high-speed marking. It is offered with galvo scanning beam delivery and controller or integrated into the LMWS platform, a CDRH Class 1 laser workstation.
For Free Info Visit: Here

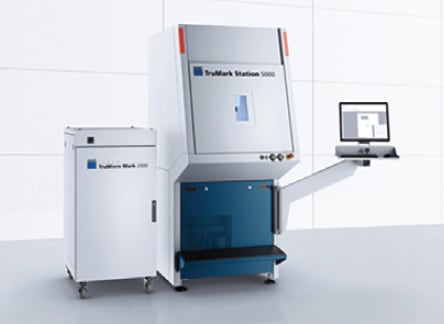

Laser Marking Equipment
Trumpf, Farmington, CT, offers a complete turnkey solution for an ultrashort pulse laser in a marking station. The TruMicro Mark 2000 laser’s ultrashort pulses make it possible to mark metals with a particularly deep black color and with virtually no heataffected zone. This cold processing enables fabricators to mark the material in a way that will always remain corrosion free, saving both time and money traditionally required for refinishing. In addition, the ultrashort pulses enable it to mark chromed plastic surfaces without removing any plastic. Several control loops, in conjunction with a patented fast external modulator, guarantee maximum process stability and the set pulse parameters for each individual pulse.
For Free Info Visit: Here

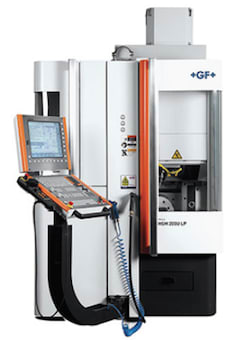

Milling Machine
GF Machining Solutions, Lincolnshire, IL, offers a linear performance milling machine designed for high-performance medical machining applications. Available in threeand five-axis versions, the Mikron HSM 200U LP is particularly suitable for machining small, complex components, including medical implants and other highly detailed parts. It can produce workpieces via true five-axis simultaneous high-speed machining. It features linear motor technology in the main machine axes and optimized direct-drive motors for the B and C axes that result in high precision and part surface finishes as fine as Ra 0.05 μm.
For Free Info Visit: Here

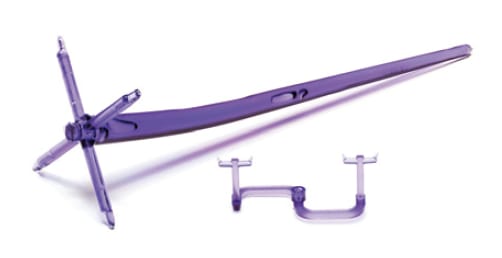

Bioabsorbable Micro Molding
MTD Micro Molding, Charlton, MA, offers bioabsorbable micro molding for medical devices. According to the company, successful bioabsorbable molding is attributable to six key factors: runner optimization, robust validation, in-house testing, minimal and consistent IV loss, controlled handling and packaging, and customized and specialized equipment, including simulated automation custom end-of-arm tooling.
For Free Info Visit: Here
High-Torque Retention Knob
A high-torque retention knob from JM Performance Products, Fairport Harbor, OH, prevents toolholder deformation, a common problem in milling centers. Retention knobs can present critical productivity issues for manufacturers due to toolholder expansion. The high-torque knob addresses this problem by maximizing the length of the knob to fit the toolholder. As a result, all thread engagement occurs in a region of the toolholder where the diameter is large and where there is correspondingly more material to resist deformation. When properly installed with a retention knob socket and torque wrench, the patented design prevents toolholder deformation.
For Free Info Visit: Here

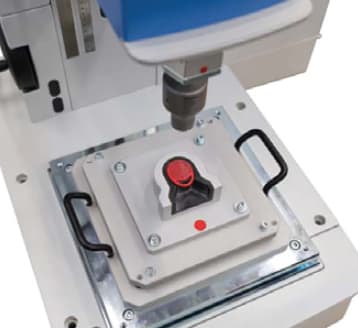

RFID-Coded Welding System
Herrmann Ultrasonics, Bartlett, IL, has integrated an RFID reader and an optical sensor into its ultrasonic welding system to ensure safety and security when changing welding tools during the production process. An RFID reader has been integrated into the tooling to guarantee that the right tool is installed for the production. The reader is built into the sonotrode as well as the fixture. The system automatically associates the correct parameter setting for parts to be welded with the installed tooling. The optical sensor verifies that the correct part in terms of shape and color has been placed into the fixture before each ultrasonic welding process.
For Free Info Visit: Here
Brake for Indexing Systems
Nexen Group, Vadnais Heights, MN, has introduced a spring-engaged, air-released, power-off brake designed to provide high torque for backlash-free holding and emergency stopping on indexers and positioning systems. The I-300’s high torque and short response time ensure the shortest possible stopping distance. The brake connects to the shaft with tapered, keyless locking devices. It is normally engaged until air pressure is applied to release it. The company’s patented braking element locks and holds the shaft in position without any displacement upon engagement or reversing of the load.
For Free Info Visit: Here
Torque Tools
Mountz, San Jose, CA, offers torque tools designed for ensuring accuracy and precision. Controlling torque is essential for companies to ensure quality, safety, and reliability of products. Failure of a fastener that isn’t properly tightened can lead to catastrophic or latent failures. Fasteners that are insufficiently fastened can vibrate loose, and excessive torque can strip threaded fasteners. The tools comply with ISO 6789:2003.
For Free Info Visit: Here

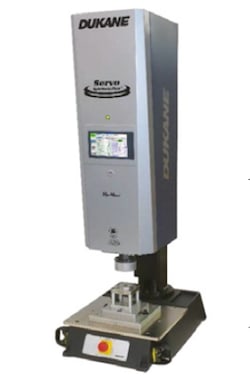

Spin Welder
Dukane, St. Charles, IL, has introduced the next generation of spin welders for welding plastic assemblies with circular weld joints. The ServoWeldTM Plus with Melt-Match® technology is an all-electric press system using two servomotors to provide precise control and accuracy. It features a technologically advanced, touch-enabled human machine interface with an intuitive menu structure to control and monitor the welding process. The spin axis has an orientation resolution of 0.1 degree, while the vertical axis has a positioning resolution of 0.01 mm (0.0004 in.) and a force capacity of 2000 N (450 lb).
For Free Info Visit: Here

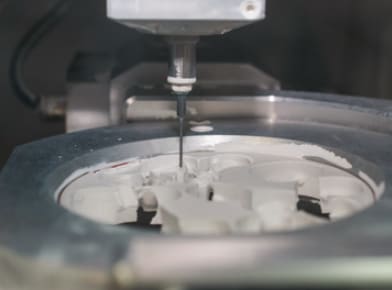

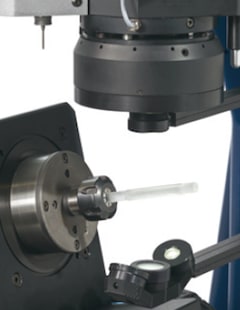

Stent Measuring Machine
Werth, Old Saybrook, CT, has announced a new machine for measuring life-saving stents. The StentCheck® is the company’s newest multisensor coordinate measuring machine. To meet the precision requirements of stent measurement, the combined optical-tactile coordinate measuring machine is equipped with special illumination for transmitted light and a high-precision rotary/tilt axis with runout of less than 0. 5 μm. The ma - chine can measure any stent, regardless of the strut thickness in multiple areas, the radii of rounded end areas, angle of strut structure, stent length, material wall thickness, eyelets, and end flute angles. Software algorithms prevent false measurements, such as those caused by severely bent struts.
For Free Info Visit: Here
Hot Runner Systems
Hot runner systems are available from Synventive, Peabody, MA, for sequential molding of large parts. The SVG+ is designed so that no cooling lines or plates are required. The systems are easy to set up and troubleshoot. Monitoring and diagnostic tools are provided outside of the molding machine, resulting in less downtime, less scrap, and increased reliability. The hot runner systems are equipped with a new modular actuator design and patent pending SynCool3 technology, which provides cooling of the actuators without the need for separate cooling lines.
For Free Info Visit: Here
Laser Scanning Technology for Portable Absolute Arms
Hexagon Manufacturing Intelligence, North Kingstown, RI, offers laser scanning technology for the portable ROMER Absolute Arm with Integrated Scanner (SI) series. The innovative RS4 scanner includes new optics and electronics, increasing the scan rate nearly 60 percent over the previous model. The fully integrated scanner is optimized for measuring objects with challenging surfaces such as carbon fiber or machined steel. Accuracy of the scanning system is fully verifiable and traceable. The system is ideally suited for point-cloud inspection, product benchmarking, reverse engineering, rapid prototyping, virtual assembly, and CNC milling.
For Free Info Visit: Here

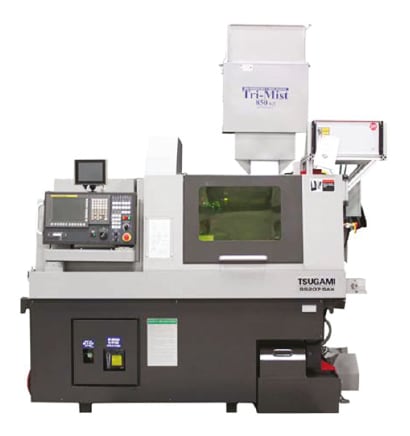

Swiss Turning Center
A high-performance turning center from Tsugami/Rem Sales, Windsor, CT, performs continuous live cutting using a servo-driven B axis. Designed for complex small parts, the Tsugami SS207-5AX Swiss type lathe with B axis combines Swiss style machining with laser cutting on one machine. The live tools mounted on the B axis (three front, three rear) machine in coordination with the C axis, enabling the machine to cut precise angles and sculpted contours. The swiveling B axis transforms this Swiss type lathe into a multitasking turning center that can drill, tap, and end mill any angle.
For Free Info Visit: Here
Additive Manufacturing Support
Lucideon, Raleigh, NC, has joined with America Makes, the National Additive Manufacturing Innovation Institute, to offer the institute’s members testing, validation, and analysis of materials, components, and processes. Through this initiative, the company will offer expertise in metals, polymers, ceramics, and composites. It will use its expertise in technology development, R&D, and testing to support manufacturers throughout the additive manufacturing supply chain. America Makes is a collaborative partner in AM and 3DP technology research, discovery, creation, and innovation.
For Free Info Visit: Here
Laser Cleaning System
Fonon Corp., Orlando, FL, has incorporated Flexion™ technology into its CleanTech™ product line. Marketed under the Laser Photonics™ brand, CleanTech laser products are used for surface preparation and surface cleaning. The newly released systems offer a nonabrasive cleaning process that is safe and eco-friendly. The Flexion technology enables the system to remove surface materials in areas that are typically difficult to reach. A motion control stage operates in both x and y axes, allowing it to move in various directions and clean nested parts under the path of the trajectory beam path.
For Free Info Visit: Here
Part Marking Device and Kit
Roland DGA, Irvine, CA, has launched a new unique device identification (UDI) barcode impact printer with an optional direct part marking (DPM) kit. The METAZA MPX-95 with DPM kit was developed for use in medical environments for permanently marking scalpels, forceps, and other medical instruments. With its diamond stylus and powerful impact force, the printer can imprint on a wide variety of metals, including stainless steel, iron, titanium, platinum gold, silver, copper, nickel, and aluminum, quickly and with pinpoint accuracy. Imprinting individual medical instruments with a serial number, 2D symbol, or other markings enables management of those instruments, including stock availability, location, usage history, and maintenance records.
For Free Info Visit: Here

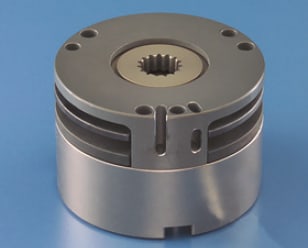

Motion Control Brake
Sepac, Elmira, NY, has released a spring engaged brake (SEB) for motion control. The SEB series is spring engaged and electromagnetically released for use dry or in oil, depending on the friction material used. Robust friction materials are available with higher torque density for both static and dynamic engagement. Multiple disc configurations are available when higher torque is needed in a smaller package. OEMs can also select custom coatings, enclosures, and materials for conditions as varied as water, oil, salt spray, high pressure, low/high temperature, and even a vacuum environment. The series offers custom voltages, as well as fully potted coils (standard or vacuum potted), dual coils, and step-down power designs.
For Free Info Visit: Here

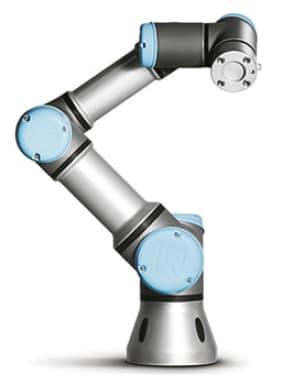

Tabletop Robot
Universal Robots, Ann Arbor, MI, has released a collaborative tabletop robot for light assembly tasks and automated workbench scenarios. The compact UR3 robot weighs only 24.3 lb (11 kg), but has a payload of 6.6 lb (3 kg), 360-degree rotation on all wrist joints, and infinite rotation on the end joint. The robot can also be used in a separate work station mounted on the table, picking, assembling, and placing parts in optimized production flows. Because of its compact form and easy programming, it’s easy to switch it between tasks to meet agile manufacturing needs. It has a default force sensing of 150 N but can be set to stop if it encounters a force as low as 50 N in its route.
For Free Info Visit: Here

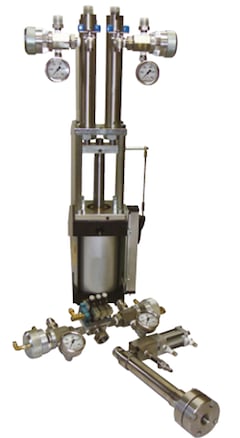

LSR Equipment
Graco Advanced Fluid Dispense, North Canton, OH, has launched new barrel stack designs for its F-5 and F4- 55 two-component liquid silicone rubber (LSR) injection molding meter, mix, and dispense equipment. The updated barrel stacks are available in both multi-pass and single pass designs. The new stacks are easy to clean and assemble and have no tapered national pipe thread (NPT) threads. The new barrel stacks use plastic molded mixers, which stack upon each other. These mixers prevent the sidewalling problem that may occur with older stainless steel mixer designs caused by repeated removal and installation. The plastic mixer also does not suffer from installation damage due to a tight tolerance between the hosing and mixer. Greater clearance makes the new barrel stack easier to clean by reducing thread galling.
For Free Info Visit: Here

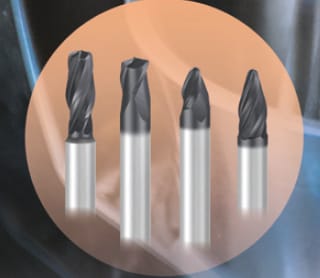

Segment End Mills
Emuge Corp., West Boylston, MA, has introduced new end mills designed to enable substantially more material removal with fewer passes in five-axis machining. The circle-segment cutters are ideal for machining turbine blades, impellers, and blisks, and for use in mold making applications. They feature unique forms with large radii in the cutting area of the mills, allowing a larger axial depth of cut during prefinishing and finishing operations. The solid-carbide end mills are offered in four geometries: barrel-shaped, oval form, taper form, and lens shape. Oval and taper form mills are ideal for curved shapes such as blades or straight-walled pockets, freely engaging more of the cutting edge. Barrel design mills provide highly effective flank milling to the sides of spiral grooves and similar applications, while lens shape mills are best for narrow channels or in lands on molds.
