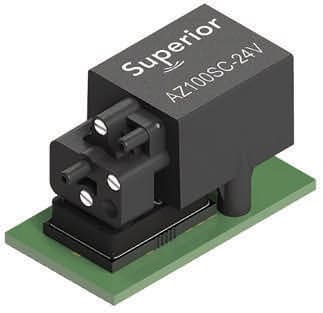

Auto Zero Valves

An auto-zero valve from Superior Sensor Technology, Los Gatos, CA, is specifically designed for applications requiring auto-zero calibration such as medical ventilators. The AZ100 mounts directly onto the sensor and connects to the pressure sensor ports without additional tubing. As a fully integrated valve housed in a single plastic enclosure, the valve streamlines manufacturing and reduces assembly costs. It exceeds 1 million cycles, offering exceptional reliability and ensuring long-term performance.
Visit Here

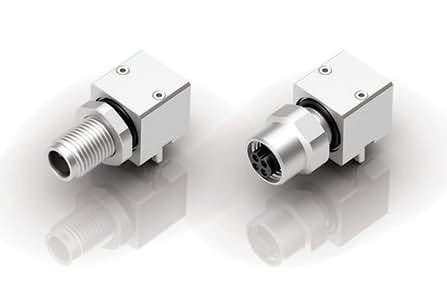

Panel-Mount Connectors

binder, Camarillo, CA, has added angled panel-mount connectors to its product line. The M5 connectors are engineered for applications needing compact, durable solutions. Barely visible to the naked eye are the spread positioning pins, which ensure optimal twist protection on the circuit board even before soldering. A recessed o-ring ensures a reliable seal with the housing. The o-ring is precisely pressed against the housing when the panel-mount connectors is connected, ensuring optimal sealing.
Visit Here

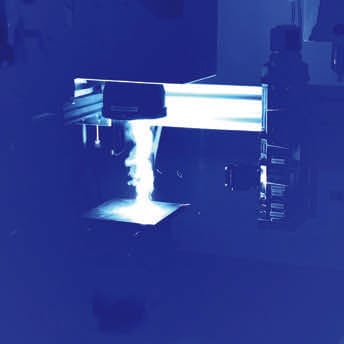

Blue Diode Laser Welding

AMADA WELD TECH, Monrovia, CA, has integrated blue laser technology into its suite of micro welding technologies for welding highly reflective materials, notably copper. Blue lasers operate at a wavelength of approximately 450 nm, resulting in more efficient energy utilization, reduced heat input, reduction of spatter, and enhanced precision in micro welding tasks. The blue laser systems offer power levels up to 1500 W, and with capabilities extending up 4000 W for industrial applications. Feasibility studies can be run in the company’s Western Technical Center in Monrovia. The technical center capability includes power levels up to 1500 W and spot sizes between 200 and 500 μm in diameter.
Visit Here

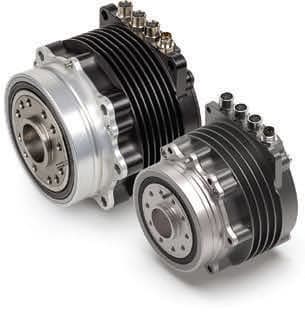

Advanced Actuator

maxon, Taunton, MA, has launched of a high-efficiency joint drive. The HEJ 70-48-50 actuator caters specifically to autonomous mobile robots operating in unstructured environments such as humanoids, quadrupeds, exoskeletons, or mobile manipulators. The actuator delivers a peak torque of 50 Nm and reaches speeds up to 28 rad/s while maintaining a mass just above 1 kg. Its compact design and high torque density make it ideal for mobile manipulation tasks, offering roboticists a powerful yet lightweight solution.
Visit Here

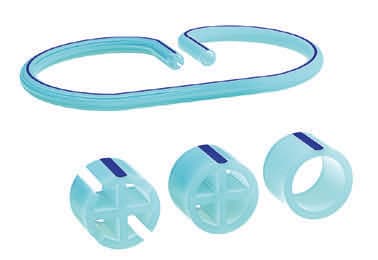

Reciprocating Head for Medical Tubing

A new reciprocating head for medical tubing is available from Guill Tool, West Warwick, RI. The traditional tip-and-die assembly is replaced with a linear reciprocating assembly that changes the tube’s profile within a given length. This process is repeated throughout a single extrusion run without interruptions. Cutting capability, in association with the extrusion speed, cuts the finished product to length. The head eliminates an entire assembly operation and eliminates in-process inventory. It eliminates a connecting piece and allows JIT production and products made-to-order.
Visit Here

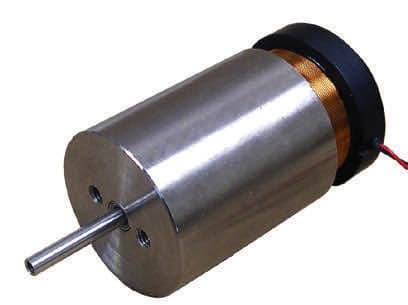

Linear Voice Coil Servo Motor

Moticont, Van Nuys, CA, has released a new linear servo motor in its GVCM-032 Series. The GVCM-032-038-02M with a 25.4 mm (1.00 in.) stroke is a compact linear servo motor with built-in shaft and bearing and is just 31.8 mm (1.250 in.) in diameter. The combined length with the coil end is 47.63 mm (1.875 in.) long, and in the fully extended position, extends 28.6 mm (1.125 in.) beyond the face of the housing. The shaft has an M2.2X0.45 × 0.20 thread, and the housing and coil ends have two M3.5X0.6 0.20 mounting holes on a 12.7 mm (0.500 in) bolt circle for easy integration into new or existing applications.
Visit Here
AI-Powered Document Summarizer

MasterControl, Salt Lake City, UT, has launched a beta program for its AI-powered Document Summarizer. As the third tool released in MasterControl’s GxPAssist AI suite of generative artificial intelligence applications, the program is designed to help standardize processes and streamline these tasks, helping users save time by instantly generating succinct summaries, descriptions, keywords, and change summaries while maintaining compliance and consistency across documents and revisions. It seamlessly integrates into internal processes such as document management. The GxPAssist AI suite is built on the company’s secure platform.
Visit Here

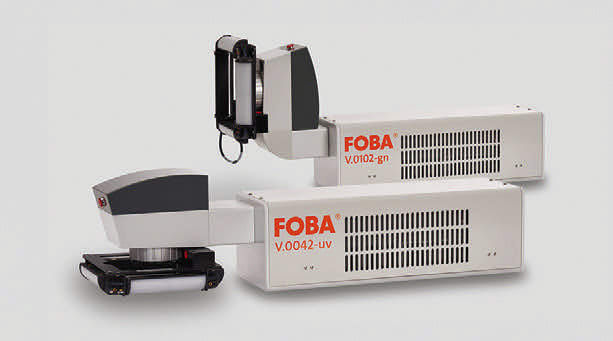

Laser Marking Systems

A laser marking system from FOBA, Selmsdorf, Germany, is designed to help companies reduce their environmental footprint while producing high-quality, ecofriendly marks on various materials. The V-Series integrates seamlessly into existing production lines with its compact design and flexible connectivity options, enabling quick replacement of cost-generating CIJ or tampon printing systems with minimal setup modifications. It requires low maintenance, needs no consumables, and features UV and green lasers that create precise, high-contrast markings on polymers (such as ABS, PET, HDPE, and polypropylene), colored plastics, ceramics, and metals.
Visit Here
