A body at sea is vulnerable to hypothermia, which often leads to loss of life. Hypothermia is caused by the differences between the core body temperature and the surrounding air and seawater temperatures. The greater the differences between the body core temperature and the sea temperature, the more rapidly the core body temperature will drop, and hypothermia can quickly set in. Heat loss is primarily caused by conduction of heat away from the body. Most cold immersion suits on the market are passive designs that only insulate the body against the cold, although some cold immersion suits use special materials such as paraffin to absorb heat and to radiate the heat back to the body. This new utility patent is an active design that relies on the lung’s role as an organic heat exchanger for providing deep body core heating of air. It is based on the fact that the greatest heat loss mechanism for insulated human body immersed in a cold water environment is due to heat loss through respiration.
This innovation successfully merges two existing technologies (cold immersion suit and existing valve technologies) to produce a new product that helps prevent against the onset of hypothermia at sea. During normal operations, a human maintains an approximate body temperature of [98.6°F (37°C)]. A mechanism was developed to recover the warm temperature from the body and reticulate it in a survival suit. The primary intention is to develop an encompassing systems design that can both easily and cost effectively be integrated in all existing currently manufactured cold water survival suits, and as such, it should be noted that the cold water immersion suit is only used as a framework or tool for laying out the required design elements.
At the heart of the suit is the Warm Air Recovery (WAR) system, which relies on a single, large Main Purge Valve (MPV) and secondary Purge Valves (PV) to operate. The main purge valve has a thin membrane, which is normally closed, and acts as a one-way check valve. When warm air is expelled from the lungs, it causes the main purge valve to open. Air forced from the MPV is dumped directly into the suit, thereby providing warmth to the torso, legs, and arms. A slight positive over-pressure in the suit causes warm waste air (or water if the suit is punctured) to be safely vented into the sea through large PVs located at the bottom of each arm and leg. The secondary purge valves act to prevent the buildup of large concentrations of CO2 gas and help guard against asphyxia. It is noted that the MPV causes the inhalation and exhalation cycles to be completely isolated from one another in the current suit design.
The main problem with the existing survival suit designs stems from cold sea water entering the suit through the gaps around the face opening in the hood and inflatable neck collar. Cold water entering the suit is caused by high wind and waves, a problem that is further exacerbated if the suit is submerged by a wave. The problem is easily solved using four integral components; an optically transparent full face shield, a nose/mouth mask, a Surface Air Valve (SAV), and a MPV.
Surface air valve integration with the suit is effected by affixing the SAV on the outward side of the face shield with a short tube extending through the face shield, which is directly plumbed to the air inlet port on the mask. WAR system integration with the suit is achieved by connecting the MPV to the air outlet port located at the bottom of the mask near the mouth.
A special type of SAV mechanism called a Pressure Release Valve (PRV) is employed in the current design. When the PRV is above the sea surface, the PRV is open allowing the lungs to inhale a fresh atmospheric air. The PRV automatically closes when submerged. This PRV has the advantage of being able to operate in any position, even while completely submerged upside down. The PRV is connected to a short tube extending through the face shield, and the open end of the tube is terminated with yet another purge valve located at the air inlet port on the mask. The PRV and PV combo results in a unique new type of valve called a Pressure Release/Purge valve (PR/P) that is designed to compensate for additional heat loss from the respiration cycle and only applies to situations when the PR/P valve is above the sea surface. The following two examples are cosidered:
Example (1) is a situation in which the air inlet port on the mask is connected to the PRV by a short tube extending through the face shield. Since the PRV is above the sea surface, the PRV is open and air can freely be drawn into the lungs. When warm air is exhaled from the lungs, it causes air to flow outward through the PRV causing the body to lose valuable heat during the exhalation cycle. Therefore, in this example, the inhalation and exhalation cycles are no longer separated from one another.
Example (2) is a situation in which the PR/P valve on the face shield is connected to the air inlet port on the mask and the MPV is connected to the air outlet port on the mask. Because the PR/P valve is above the sea surface the PR/P valve is open. The action of drawing air from the mask causes the PV located at the end of the PR/P valve to open and the MPV to close. When air is exhaled from the lungs into the mask, it causes the PV located on the end of the PR/P valve to close and warm exhaled air flowing into the mask forces the MPV to open, venting warm air directly into the suit. Thus the PR/P valve recovers any heat loss during the exhalation part of the respiration cycle.
The new technology represents a substantial improvement over existing state-of- the-art survival suit designs and should greatly extend the length of time a body can survive in hazardous cold-water conditions encountered in the North Atlantic, Bering Sea, and other cold regions of the world. This suit technology is intended to be utilized by the various branches of the U.S. Coast Guard, the U.S. Navy, the Merchant Marine, as well as the commercial fishing industry fleet.
This work was done by Joel Galofaro of Glenn Research Center.
Inquiries concerning rights for the commercial use of this invention should be addressed to
NASA Glenn Research Center
Innovative Partnerships Office
Attn: Steven Fedor
Mail Stop 4–8
21000 Brookpark Road
Cleveland
Ohio 44135.
LEW-18960-1

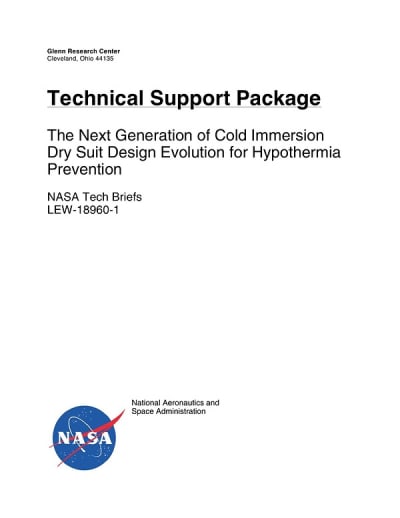

This Brief includes a Technical Support Package (TSP).
The Next Generation of Cold Immersion Dry Suit Design Evolution for Hypothermia Prevention
(reference LEW-18960-1-) is currently available for download from the TSP library.
Don't have an account?
Overview
The document titled "The Next Generation of Cold Immersion Dry Suit Design Evolution for Hypothermia Prevention" outlines an innovative approach to enhancing safety for individuals exposed to cold water environments. It presents a new design that integrates existing technologies from cold immersion suits and valve systems to create a product aimed at preventing hypothermia at sea.
Hypothermia poses a significant risk to individuals in cold water, as the body can lose heat rapidly, leading to a dangerous drop in core temperature. Traditional cold immersion suits primarily provide insulation but do not effectively address the issue of heat loss, which can result in catastrophic outcomes during prolonged exposure to cold water. The document emphasizes the need for a mechanism that not only insulates but also recirculates warm body temperature within the suit.
At the core of this innovative suit design is a warm body temperature recovery system that utilizes a single large valve to manage airflow and temperature regulation. This system is designed to isolate the inhalation and expiration cycles of respiration, ensuring that the suit maintains a stable internal environment. The integration of existing valve technologies into the suit design allows for improved functionality and efficiency.
The document includes references to various figures in the appendix that illustrate the airflow dynamics within the suit, including the inhalation and exhalation processes and the interaction with the warm air recovery (WAR) system. These illustrations provide a clearer understanding of how the suit operates and the benefits of its design.
Overall, the document serves as a technical support package under NASA's Commercial Technology Program, aiming to disseminate aerospace-related developments with broader technological and commercial applications. It highlights the potential of this new cold immersion dry suit to significantly enhance survival rates for individuals at sea by effectively managing body temperature and preventing hypothermia.
For further inquiries or assistance regarding this technology, the document provides contact information for the Glenn Technology Transfer Office, emphasizing NASA's commitment to innovation and safety in extreme environments.
