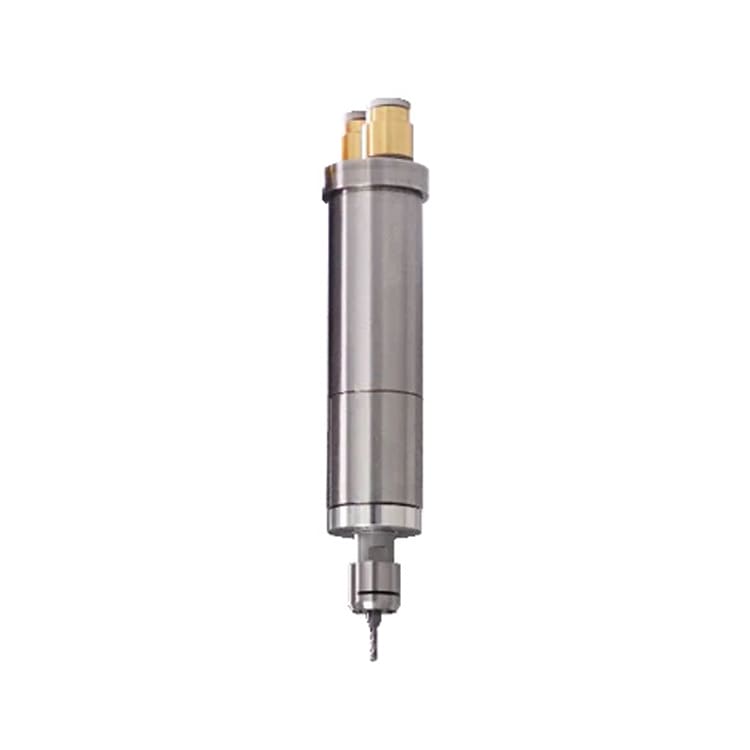

High-Speed Live Tools for Swiss Lathes
Air Turbine Technology Inc., Boca Raton, FL, has released tools with cutting speeds of 60,000 and 80,000 RPM for Swiss lathes. The double turbine-driven design of the 822CX and 825CX Air Turbine Live Tools ® maintains governed speed under load, enabling 6–10× faster production cycles while improving surface finish and reducing tool breakage. The compact and maintenance-free tools feature direct drive with only two moving parts, air-cooled bearings, and clean operation without lubrication, making them suitable for medical components. Installation takes less than five minutes, and the units fit most toolholders.
Visit Here
Precision Fluid Dispensing System
Nordson EFD, East Providence, RI, offers a jetting system designed for precision fluid applications in medical device assembly. The PICO Nexμs system integrates smart factory capabilities with IIoT connectivity for real-time monitoring and remote programming. The platform supports adhesives, lubricants, solder pastes, UV-cure materials, and biologics, delivering consistent micro-deposits in high-speed prototyping and production. The system is certified for PROFINET and Ethernet/IP.
Visit Here

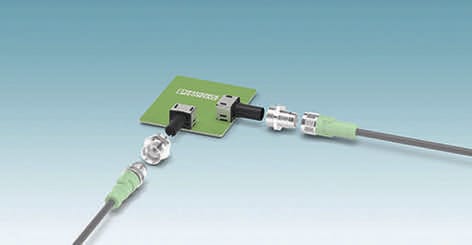

M12 PCB Connectors
Right-angle M12 connectors for through-hole reflow soldering are available from Phoenix Contact, Middletown, PA. Compatible with automated pick-and-place assembly, the connectors eliminate manual processing and provide more placement options in tight PCB layouts. Rated up to 250 V and 4 A, the A- and D-coded connectors are available in four-, five-, and eight-position versions. The two-piece design integrates with existing M12 THR housings for stable and efficient connections in industrial and medical electronics.
Visit Here

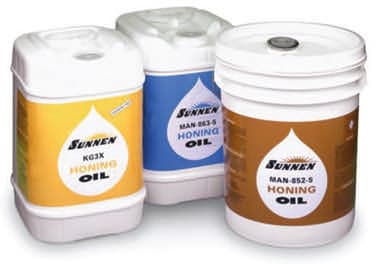

Low-Odor Honing Oil
Sunnen Products Company, St. Louis, MO, has introduced a honing oil for precision machining and medical device manufacturing. The MB-30LO is a low-odor, ultra-low VOC formulation (≤50 g/L) designed to improve workplace comfort while meeting ASTM1868-10 and SCAQMD standards for air quality. With a flash point above 110 °C and viscosity of 26 cSt, the oil provides safe handling, thermal stability, and excellent lubrication for honing, drilling, and tapping applications. The oil is drop-in compatible with MB-30 and other Sunnen oils, simplifying adoption in existing production lines.
Visit Here
