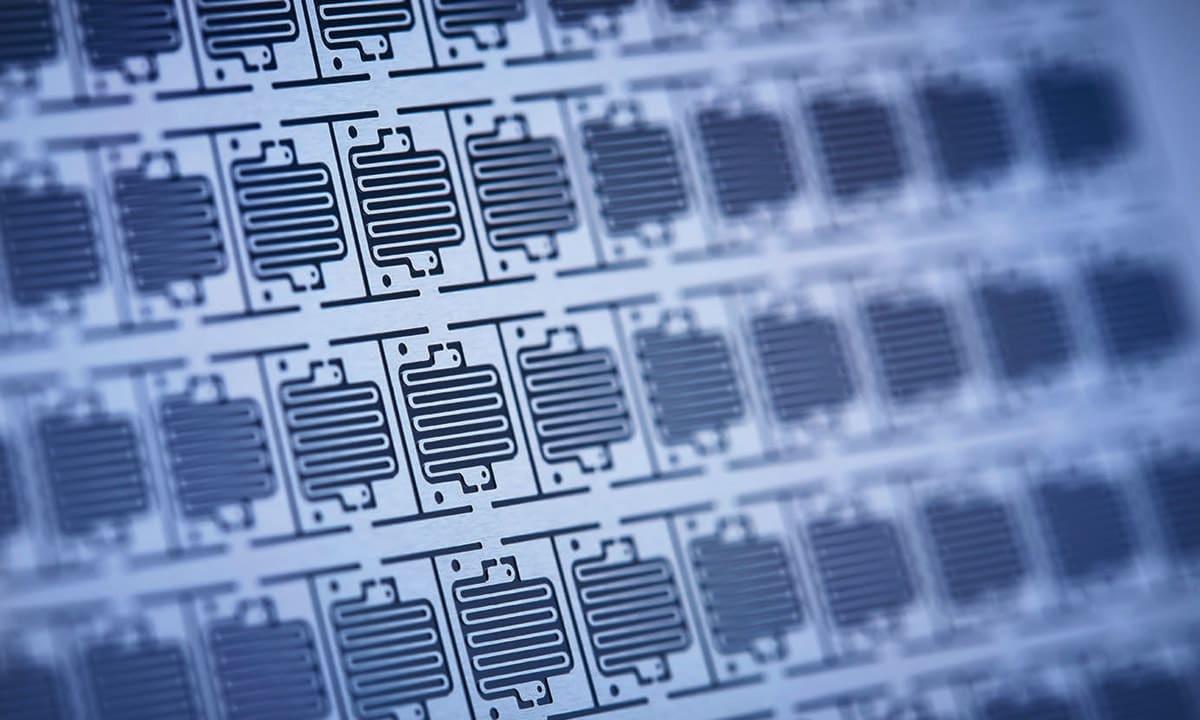

Micro heating elements made via photo chemical etching. (Credit: micrometal)

The photochemical etching (PCE) process is distinguished by its capacity to fabricate metal parts with unparalleled accuracy. This process sidesteps the typical stresses and deformations linked to conventional metal-working, like stamping or laser cutting, which can compromise material integrity. Such fidelity is crucial in the manufacture of components for thermal management systems, where material integrity and component precision are non-negotiable for ensuring effective heat creation or dissipation. PCE’s ability to craft parts with smooth, burr-free edges and exact dimensions means heat management components work more effectively, bolstering the reliability and extending the service life of micro electronic devices.

One of the most significant advantages of the PCE process is its extraordinary flexibility in handling a wide array of metals and alloys. This adaptability is crucial for the production of bespoke thermal management solutions that are specifically tailored to meet the unique requirements of various micro electronic devices. By accommodating different metals, PCE allows for the customization of components to align with distinct thermal properties and constraints of the devices they are designed for. This means that heat sinks, TIMs, and other critical components can be engineered to optimize heat dissipation for each specific application, from smartphones to high-powered computing systems. The precision afforded by PCE ensures that these customized solutions fit seamlessly into the devices, enhancing their performance and durability. The ability to quickly switch between materials and designs without the need for extensive retooling is a further benefit, reducing lead times and costs.

As portable microelectronic devices evolve, becoming more compact yet more powerful, the demand for proficient thermal management escalates. PCE meets this challenge by enabling the production of components that effectively manage heat, while conforming to the trend of device miniaturization. In this way, the PCE process supports the move towards sleeker electronic devices by allowing for the creation of small, complex components that fit into tight spaces without compromising on thermal management efficacy. This is essential as the electronics industry continues to place a premium on the compactness of devices. In addition, PCE’s design flexibility also ensures that thermal management solutions keep pace with the swift advancement in electronic technology, offering a scalable solution for future needs.

The PCE process presents substantial economic advantages as well, enhancing its attractiveness for manufacturing precise metal components for thermal management solutions. PCE’s efficiency comes from the fact that it is streamlined production process, which involves fewer steps. Also, the use of wear-free photo-tools extend the lifespan of production equipment, while the process’s ability to produce large volumes of parts ensures consistent quality without the cost of frequent tool replacement. PCE’s scalability makes it a versatile choice for industries seeking sustainable and cost-effective manufacturing solutions.

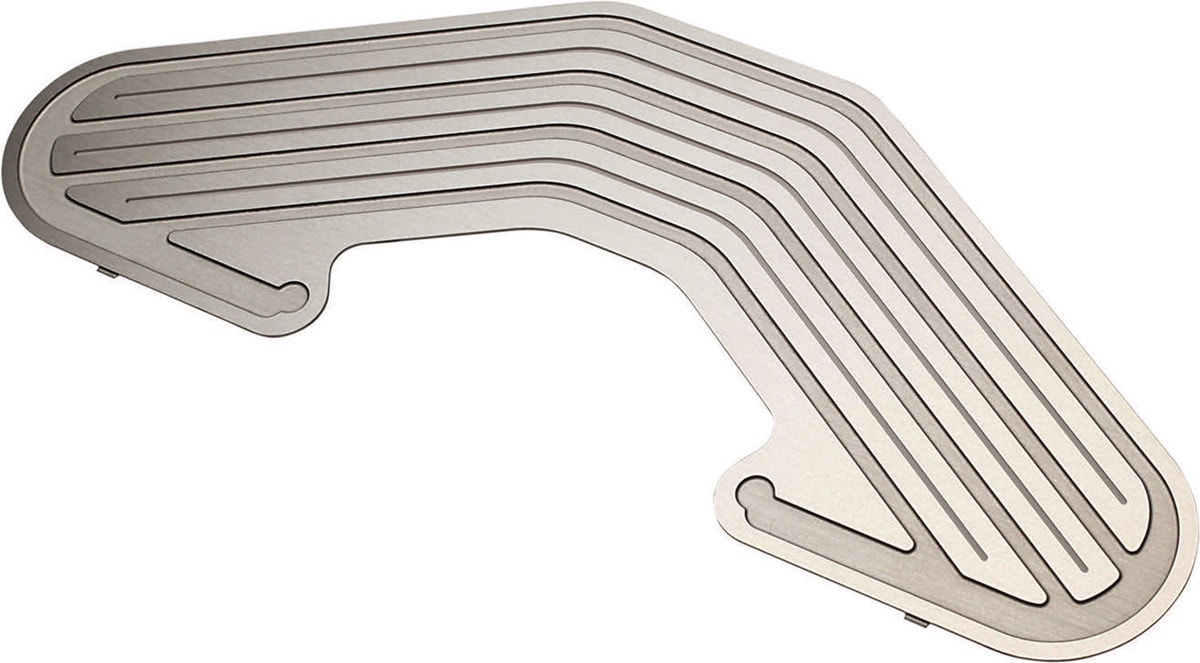

A cooling plate made via photochemical etching. (Credit: micrometal)

PCE’s influence extends beyond production — it catalyzes innovation within the microelectronics sector. As the industry relentlessly drives towards further miniaturization and enhanced performance, PCE provides the tools necessary to realize these ambitions. PCE not only facilitates the present requirements but also anticipates future demands, establishing itself as a pivotal technology in the advancement of micro electronic device design and functionality. Its role in the progression of microelectronics will likely continue to grow, underscoring the importance of adaptive and advanced manufacturing techniques in the tech landscape.

Micro Heating Management

Micro heating management involves the precise control and distribution of heat at a micro-scale level in various applications, utilizing components like micro heating elements (providing localized heat), heat exchangers (facilitating efficient heat transfer), and cooling plates (dissipating heat to maintain optimal operating temperatures). These components are essential in applications requiring fine thermal control, such as in micro electronic devices, medical equipment, and specialized industrial processes.

Manufacturing micro heating elements such as those used in PCR equipment present a set of intricate challenges, one of the major challenges being ensuring precision and uniformity in temperature distribution. Another issue is the selection and processing of suitable materials for micro heating elements because they typically need to be able to withstand high temperatures and thermal cycling without degrading. Additionally, as devices become more compact, their internal components, including heating elements, need to be smaller and more complex.

This miniaturization adds another layer of complexity to the manufacturing process, which traditional methods find challenging to meet. PCE offers a range of advantages in this context as it allows for the creation of components with high precision and uniformity, which is essential for consistent heat distribution in micro heating elements. It doesn’t induce stress in materials, helping to maintain their integrity and properties — a crucial factor for components that are exposed to high temperatures.

Cooling Plates

Manufacturing micro precision cooling plates is difficult due to the intricacy and accuracy of the cooling channels and the overall dimensional precision of the plates. One significant challenge is ensuring uniformity and precision in the micro-scale features critical for effective heat dissipation. Traditional machining methods might introduce mechanical stresses or deformities, compromising the efficiency of the cooling plates. Additionally, achieving the high level of detail necessary for micro channels, which are essential for efficient heat transfer, is often time-consuming and expensive using conventional methods. The complexity of design and the need for high precision in such small scales add to the manufacturing difficulties.

PCE is well-suited for producing micro precision cooling plates due to its ability to create intricate, detailed designs with high precision and consistency. This process allows for the fabrication of complex patterns and microstructures in metals, crucial for the effective performance of micro cooling systems. The etching process ensures uniformity in component thickness and avoids introducing stresses or deformities, vital for the functionality and longevity of cooling plates.


The PCE process efficiently manufactures precise metal parts for thermal management in micro electronic devices, ensuring high accuracy without stress or deformation. It handles diverse metals, creating tailored thermal solutions like heat sinks and TIMs for everything from smartphones to powerful computers. As devices shrink, PCE produces the necessary small, detailed parts, aiding device miniaturization. Economically, it cuts costs and lead times with a simplified process while enabling scalable production. PCE’s precision is vital in micro heating elements and cooling systems, allowing for complex, micro-precise components that bolster device performance and thermal management.
