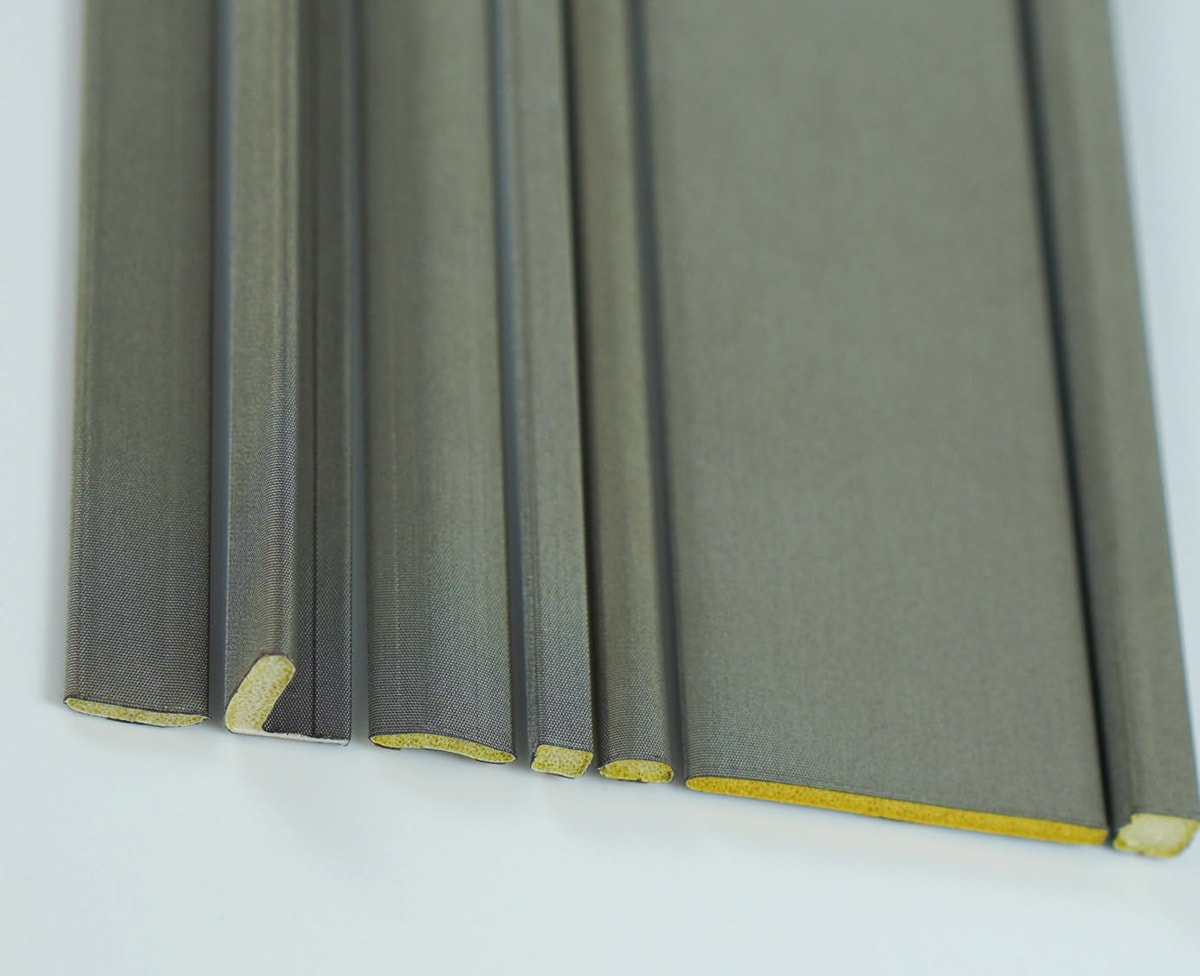

The substrate bonded to the core ensures self-termination when cut. (Credit: Tech Etch)

In the realm of medical technology, the quest for reliability and safety is unending. As medical devices become increasingly sophisticated, so too does the challenge of protecting these devices from electromagnetic interference (EMI). The concept of electromagnetic compatibility (EMC) has thus become a pivotal consideration for medical device manufacturers. At the heart of this concern lies high-attenuation shielding, a critical component in safeguarding sensitive medical equipment against the disruptive forces of EMI.

The article explores the role of high-attenuation shielding in ensuring EMC in medical devices, highlighting Tech Etch's 2400 and 2500 series fabric over foam as examples to effectively block EMI in sensitive medical electronics.

The Rising Demand for EMC in Medical Devices

The medical industry's dependence on electronic devices is at an all-time high. From diagnostic equipment to life-support systems, the functionality and reliability of these devices are paramount. However, the presence of numerous electronic devices in close proximity creates a complex electromagnetic environment. In such a landscape, the risk of EMI — which can lead to device malfunction, data corruption, and even patient harm — cannot be overstated.

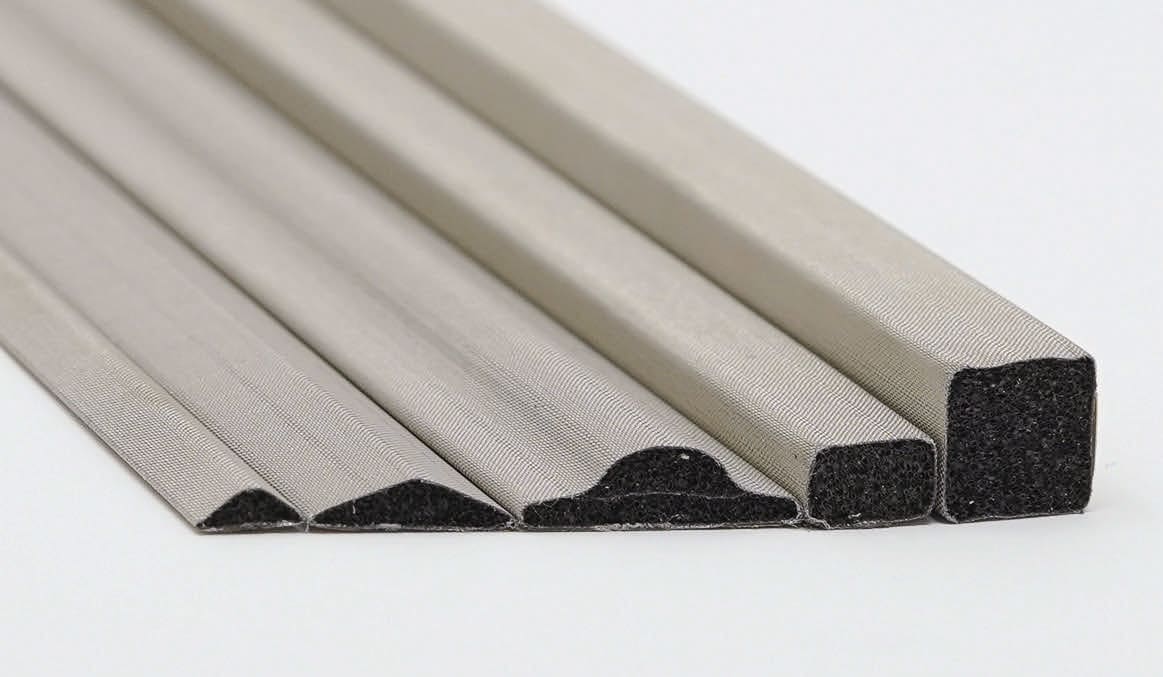

UL-94 V-0 rated 2400 series fabric over foam gaskets. (Credit: Tech Etch)

Many medical devices, especially diagnostic and imaging equipment, have become more sensitive and precise. As sensitivity increases, the susceptibility to EMI also rises. Maintaining accurate and reliable performance in the presence of other electronic devices and electromagnetic fields becomes crucial. The demand for effective EMC solutions is, therefore, not just a matter of compliance but of utmost necessity for patient safety.

High-Attenuation Shielding: A Necessity in Modern Medical Equipment

Medical devices that use sensitive electronic components must operate without interference to ensure patient safety, and so high-attenuation shielding emerges as the frontline defense against EMI. This technology is designed to absorb or reflect electromagnetic waves, thereby preventing interference with device operation.

The integrity of medical devices, their accuracy, and their reliability heavily depend on the effectiveness of this shielding. It's not just about meeting regulatory standards; it's about ensuring that every heartbeat monitored, every diagnostic image captured, and every life-support system deployed operates with unwavering precision.

Case Study: Tech Etch's 2400 and 2500 Series

In addressing the vital need for high-attenuation shielding, products like Tech Etch's 2400 and 2500 series fabric over foam offers the flexibility but also the support and durability required in the medical industry. Both the 2400 and 2500 series are UL-94 V-0 certified, indicating their adherence to the highest standards of fire safety. Moreover, the 2500 series provides a halogen-free option, aligning with the growing demand for environmentally friendly and sustainable materials in medical technology.

Their unique construction balances flexibility with robust shielding effectiveness, making them suitable for a range of medical applications where EMI protection is not just desirable but essential. The nickel-plated, RoHS-compliant metalized fabric-over-polyurethane gaskets offer optimal electrical characteristics. As such, they serve as an apt demonstration of the industry's ability to innovate in response to evolving EMC challenges.

Fabric-over-foam shielding is flexible, making it suitable for a variety of applications where rigid shielding materials might not be practical. This flexibility allows the material to conform to different shapes and contours within electronic devices.

The fabric can be designed to cover entire surfaces seamlessly, providing consistent and complete coverage. This helps in preventing electromagnetic waves from leaking in or out of the shielded area. The foam underneath the fabric provides structural support and durability. The foam can absorb shocks and vibrations, making the shielding material robust and long-lasting. Fabric-over-foam shielding is relatively easy to install during the manufacturing process. It can be integrated into medical electronics without significantly altering the design or any assembly procedures.

The Future of EMC Shielding in Medical Technology

Looking ahead, the medical industry's trajectory points toward an even greater integration of electronics in healthcare. This progression underscores the need for continuous innovation in EMC shielding solutions. Future developments might include advancements in materials science, leading to more efficient and adaptable shielding products. Technologies like the 2400 and 2500 series will likely evolve, adapting to new challenges and setting benchmarks in EMC protection for medical devices.

The quest for EMC in medical devices is a journey toward ensuring the utmost safety and reliability of life-saving technology. High-attenuation shielding stands as a guardian in this journey, a crucial component in the intricate dance of electronic medical devices. As we look to the future, the role of innovative shielding solutions becomes ever more critical in the pursuit of advancing medical technology for better patient care.
