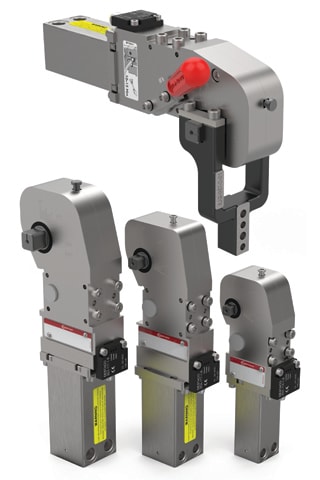

Power Clamps
Destaco, Auburn Hills, MI, has released a series of power clamps that feature a lightweight, enclosed aluminum housing and optimized mechanics. The 82L-3E series is available in three versions with a holding-torque range of 75–380 Nm and clamping torques from 25 to 120 Nm at 5 bar. In the event of a compressed-air outage during operation, the clamp can be unlocked manually. Additional flexibility is provided by an optional hand lever, which can be mounted on the clamp’s left or right side. The modular structure simplifies the procurement of spare parts and reduces storage requirements.
For Free Info Visit Here

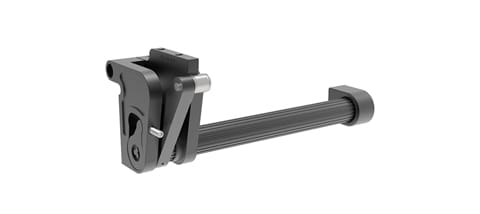

Counterbalance Hinge
A counterbalance hinge from Southco, Concordville, PA, neutralizes the weight of heavy panels and lids, providing reliable positioning control for a variety of applications. CB Counterbalance Hinges counteract the downward force of gravity and provide precise control when opening and closing heavy panels, enabling the panel to be lifted and lowered effortlessly. Their compact design allows mounting inside enclosures. The corrosion-resistant construction of the hinges withstands hot and cold environments. They provide consistent performance without maintenance or readjustment.
For Free Info Visit Here

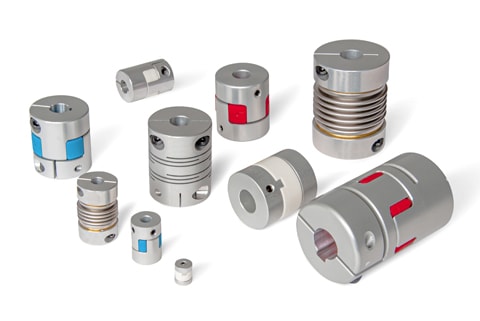

Couplings
JW Winco, New Berlin, WI, offers couplings that transmit rotary motions and torques from shaft to shaft. The couplings also even out tolerances and mechanical deflection that would otherwise result in damage to drive or measurement configurations. The recently added couplings of aluminum and stainless steel include designs for positive and non-positive connections. Multiple bore diameters and various stiffness and hardness levels of the coupling body as well as an optional keyway allow for customization. In general, all couplings compensate for offsets and misalignments, accommodate runout error and axial motion, and dampen vibrations and impacts to varying degrees.
For Free Info Visit Here

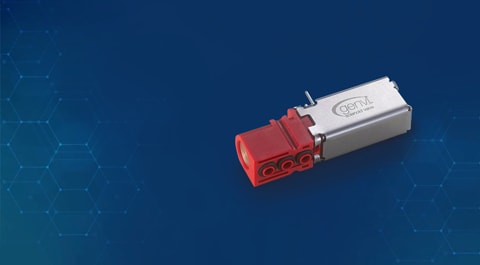

Solenoid Valve
Solenoid valves from The Lee Co., Westbrook, CT, offer high flow rates and low power consumption in a miniature, 10-mm package. The genvi® three-port valves are ideal for use in molecular diagnostics, oxygen delivery, compression therapy, ventilators, environmental analyzers, and breath analyzers. The valves are designed to provide fast response time and long cycle life.
