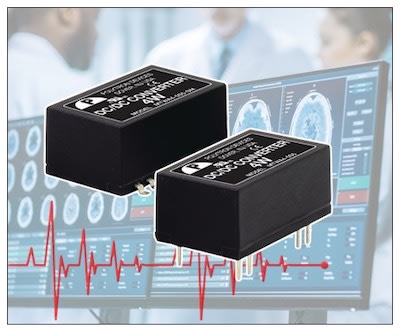

DC-DC Converters

New Yorker Electronics, Northvale, NJ, offers a family of 2- and 3.5-W DC-DC converters for medical applications from Polytron Devices. The 2:1 input range MTWA2 and MTWA4 2- converters feature a low leakage current of 2 μA and offer 5000 VAC input-to-output isolation and 2 × MOPP patient protection — the highest level according to IEC 60601-1 safety standards for electrical medical products. They also offer up to 82 percent efficiency, remote ON/OFF, and a high operating altitude of 5,000 m. Safeguards include overvoltage, short-circuit, and undervoltage protection with no minimum load requirement.

For Free Info Visit Here

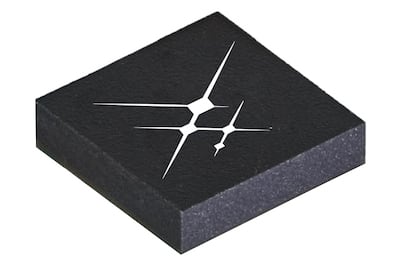

Power Amplifier

Skyworks, Woburn, MA, has introduced a high-efficiency power amplifier (PA) designed for enterprise small cell applications. The SKY66318-11 offers wide instantaneous bandwidth (100 MHz) and is fully input/output matched with high gain and efficiency. On-chip active biasing circuitry is also integrated to compensate for PA performance over temperature, voltage, and process variations. The device comes in a compact 5 × 5 mm package, operates from a single 5-V power supply, and is ideal for 4G LTE and 5G NR systems from 3300 to 3600 MHz. It is also part of major transceiver reference designs.

For Free Info Visit Here

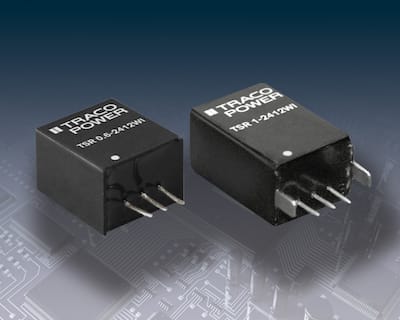

Point-of-Load Converters

Non-isolated point-of-load converters from Traco Power, San Jose, CA, are designed to standardize on one converter to support multiple applications and bus voltages. TSR 0.6WI and TSR 1WI nonisolated point-of-load converters in the industry standard SIP3 package commonly used by LMxx series linear regulators. Each series consists of seven single output models of 3.3/5/6.5/9/12/15/24 V out capable of 600 mA (TSR 0.6 WI) or 1,000 mA (TSR 1 WI). High efficiency of up to 94 percent enables an operating temperature range of –40 to +80 °C without heatsinking within an SIP3 package.

For Free Info Visit Here

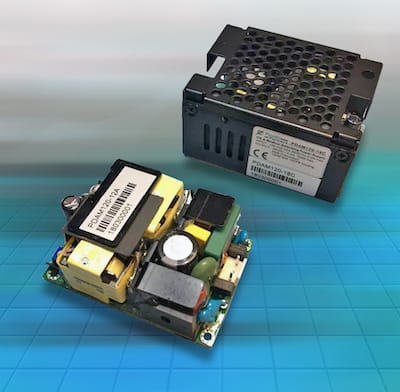

AC-DC Power Supplies

A series of 120 W ac/dc power supplies is available from Power Partners, Hudson, MA. The PDAM120 features either Class I or Class II input configurations and is designed for use in either medical or ITE applications. The industry standard 2 × 3-in. platform is available in three design options: open-frame, u-channel, and enclosed, with its focus on its high efficiency and high-power density of 15.27 W/in3. It is available in three single output models: 12, 24, and 48 VDC. Each unit features 90–264 VAC input voltage range, no-load power consumption <300 mW, operating temperature range of –30° to +70 °C (with derating), MTBF >250 K hours per MIL-HDBK-217F at full load/25 °C ambient, and weight of 6.4 oz. (typical).

For Free Info Visit Here
