Integrated Sensor
DunAn Sensing, San Jose, CA, has launched a new series of integrated pressure and temperature sensors. The TP series uses the company's proprietary DURAsense packaging and microelectromechanical systems (MEMS) pressure sensor integration strategy with a precision thermistor to provide highly accurate pressure and temperature outputs. At its core, the TP Series is a ceramic packaged module, or button, comprised of a ceramic substrate on which the MEMS piezoresistive pressure sensor and the thermistor are mounted. The button uses a media compatible rear-entry packaging strategy for media contact with the silicon sensor.
For Free Info Click Here
Oxygen Transmitter
Pewatron, Zurich, Switzerland, has developed an oxygen transmitter that can be screw mounted in process chambers and process installations. The ease of mounting, together with an industrial standard output signal, make the transmitter a preferred solution for process control of oxygen levels in ppm or in percent concentration levels. The heart of the FCXTR oxygen transmitter is the FCXU series (FCXUL, FCXUC, or FCXUWC) of oxygen sensors. The FCXTR transmitter is a fully integrated solution with a low-noise amplification circuit that translates the μA signal from the sensor into a 4.. .20 mA standard output signal. The transmitter has a high-precision heater controller built in.
For Free Info Click Here

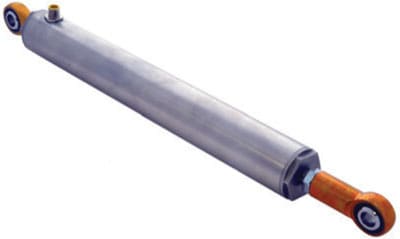

Linear Position Sensor
The Sensor Connection, Bloomfield Hills, MI, has released an inductive, contactless linear position sensor using LVIT Technology. The ILPS-45 linear position sensors are specifically designed for measuring applications requiring rugged devices. The series can withstand high vibration and severe shock. The series uses a proprietary inductive technology that allows it to replace traditional DC-LVDTs in most applications. Its simple coil design enables the sensor to be both shorter and more rugged than its DC-LVDT counterpart while operating over a wider temperature range.
For Free Info Click Here

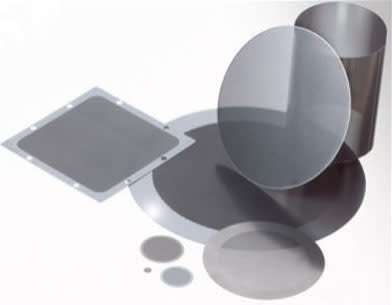

Fine Stainless Steel Screens
Fine screens made from stainless steel are manufactured by Tech-Etch Plymouth, MA, using photo etching technology enabling hole sizes from 0.003 in. up. The MicroEtch® screens feature a tighter tolerance on hole sizes and greater dimensional stability than woven wire mesh, making them ideal in applications requiring frequent cleaning or in devices where there is mechanical contact. Photo etching enables designers to specify a straight hole or a tapered hole, which facilitates liquid filtration and back flow cleaning. Unlike stamping, photo etching yields a burr-free product resulting in cleaner more efficient screens with greater material integrity. Unlike woven wire mesh screens, the fixed photo etched openings will not change through use.
For Free Info Click Here
Cybersecurity Chip
Microchip Technology, Chandler, AZ, has created a cybersecurity device to help designers enable trusted authentication of connected devices. The ATECC608A CryptoAuthentication™ device is a secure element that allows developers to add hardware-based security to their designs. The company has also established a Security Design Partner Program for connecting developers with third-party partners that can enhance and expedite secure designs.
For Free Info Click Here

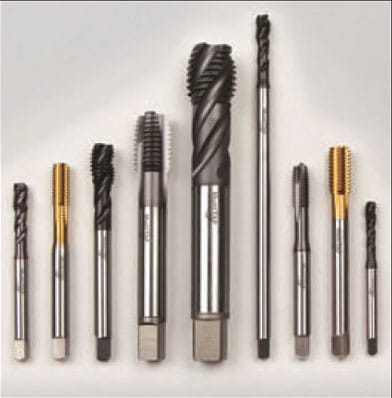

Tap Line
Emuge Corp., West Boyleston, MA, has expanded its line of high-performance taps, designed to cut a wide range of materials including carbon steel, steel alloys, stainless steel, aluminum, cast iron, copper, brass, and bronze. With 87 new SKU's, the MultiTAP line comprises both regular and extended length spiral point and spiral flute taps, as well as roll form taps. The line features an innovative geometric design as well as a special base material and surface treatment, allowing it to handle a wide range of materials and applications. This eliminates the need to stock numerous types of taps in the tool crib.
For Free Info Click Here
Spray Coating System
Ultrasonic Systems, Inc. (USI), Haverhill, MA, offers a high-speed, high-performance spray coating system. The PRISM-800 is a nozzle-less, ultrasonic spray technology delivers a thin, uniform, defect-free coating of a variety of materials. Delivering tight process control and a selectable finished film thickness in the 1-10 μm range, the system handles high-precision applications such as EMI shielding. The system is just one-tenth the capital cost of traditional sputtering equipment, occupies up to 80 percent less floor space, and is capable of processing up to 4x more semiconductor components per hour.
For Free Info Click Here

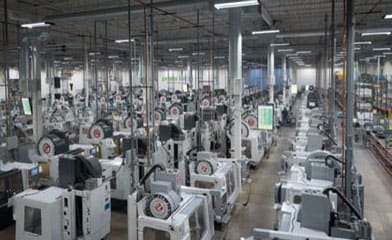

On-Demand Manufacturing
Proto Labs, Maple Plains, MN, has added a suite of capabilities designed specifically to address the on-demand manufacturing needs of the low-volume, high-mix product segment. The company has tailored its offerings to specifically address the needs of both prototyping and on-demand manufacturing. The new on-demand manufacturing service offers customers more competitive part pricing along with guaranteed lifetime mold maintenance and ownership. In addition, the company has opened its first metrology lab for enhanced inspection reporting on end-use production parts.
For Free Info Click Here

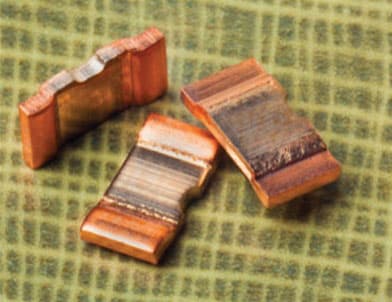

Power Shunt Current Sense Resistor
KOA Speer Electronics, Bradford, PA, has introduced a power shunt current sense resistor, featuring an 8-W power rating in a 2512 package. The PSL2 power shunt resistor offers ultra-low resistance suitable for large current sensing. In addition, the PSL2 has a broad operating temperature range from −65 to +175 °C. The PSL2 features a TCR of ±115 ppm/°C ~±175ppm/°C with a resistance tolerance of ±1 percent. These power shunts are offered in resistance values of 0.3 and 0.5 mΩ and are AECQ200 qualified. The PSL is ideal for automatic mounting and is suitable for reflow soldering.
For Free Info Click Here
Corona Treatment System
3DT, Germantown, WI, has released a new corona treatment system. The veratile PolyDyne Pro is designed to be a high-performance corona treatment system that improves the surface tension on numerous materials that are resistant to printing, adhesive, and coating processes. The system is engineered with multiple feedback devices for precise performance monitoring and adapts to many types of applications, including as 3D plastic parts. A universal input allows operation between 100 and 240 VAC, 50/60 Hz. The system can be programmed for various treatment modes.
For Free Info Click Here
Linear Displacement Sensors
Hoffmann + Krippner, Woodstock, GA, has added LVDT linear displacement sensors to its offerings. The new online inelta portfolio ranges from standard and miniature displacement sensors to sensors with integrated signal processing and external thread for easy installation. The IZAL Series miniature sensors, for example, are ideal for medical and military applications. The contactless, wear-free sensors for displacement and position detection achieve a linearity tolerance of ± 0.5 percent (optionally 0.25 percent) and are designed for the extremely small measuring ranges of 2, 5, and 10 mm.
