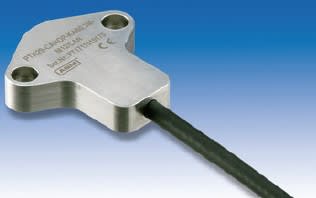

Dynamic Inclination Sensor
A dynamic inclination sensor is available from ASM Sensors, Elmhurst, IL. The POSITILT® PTK29 sensor compensates for dynamic influences to give correct values even when in motion. The sensor measures inclination between ±180° with one axis or ±60° with two axes. Utilizing gyro-compensated MEMS technology, the sensor position signal is instantaneous with no delays. It has a static linearity up to 0.05°. It can be mounted with selectable axis orientation. The sensor electronics are completely enclosed and protected by a hermetically sealed stainless-steel housing. For safety-critical applications, the sensor is available in a hermetically sealed stainless-steel housing with redundant output options.
For Free Info Click Here
ABS Material
INEOS Styrolution, Frankfurt, Germany, offers a glass-fiber-filled ABS suitable for medical applications. Novodur HD M203FC G3 is certified against the relevant parts of ISO 10993 for biocompatibility. According to the company, the new grade of this material delivers a significantly increased stiffness in combination with a high flowability, making it ideal for demanding applications like medical spikes and applications requiring structural stability. The material comes with the company’s Full Service HD package, which includes regulatory documents and up to 36 months notification of change (NOC).
For Free Info Click Here
Low-Power Microcontroller
Microchip Technology, Chandler, AZ, has released a family of low-power microcontroller devices. The eXtreme Low Power (XLP) microcontrollers feature large memory in small packages, providing ample battery life for space-constrained applications. With the inclusion of several connectivity options, core independent peripherals, and feature-rich development boards, the PIC32MM GPM MCUs are well suited for portable medical devices. The devices provide power-saving options, such as sleep modes with current consumption as low as 650 nA with random access memory (RAM) retention, to greatly extend battery life in portable applications. They are available with up to 256 KB of error correction code (ECC) flash and 32 KB of RAM, providing ample space for application code and communication stacks.
For Free Info Click Here

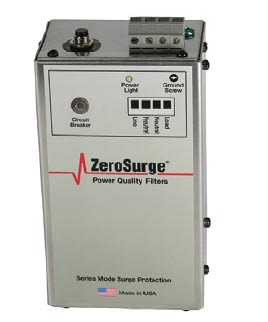

AC Facility Filter
Zero Surge, Frenchtown, NJ, has released a new AC facility filter. The FF2-5W-120-DIN facility filter is fully enclosed in a heavy-duty, magnetic shielded stainless-steel cabinet (IP 50). The 5-A, 120-V single-phase AC facility filter features a four-directional DIN adapter on the back that is spring loaded and easily glides and locks onto a 32–35 mm rail. It contains series mode wide voltage range technology that operates over a range of 85–175 V. The filter is certified to withstand a minimum of 10 years worst-case surge exposure without degradation or failure-filter technology. It also removes EMI/RFI noise disturbances from the power line.
For Free Info Click Here
Dilators
Qosina, Ronkonkoma, NY, offers a selection of dilators available with and without tear-away introducer sheaths in various lengths, sizes, materials, and colors. The tear-away introducer sheaths with dilators offer a zero clearance dilator-to-sheath transition and are equipped with a unique locking mechanism on the hub. The sheaths are constructed of Teflon ® for a smoother tear-away, or prescored polyethylene, which ensures consistent peel-away performance. Tear-away introducer sheaths and dilators with griplock hubs also have a zero clearance, a locking mechanism on the hub, and an ergonomically designed handle for easy removal. Valved tear-away introducer sheaths with dilators include tabs for more comfortable handling after device insertion, and the valve maintains a tight seal to help prevent air or fluid leakage.
For Free Info Click Here

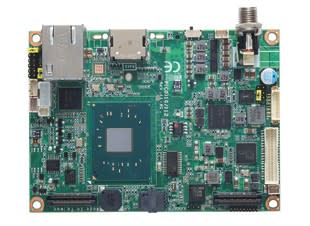

Single-Board Computer
Axiomtek, City of Industry, CA, has released a low-power Pico-ITX SBC. The PICO312, built with the Intel ® Pentium ® processor N4200 or Celeron ® processor N3350, is designed to address the needs of fanless operation under temperatures from –20° to +70 °C. The SBC supports Intel® Gen9 graphics engine for high-definition with dual display configurations through one LVDS and a choice of VGA or HDMI. It features a full-sized PCI Express Mini Card slot in support of mSATA and a pair of expansion connectors with additional signals, including one PCIe x1 lane, one LPC, one DDI, four USB 3.0 ports, one SMBus, and one HD audio. The embedded SBC is suitable for video-intensive applications.
For Free Info Click Here

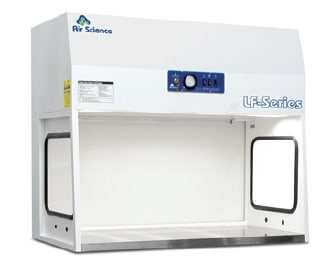

Laminar Flow Cabinets
Air Science, Fort Myers, FL, has released a series of high-efficiency laminar flow cabinets designed to protect equipment and other contents of the work zone from particulates, for applications sensitive to such contamination. The Purair horizontal cabinets are available in 2, 3, 4, 5, 6, and 8 ft widths in standard and extra-tall heights for general applications. The hoods are shipped fully assembled. The rear wall of vertical flow cabinets is perforated to reduce work surface turbulence by removing some of the airflow to the rear. Horizontal flow cabinets are designed with a lip on the rear of the work surface to protect the ULPA filter from spills. The high-capacity air-handling system delivers flow velocity of 0.35–0.45 m/s or 70–90 fpm.
For Free Info Click Here

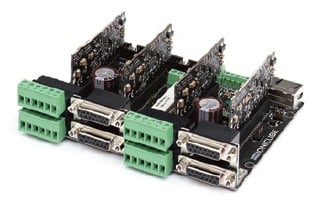

Miniature Servo Motor Drive
Granite Devices, Tampere, Finland, has released a new industrial servo motor drive. A The 700-W IONI provides snap-on installation and built-in SIL2 safety functions in a 70 × 37 × 7 mm form factor. An improved high dynamic range torque control allows the motor drive to connect a range of motor variants to a single drive type. Through trajectory buffering and distributed clock synchronization, it can perform multi-axis synchronous motion control out of a non-real-time host, such as Windows PC with a USB or Ethernet connection. This has been achieved by the means of hardware side. The drive connects directly to the fully open C/C++/C# programmable SimpleMotion bus as well as traditional digital pulse train and analog controllers.
For Free Info Click Here

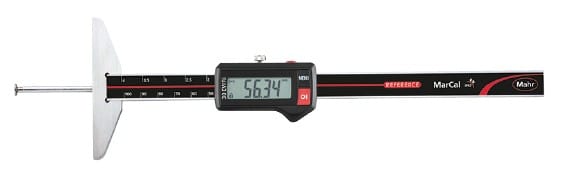

Wireless Gages
Mahr Federal, Providence, RI, has expanded its line of wireless gaging products to include a range of depth gaging products. The Digital Depth Gage MarCal 30 EWR, MarCal Specialty Caliper 16 EWR, and Universal Caliper 16 EWR all provide wireless data transmission of depth probe measurements. The Digital Depth Gage Series, MarCal 16 EWR, includes several gages designed for a variety of depth gaging tasks, including measuring groove widths and distance between grooves. All of its depth gage and caliper products offer IP67 resistance to dust, coolants, and lubricants, and are easy to use with a high-contrast digital display, locking screw, zero reset function, and immediate measurement readout. The 16 EWR Digital Caliper line offers precise depth measurement via an integrated depth rod with measuring ranges of 0–6 or 8 in. (0–150 or 200 mm) and resolution to 0.0005 in. (0.01 mm).
For Free Info Click Here
Spring-Engaged Tooth Brake
SEPAC, Elmira, NY, has designed an electromagnetic spring-engaged tooth (SETB) brake to deliver reliable, consistent operation within medical applications. The power-off brake offers large bore sizes, low backlash, and a high torque-to-size ratio. Backlash within the brake is less than 0.5°. Suitable for medical applications such as robotics, scanning equipment, and treatment tables, the brake features a high number of index positions, positive engagement, and a reliable coil. Custom voltages are available. The SETB is generally half the size of a friction-style brake with similar torque ratings.
For Free Info Click Here

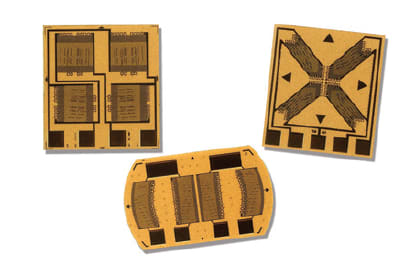

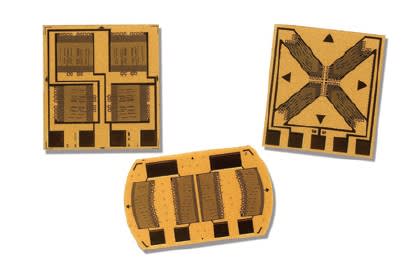

Strain Gages
Micro-Measurements, a Vishay Precision Group, Malvern, PA, has integrated its proprietary Advanced Sensors Technology into strain gage products. According to the company, Advanced Sensors Technology applies tangible specification and manufacturing process improvements. Further design improvements over traditional strain gage types include smaller and tighter grid-resistance tolerances, improved gage-to-gage repeatability, and enhanced measurement stability. The portfolio includes linear, shear, and circular gages, arranged as individual, half-bridge, and full-bridge configurations, in ranges from 350 Ω to 20 kΩ, with added flexibility in mounting options. The technology improves grid-to-grid tolerances and matching over traditional strain gage manufacturing techniques, enabling better sensor performance.
For Free Info Click Here

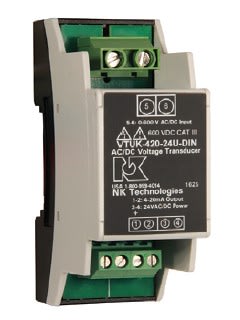

Transducer
NK Technologies, San Jose, CA, has introduced a high-performance true RMS transducer for sensing voltage in single, three-phase, or DC installations. Housed in a 35-mm wide DIN rail mounting enclosure, the VTU-DIN measures from 0-15 to 0-600 V with an industry standard output proportional to connected voltage in AC circuits with sinusoidal or nonsinusoidal (variable frequency) applications or DC circuits. Standard outputs make the VTU-DIN reliable and easy to use with existing controllers, data loggers, and SCADA equipment. It effectively detects a wide range of conditions that may cause damage to the motor and/or soft starter components.
For Free Info Click Here

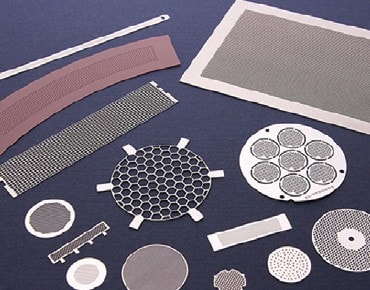

Photo-Etched Screens and Filters
Tech-Etch, Plymouth, MA, photo etches custom screens, filters, and filter supports for medical devices and other uses. Photo etching enables designers to specify a straight hole or a tapered hole, which facilitates liquid filtration and back flow cleaning. Hole sizes range from 0.003 in. up. Unlike stamping, photo etching yields a burr-free product, resulting in cleaner, more efficient screens with greater material integrity. Photo-etched screens feature a tighter tolerance on hole sizes and greater dimensional stability than woven wire mesh, making them ideal in applications requiring frequent cleaning or in devices where there is mechanical contact. Unlike woven wire mesh screens, the fixed photo-etched openings do not change through use. These tight tolerance screens are primarily produced from stainless steel, but other materials, including polyimide, are available.
For Free Info Click Here
Cloud CAM
MecSoft, Irvine, CA, has launched a beta program for its cloud-hosted, fully integrated CAM add-on application for Onshape’s 3D CAD system. VisualCAMc is a production-level CAM app that is fully operated in the cloud. It requires no downloads or installs to local hardware. The company’s computer-aided manufacturing (CAM) software is designed for custom manufacturing, rapid tooling, and mold making.
For Free Info Click Here
