Forging a New Path with Advances in Electro-Thermal Design

Siemens DISW, Plano, TX

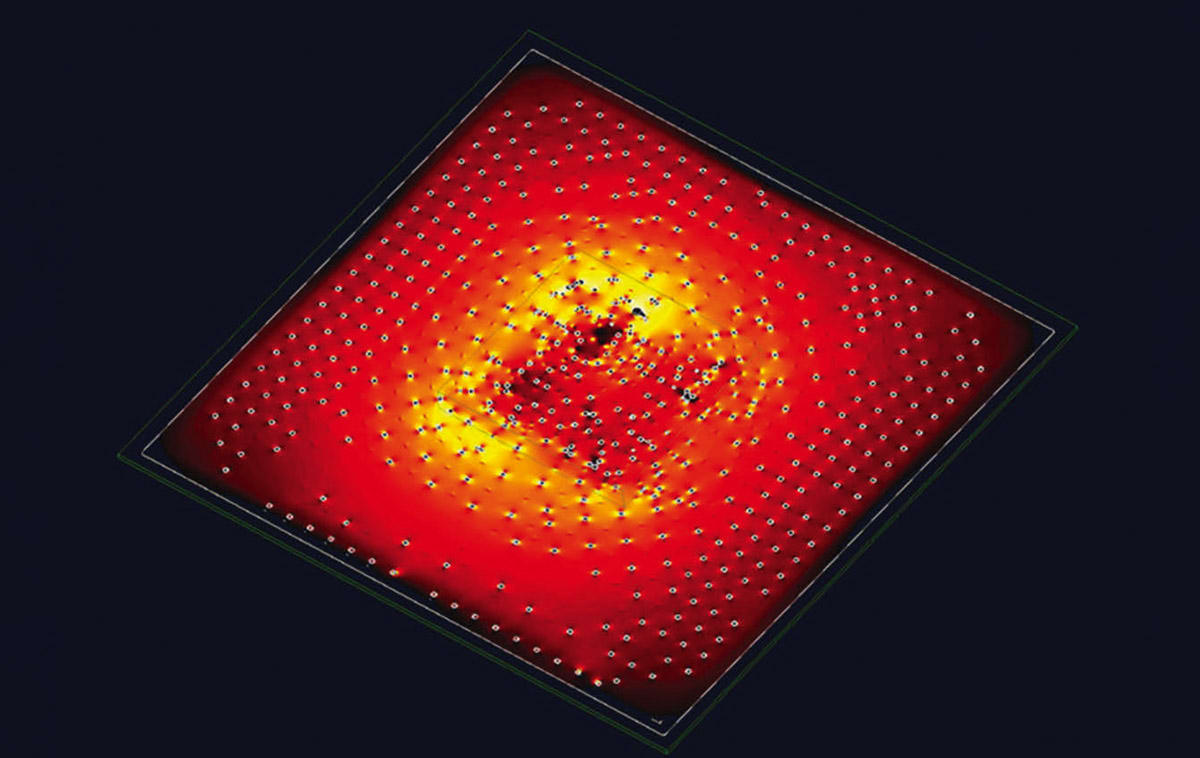

BCI-ROM captures accurate characteristics from a 3D thermal analysis, ready for use in a 1D circuit simulation. (Credit: Siemens)

To meet the functional requirements of a circuit under design, electronics engineers meticulously select components, evaluating them based on their electrical attributes, performance benchmarks, and rated capacities. The selected components must all work harmoniously together to provide the desired circuit characteristics.

To support the OEM design community, electronic component manufacturers have furnished models in the widely used SPICE format. In hand, these models empower customers to simulate their application circuits, thereby enhancing their comprehension of the intricacies encompassing the capabilities, the potential, and complex interplays of these parts within the broader system framework.

Emerging Challenges

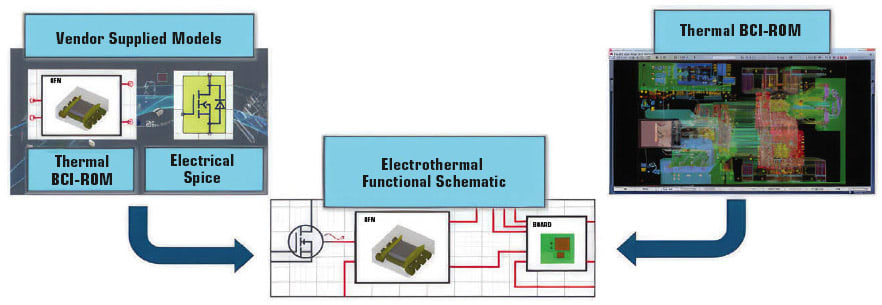

Fig. 1 - Functional schematic representation of electro-thermal behavior.

The dependency between component manufacturer (the SPICE model provider) and OEM (the SPICE model consumer) has worked for many decades; however, that relationship is showing significant signs of strain.

An increasing number of traditionally analog components are becoming more digital — adding programmability, state machines, and other advanced features that are beyond the capabilities of existing SPICE-based analog design tools.

Component manufacturers and their OEM customers in medical electronics increasingly battle thermal design issues during design-in. The interactions between electrical and thermal effects can lead to unexpected behaviors and failures if not properly managed. As a result, effective electro-thermal analysis, modeling, and design are becoming essential to ensure that the reliable performance of systems in various industries. Unfortunately, thermal SPICE has not proven to be the answer given its many limitations.

BCI-ROM: A Game-Changing Technology

Fortunately, a game-changing technology is revolutionizing the electro-thermal design process. Boundary Condition Independent Reduced Order Model (BCI-ROM) captures accurate characteristics from a 3D thermal analysis, ready for use in a 1D circuit simulation. The BCI-ROM-based thermal design/analysis approach is applicable to both components and entire PCB/enclosure and systems. BCI-ROMs can simply be connected in a thermal circuit, i.e., functional schematic, with the heat-flow conservation principle governing the interaction, in the identical way Kirchhoff’s Current Law (KCL) underpins electronic circuit simulation.

This technology offers a lifeline to electronics designers grappling with formidable thermal obstacles driven by the unrelenting pursuit of smaller, lighter, more cost-effective, faster, and feature-rich designs. These pursuits collectively exacerbate the challenge of dissipating heat efficiently. With BCI-ROM emerging as a pivotal technology for higher accuracy thermal models, a parallel supply chain is developing, especially in VH-DL-AMS format. This compliments the functional electronic models such as SPICE, VHDL-AMS, and IBIS.

Tackling Electro-Thermal Design Challenges

BCI-ROM revolutionizes collaboration between component manufacturers and OEM electronics and thermal engineers, empowering them to jointly tackle intricate electro-thermal design challenges with heightened efficiency. The resultant BCI-ROM models adhere to the IEEE Standard VHDL-AMS format, harnessing the language’s capacity to articulate the interconnected differential equations, expressed in matrix form, essential for capturing dynamic thermal characteristics.

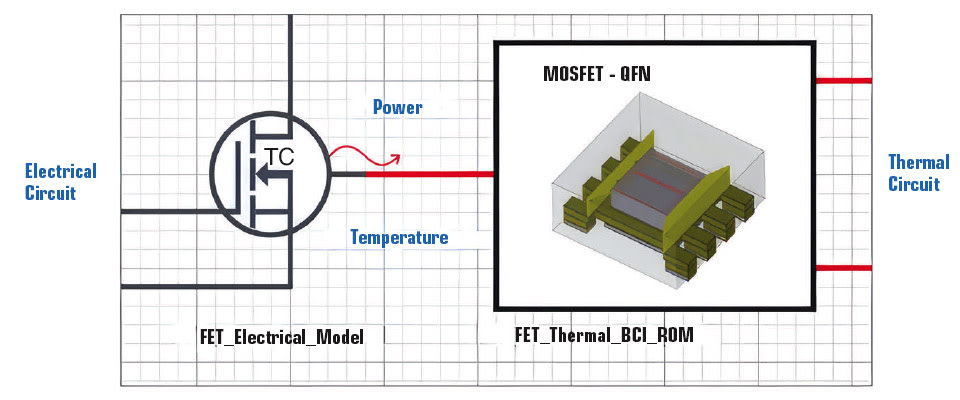

Fig. 2 - BCI-ROM in circuit simulation environment connecting thermal and electrical circuit modeling.

A thermal BCI-ROM implemented in VHDL-AMS seamlessly interfaces with electrical circuit components. To illustrate, the thermal circuit depicted below establishes a bidirectional communication channel for temperature exchange with the electrical circuit element, while the electrical circuit reciprocates by supplying power. It’s important to note that this isn’t a traditional back and forth co-simulation methodology. Instead, thermal and electrical circuits are addressed in parallel, solving for the electrical and the thermal concurrently, an advantage made available given both models are described in the same VH-DL-AMS language.

Additional Resources

To learn more about BCI-ROM technology and the tools to create these accurate thermal models, read the white paper, “Electro-thermal design breakthrough: Enabled by new BCI-ROM thermal modeling technology.” ¹

To understand the power of electro-thermal simulation using BCI-ROM technology, read additional articles that include interactive, functional simulation examples. ^2, ³

All electro-thermal simulations were conducted using Siemens’ cloud-based PartQuest Explore, a complete design, modeling, simulation, and analysis environment for electronic and mechatronic circuits and systems. ⁴

References

“Electro-thermal design breakthrough: Enabled by new BCI-ROM thermal modeling technology,” Siemens.
Mike Donnelly, “Introducing BCI-ROM For Electro-Thermal Design,” Siemens, March 1, 2021.
Mike Donnelly, “Electro-Thermal Design: Using BCI-ROMs For Switch-Mode Power Electronics,” Siemens, March 15, 2021.
“Cloud-Based Simulation Tool,” PartQuest, Siemens.

This article was written by Matt Walsh Product Marketing, Electronic Board Systems, Siemens DISW, Plano, TX. For more information, This email address is being protected from spambots. You need JavaScript enabled to view it. contact or visit here .
