Shock Accelerometer

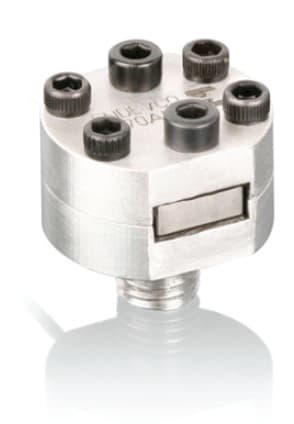

Meggitt Sensing Systems (San Juan Capistrano, CA) has introduced the Endevco® model 7270AM6, a rugged high-g piezoresistive shock accelerometer with frequency response capabilities down to DC or steady state, designed to support a variety of extreme testing requirements. The built-in mechanical filter consists of an aluminum housing lined by two layers of elastomeric filter cushion. The mechanical filter assembly, featuring a damped output with a linear phase shift, has been designed to mitigate high-frequency shock pulse content in order to protect the accelerometer from high-g, high-frequency inputs that would otherwise exceed typical sensor over-range limits. The accelerometer offers a usable frequency range from DC to 10 kHz, with stability over a temperature range of -34°C to 66°C.
