Custom Rupture Disk Prototypes for Medical Devices

Del Williams

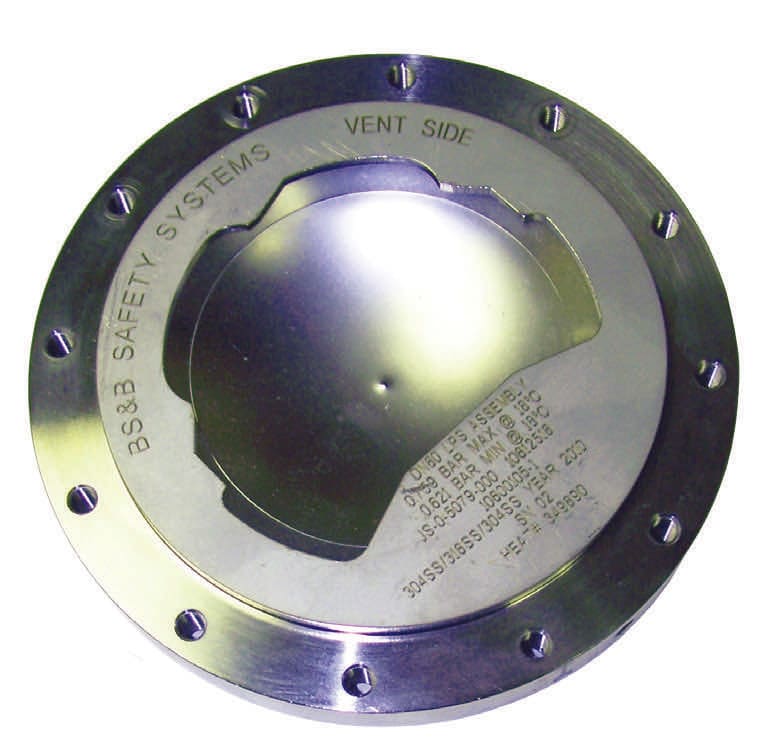

Expedited custom prototyping results in high-quality rupture disks that quickly progress from concept to production level performance. (Credit: BS&B Safety Systems)

Medical equipment designers rely on rupture disk devices for pressure relief and pressure release of gases and liquids for essential diagnostic, life safety, and analytical instrumentation. However, the challenge of time faces medical device OEM product designers; how do we get a custom solution in an acceptable timeframe?

Taking its cue from racing car pit crews, BS&B Safety Systems has fast-tracked the development process, which involves the coordination of specialized teams with unique skillsets to ensure timely delivery of dependable prototypes that are prepared for evaluation, additional adjustments, or full-scale production.

Global Demand for Innovative Rupture Disk Designs

With the global energy pivot that is occurring combined with stronger sustainability strategies, the 2020s mark an aggressive period of innovation that impacts medical device OEMs. The pace of creativity is faster than ever with OEM product development cycles compressed to achieve the fastest entry to market.

OEMs often require a unique rupture disk in terms of its dimensions, material combinations, or the operating conditions. “In many cases, the rupture disk is a last-minute consideration once other design parameters are defined and so OEMs need a custom prototype delivered within relatively tight timelines as part of their product development,” says Geof Brazier, managing director, BS&B Safety Systems, Custom Engineered Products Division.

Medical device OEMs increasingly require expedited delivery of prototypes without compromising on quality or performance. Recognizing this need, the company developed a comprehensive support program called the Prototype Introduction Team (PIT) for OEMs that require a white glove experience for custom rupture disk device.

According to Brazier, the program was developed and patterned after the race car pit crew strategy, where highly trained individuals quickly and seamlessly work together —- each with a specific role in the process and with a high degree of anticipation of the customers’ requirements. The PIT™ crew’s individual responsibilities are fine-tuned for maximum efficiency, in coordination with the other members of the crew since every step can be critical to winning.

Rapid Turnaround

Achieving such rapid turnarounds requires meticulous planning, rigorous training, and exceptional teamwork. The PIT team involves experts assembled from sales, engineering, purchasing, manufacturing, and quality control. It incorporates design engineering throughout and manages all aspects of scheduling to ensure quality, performance, and aesthetic condition with on-time completion and delivery.

According to Brazier, the PIT program design team’s expertise extends from rupture disks and buckling pin valve technology to explosion protection and prevention devices. The custom engineered products team has decades of machining experience, which now embraces 3D printing capabilities to reduce the time required for prototype manufacture.

Considerations include novel product marking, inclusion of integral flame arresters or Burst Alert ^® sensors, as well as cleaning, custom packaging, and certifications. Extensive validation capabilities further support the OEM to achieve project targets on time and on budget.

“Every application is unique, so questions inevitably arise. To ensure the OEM can get answers at any time during prototype creation, we assign a project manager to serve as a single point of contact,” says Brazier, adding that close coordination not only reduces potential technical issues but also supports the customer who may have evolving design factors that impact the pressure relief device and may trigger a running change.

According to Brazier, the PIT program’s coordination and attention to detail has accelerated the product development of not only custom rupture disks but also OEM design decision making.

For medical device OEMs, the expedited prototype program results in rupture disks that quickly progress from concept to production level performance, price, and quality.

“Approximately two-thirds of our prototypes progress to the next development step,” explains Brazier. “Some become another prototype. Others move quickly into full production.”

Rupture disk devices are a vital safety technology that can protect medical device OEM equipment from potentially damaging overpressure or vacuum conditions in various processes. When customization is necessary to accommodate the OEM’s specific processes, working with an expert partner capable of expediting prototyping can dramatically improve the equipment’s reliability and longevity while reducing maintenance and overall cost of ownership.

This article was written by Del Williams, a technical writer based in Torrance, CA. For more information on BS&B Safety Systems, e-mail: This email address is being protected from spambots. You need JavaScript enabled to view it. visit here .
