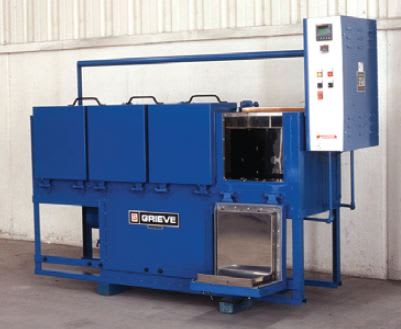

The No. 984 electrically heated, 500 °F custom-designed toploading oven from Grieve Corporation (Round Lake, IL) is used for curing connector assemblies into long cables at the customer's facility. Workspace dimensions measure 72" W × 8" D × 14" H. 12KW are installed in Nichrome wire elements to heat the unit, while a 600 CFM, ½ HP recirculating blower motor provides rearto- airflow across the workload. The oven features 4"-thick insulated walls, aluminized steel exterior, Type 430 stainless steel interior, four independently hinged doors to expose the front and back of each loading station, steel plate oven floor, and a workspace floor reinforced for 100 lb. loading on 1/4" plate.
