Quartz Crystal

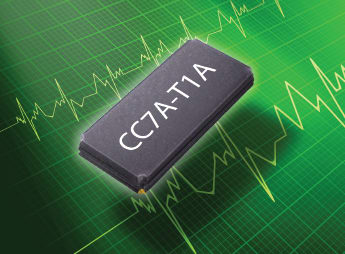

The CC7A-T1A MHz quartz crystal from Micro Crystal (Grenchen, Switzerland) is designed for implantable medical and medical telemetry applications. The precision timing crystal has a package height of 0.90 mm and a foot print of 3.2 × 1.5 mm. It offers a temperature range of –40 to +85/+125 °C, and a highthermal stability (down to ±10 ppm), meeting the requirements for wireless applications. It also offers extended custom testing conditions to meet the requirements of cardiologic and neurostimulation applications for implantable devices, including particle detection and X-ray scanning. Standard frequencies are 24.0, 26.0, and 26.5 MHz, with other frequencies available in the 24–30 MHz range upon request.
