Smart 3D printed braces that incorporate nontoxic batteries and lights could reduce the time and costs involved in realigning and straightening teeth.

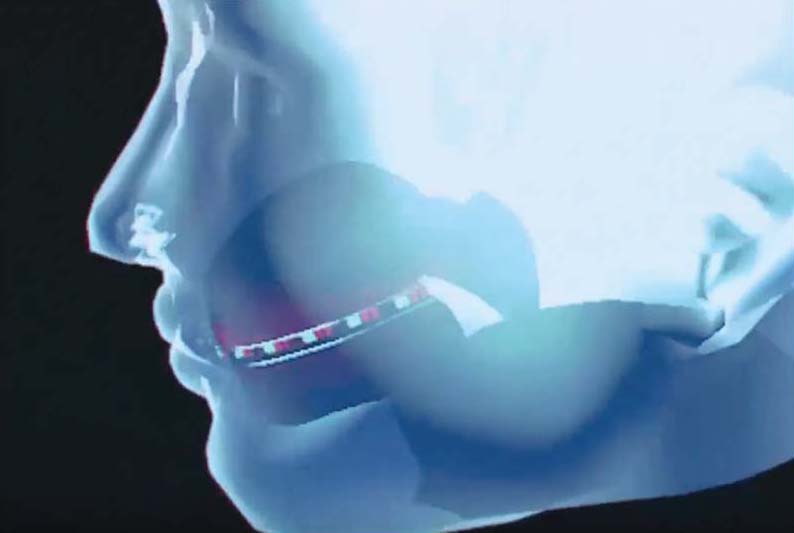

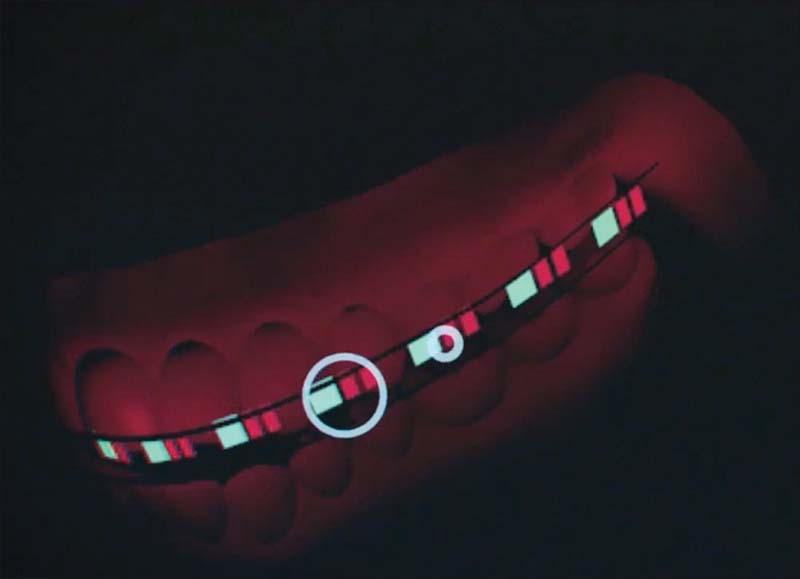

The orthodontic system, conceptualized by researchers at KAUST, involves placing two near-infrared light-emitting diodes (LEDs) and one lithium-ion battery on every tooth in a semitransparent, 3D printed dental brace.
The batteries provide energy to turn the near-infrared LEDs on and off, depending on how they are programmed by a dentist, to provide localized light therapy according to the needs of each tooth. Phototherapy enhances bone regeneration and can reduce the time and costs involved in corrective orthodontics. The brace would be removable to allow the batteries to be recharged.
“We started embedding flexible LEDs inside 3D printed braces, but they needed a reliable power supply,” explains Muhammad Hussain who led the study together with PhD student Arwa Kutbee. “After the incidents with the Samsung Galaxy 7 batteries exploding, we realized that traditional batteries in their current form and encapsulation don't serve our purpose. So, we redesigned the state-of-the-art lithiumion battery technology into a flexible battery, followed by biosafe encapsulation within the braces to make a smart dental brace.”
The battery was redesigned using a dry-etching technique, which removes the silicon substrate normally found on its back. This process thinned the battery to 2.25 × 1.7 mm and made it flexible. Tests showed that the volumetric energy — the ratio of energy to device size — of the redesigned batteries remained high even after many cycles of continuous operation.
Batteries were then encapsulated in biocompatible soft polymeric materials to prevent the possibility of leakage, making them safe to place in the mouth. As a testament to their biocompatibility, when human embryonic kidney cells were cultured on these batteries over a period of days, they thrived and proliferated. The batteries’ electrochemical performance increased linearly with rising temperature, up to 90 °C, making them stable.
Hussain says the system is a preliminary prototype, “which is more than a proof of concept.” The next step, he says, is to conduct clinical trials.
