Harvard University and Boston Children's Hospital researchers have developed a customizable soft robot that fits around a heart and helps it beat, potentially opening new treatment options for people suffering from heart failure.

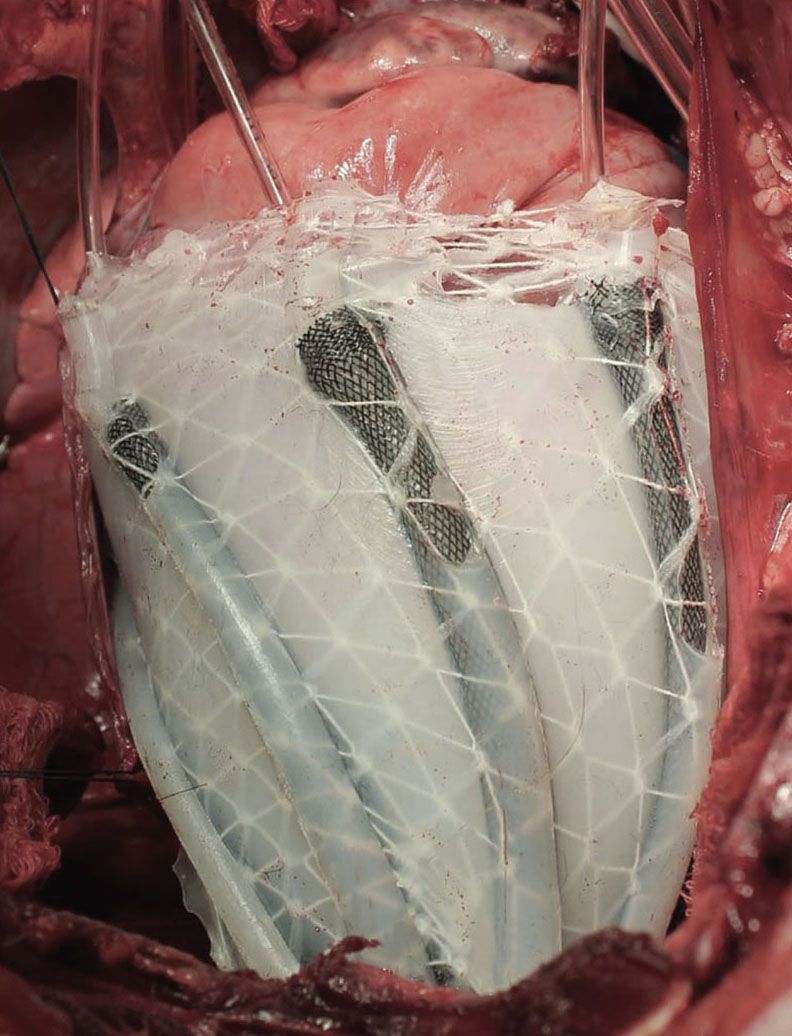

This image shows a soft robotic sleeve placed around the heart in a pig model of acute heart failure. The actuators embedded in the sleeve support heart function by mimicking the outer heart muscles that induce the heart to beat. (Credit: Harvard SEAS)

The soft robotic sleeve twists and compresses in synch with a beating heart, augmenting cardiovascular functions weakened by heart failure. Unlike currently available devices that assist heart function, Harvard's soft robotic sleeve does not directly contact blood. This reduces the risk of clotting and eliminates the need for a patient to take potentially dangerous blood thinning medications. The device may one day be able to bridge a patient to transplant or to aid in cardiac rehabilitation and recovery.

This research demonstrates that the growing field of soft robotics can be applied to clinical needs and potentially reduce the burden of heart disease and improve the quality of life for patients,” says Ellen Roche, PhD, the study's first author and a former graduate student at the Wyss Institute of Biologically Inspired Engineering at Harvard University and the Harvard John A. Paulson School of Engineering and Applied Sciences (SEAS). Roche is currently a postdoctoral fellow at the National University of Ireland. The research, published in Science Translational Medicine, was a collaboration between the Wyss Institute, SEAS and Boston Children's Hospital.

“This work represents an exciting proof of concept result for this soft robot, demonstrating that it can safely interact with soft tissue and lead to improvements in cardiac function. We envision many other future applications where such devices can delivery mechanotherapy both inside and outside of the body,” says Conor Walsh, PhD, senior author of the paper. Walsh is a Wyss Institute core faculty member and the John L. Loeb associate professor of engineering and applied sciences at SEAS.

Heart failure affects 41 million people worldwide. Today, some of the options to treat it are ventricular assist devices (VADs), mechanical pumps that pump blood from the ventricles into the aorta, and heart transplants. While VADs are improving, patients are still at high risk for blood clots and stroke.

To create an entirely new device that doesn't come into contact with blood, Harvard researchers took inspiration from the heart itself. The thin silicone sleeve uses soft pneumatic actuators placed around the heart to mimic the outer muscle layers of the mammalian heart. The actuators twist and compress the sleeve in a similar motion to the beating heart. The device is tethered to an external pump, which uses air to power the soft actuators.

The sleeve can be customized for each patient, says Roche. If a patient has more weakness on the left side of the heart, for example, the actuators can be tuned to give more assistance on that side. The pressure of the actuators can also increase or decrease over time, as the patient's condition evolves. The sleeve is attached to the heart using a combination of a suction device, sutures and a gel interface to help with friction between the device and the heart.

The Wyss and SEAS engineers worked with surgeons at Boston Children's Hospital to develop the device and determine the best ways to implant the device and test it on animal models.

“The cardiac field had turned away from idea of developing heart compression instead of blood-pumping VADs due to technological limitations, but now with advancements in soft robotics it's time to turn back,” says Frank Pigula, MD, a car-diothoracic surgeon and co-corresponding author on the study, who was formerly clinical director of pediatric cardiac surgery at Boston Children's Hospital and is now a Faculty Member at University of Louisville and division chief of pediatric cardiac surgery at Norton Children's Hospital. “Most people with heart failure do still have some function left; one day the robotic sleeve may help their heart work well enough that their quality of life can be restored.”

More research needs to be done before the sleeve can be implanted in humans but the research is an important first step toward an implantable soft robot that can augment organ function. Harvard's Office of Technology Development has filed a patent application and is actively pursuing commercialization opportunities.

“This research is really significant at the moment because more and more people are surviving heart attacks and ending up with heart failure,” says Roche. “Soft robotic devices are ideally suited to interact with soft tissue and give assistance that can help with augmentation of function, and potentially even healing and recovery.”

The research was co-authored by Markus Horvath, Isaac Wamala, Ali Alazmani, Sang-Eun Song, William Whyte, Zurab Machaidze, Christopher Payne, James Weaver, Gregory Fishbein, Joseph Kuebler, Nikolay V. Vasilyev, and David J. Mooney. It was supported by a Director's Challenge Cross-Platform grant from the Wyss Institute for Biologically Inspired Engineering, a Translational Research Program grant from Boston Children's Hospital, the Harvard School of Engineering and Applied Sciences and the Science Foundation Ireland.
