Vital for ensuring compliance to federal regulations, dimensional metrology systems facilitate critical measurement of medical parts, and force testing systems are used to verify and validate material compliance of medical devices and materials used in the production of medical devices. It is important to understand the options when selecting the right metrology system and/or force testing solution to meet the requirements of increasingly tighter accuracies, traceability, and the need for 100 percent inspection (see the sidebar, “Metrology System Selection Tips”).
Metrology Options Abound
A wide range of options exist for hardware and software, which can be combined to create different types of metrology systems, sometimes at broadly different costs and complexity ranging from easy-to-learn manual optical comparators to fully programmable multisensor CNC Systems.
Numerous higher-end products are electromechanical metrology systems, which may combine optics with precision mechanical motion, linear encoders, and digital image and data processing. These systems include optical comparators, vision (or video) metrology systems, and a new product category of digital video comparators. A digital video comparator is a vision metrology system that functions like an optical comparator but utilizes a DXF “digital overlay” instead of traditional mylar overlays. Many manufacturers have been accustomed to using go-no-go methods of gaging, which have limitations, such as the use of overlays in optical measuring or functional fit gages.
With overlays, operator subjectivity is a significant factor due to differences resulting from screen placement, imprecise or worn Mylars, magnification, complex part shapes, and especially the lack of detailed, variable data. Fatigue and data accuracy are also factors.
Functional fit gages also present a number of challenges. The gage development process is usually lengthy and expensive, with limited flexibility when parts change. And again, no variable data is attainable in the inspection process. Importantly, both overlays and functional fit gages provide no opportunity for a comprehensive audit trail and traceability process — paramount in medical manufacturing.
Ultimately, the goal in any good inspection program should be to attain maximum gage repeatability and reproducibility (GR&R) and in the process, provide comprehensive, data for statistical process control (SPC) and traceability.
Reliable GR&R is possible with today’s noncontact video and multisensor systems and their advanced software. Current display readout and software measuring technology such as the MetLogix M3 provides full qualitative and quantitative profile analysis functions where an inspector can compare a part profile against a nominal CAD model and obtain an actual graphic representation of any deviation from the CAD file.
Metrology System Selection Tips
Measurement complexity. A 2D optical comparator may suffice for simple measurements and visual comparison, but more complex medical parts may require a multisensor metrology system with CMM style touch-probe capability.
Measurement throughput. A manual system may be an option for prototypes, occasional, and short run measurements by the QC department, but an automatic, CNC system is a more economical solution if complete production runs are to be verified.
Tolerance requirements. A vision metrology system with a granite base and higher magnification optics may be required for meeting tight tolerances.
Harshness of environment. Most optical comparators are designed for typical machining environments sometimes found in machine shops. Varying temperatures, vibration, dust, and oil particles can be present and need to be taken into consideration.
Manmade interface. Various interface options are now available for both optical comparators and video-based measurement systems, including digital readouts, touchscreen PC solutions, and rack-mounted computers with monitors and software.
Software features. Capabilities can range from a simple two-axis readout to 3D multisensor capability with a rich set of measurement software tools, CNC control, statistical packages, DXF CAD file import and export, touchscreen operation with Windows Operating Systems, and network connectivity.
The system automatically finds and tracks the edge, continuously comparing it to a 2D profile, and superimposes the edge to a CAD model. In this scenario, an operator quickly, easily, and automatically collects tremendous amounts of data that is all archived and documented with date, time, lot number, job number, and so on, removing operator error from the equation. Not only can 100 percent inspection be realized, but inspection speed and throughput can also be dramatically increased due to automated system measurement routines and depending on the application, palletized multipart fixture inspection tables.
Latest Metrology Technology

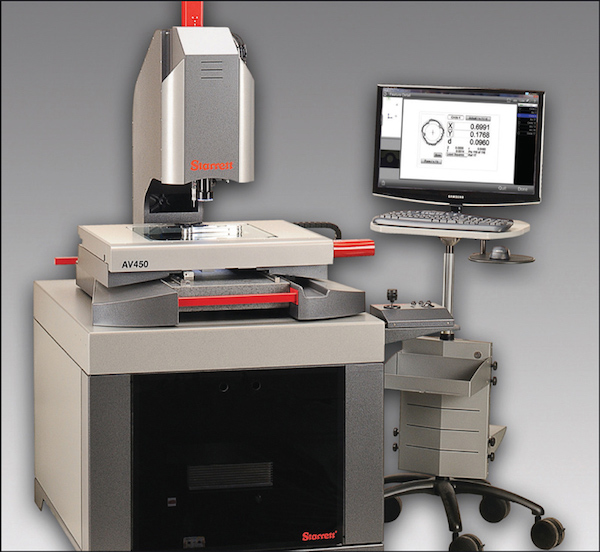

New technology exists in the form of a large field-of-view benchtop vision measurement system that can be used in either a vertical or horizontal orientation, features a high-resolution digital video camera and precision optics for accurate, large FOV measurements. The latest system lends itself to an extremely wide array of applications from flat parts to turned, threaded and complex shaped parts such as orthopedic joint implants.
A main operator interface displays a live video image with touchscreen enabled software measurement tools and graphical digital display of measurements. A part image can be resized using pan and pinch zoom. Measurements can be taken by simply touching a feature on the monitor screen. A wireless keyboard and pointing device can be used to enter file names and target key functions. Software includes 2D geometric functions such as points, lines, circles, arcs, rectangles, distances, slots, angles, and skew, and utilizing the part design DXF/CAD file digital overlay makes part inspection simple.

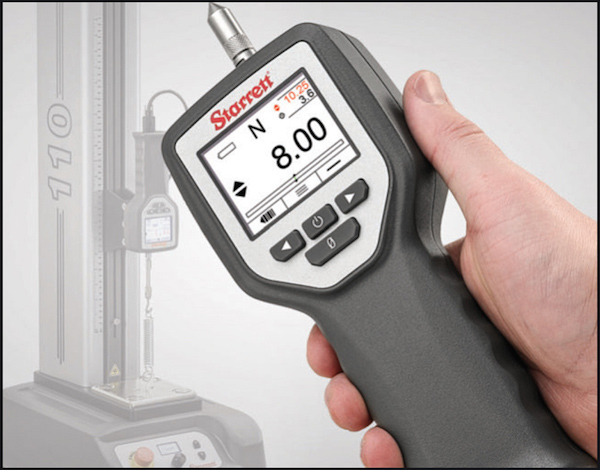

In addition to examining dimensional metrology solutions, as part of the process to verify and validate material compliance of medical devices and materials it is helpful to start by investigating systems for tensile testing. Tensile testing is the most common test method used in both force measurement and material testing and is used primarily to determine the mechanical behavior of a component, part, or material under static, axial loading.

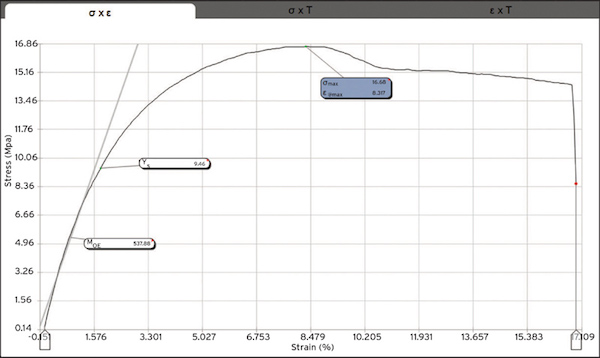

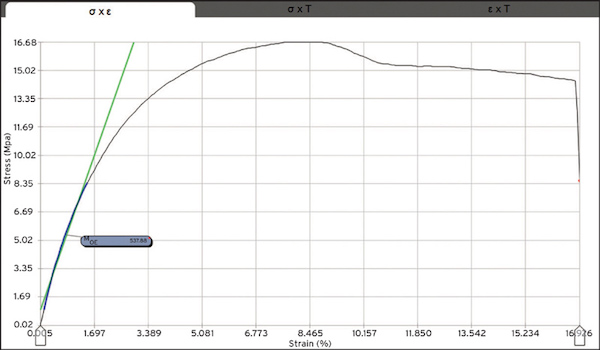

The test method for both material testing and force measurement is similar; however, the measurement results are different. A tensile test is performed to determine the tensile properties of a material or component. The test sample’s deformation is used to characterize its ductility or brittleness as well as important characteristics such as tensile strength, yield point, elastic limit, percent elongation, elastic modulus, and toughness (see Figures 1 and 2).
