The piezoelectric materials that inhabit everything from our cell phones to musical greeting cards may be getting an upgrade thanks to work discussed in the journal Nature Materials. Xiaoyu “Rayne” Zheng, assistant professor of mechanical engineering in the College of Engineering and a member of the Macromolecules Innovation Institute, and his team have developed methods to 3D print piezoelectric materials that can be custom designed to convert movement, impact, and stress from any directions to electrical energy.
“Piezoelectric materials convert strain and stress into electric charges,” Zheng explains.
The piezoelectric materials come in only a few defined shapes and are made of brittle crystal and ceramic — the kind that require a cleanroom to manufacture. Zheng’s team has developed a technique to 3D print these materials, so they are not restricted by shape or size. The material can also be activated, providing the next generation of intelligent infrastructures and smart materials for tactile sensing, impact and vibration monitoring, energy harvesting, and other applications.
Unleash the Freedom to Design Piezoelectrics
Piezoelectric materials were originally discovered in the 19th century. Since then, the advances in manufacturing technology have led to the requirement of cleanrooms and a complex procedure that produces films and blocks which are connected to electronics after machining. The expensive process and the inherent brittleness of the material have limited the ability to maximize the material’s potential.

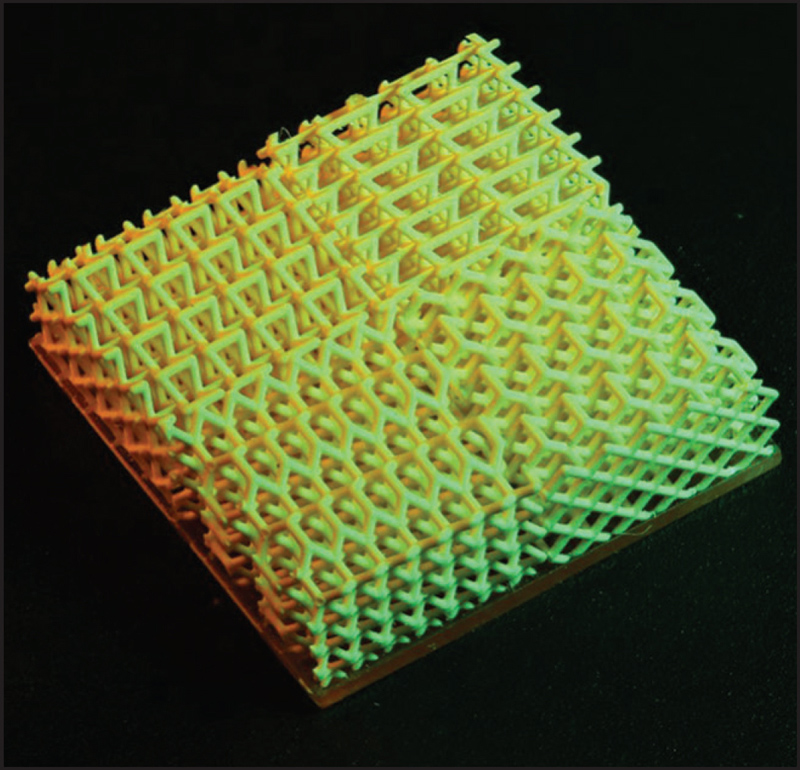

Zheng’s team developed a model that allows them to manipulate and design arbitrary piezoelectric constants, resulting in the material generating electric charge movement in response to incoming forces and vibrations from any direction via a set of 3D printable topologies. Unlike conventional piezoelectrics where electric charge movements are prescribed by the intrinsic crystals, the new method allows users to prescribe and program voltage responses to be magnified, reversed, or suppressed in any direction.
“We have developed a design method and printing platform to freely design the sensitivity and operational modes of piezoelectric materials,” Zheng says. “By programming the 3D active topology, you can achieve pretty much any combination of piezoelectric coefficients within a material and use them as transducers and sensors that are not only flexible and strong, but also respond to pressure, vibrations, and impacts via electric signals that tell the location, magnitude, and direction of the impacts within any location of these materials.”
3D Printing of Piezoelectrics, Sensors, and Transducers
A factor in current piezoelectric fabrication is the natural crystal used. At the atomic level, the orientation of atoms is fixed. Zheng’s team has produced a substitute that mimics the crystal but allows for the lattice orientation to be altered by design.
“We have synthesized a class of highly sensitive piezoelectric inks that can be sculpted into complex three-dimensional features with ultraviolet light. The inks contain highly concentrated piezoelectric nanocrystals bonded with UV-sensitive gels, which form a solution — a milky mixture like melted crystal — that we print with a high-resolution digital light 3D printer,” Zheng says.

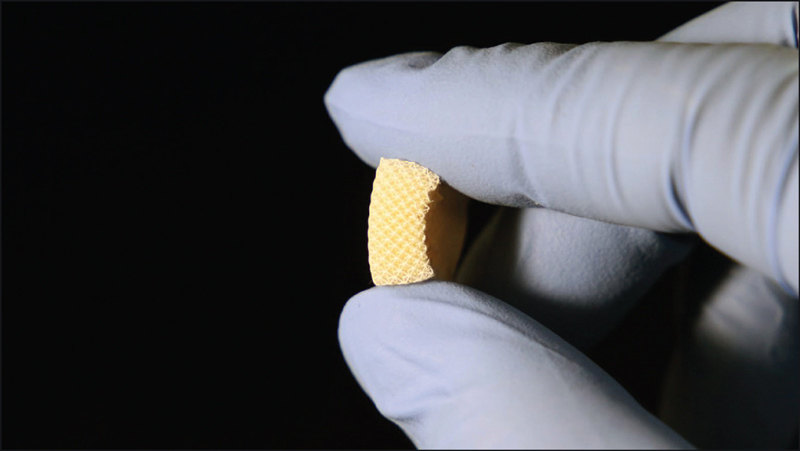

The team demonstrated the 3D printed materials at a scale measuring fractions of the diameter of a human hair. “We can tailor the architecture to make them more flexible and use them, for instance, as energy harvesting devices, wrapping them around any arbitrary curvature,” Zheng says. “We can make them thick, and light, stiff, or energy-absorbing.”

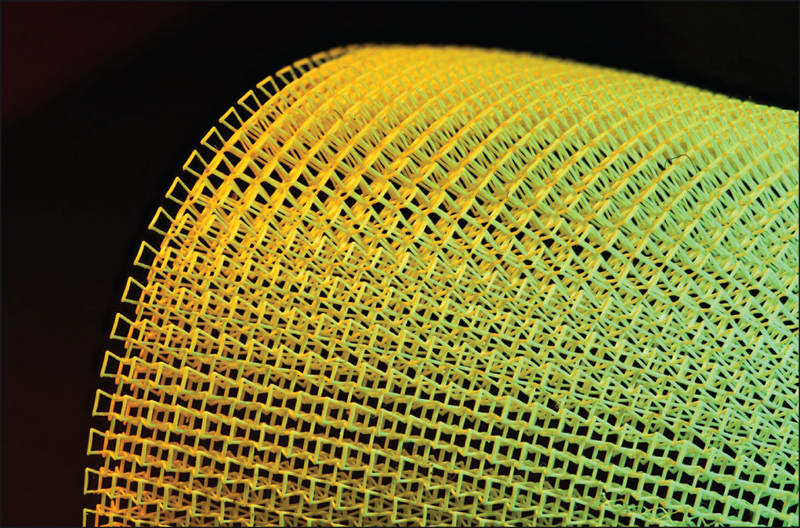

The material has sensitivities five-fold higher than flexible piezoelectric polymers. The stiffness and shape of the material can be tuned and produced as a thin sheet resembling a strip of gauze, or as a stiff block. “We have a team making them into wearable devices, like rings, insoles, and fitting them into a boxing glove, where we will be able to record impact forces and monitor the health of the user,” says Zheng.
“The ability to achieve the desired mechanical, electrical, and thermal properties will significantly reduce the time and effort needed to develop practical materials,” says Shashank Priya, associate vice president for research at Penn State and former professor of mechanical engineering at Virginia Tech.
The team has printed and demonstrated smart materials wrapped around curved surfaces, worn on hands and fingers to convert motion and harvest the mechanical energy, but the applications go well beyond wearables and consumer electronics. Zheng sees the technology as a leap into robotics, energy harvesting, tactile sensing, and intelligent infrastructure, where a structure is made entirely with piezoelectric material, sensing impacts, vibrations, and motions, and allowing for those to be monitored and located. The team has printed a small smart bridge to demonstrate its applicability to sensing the locations of dropping impacts, as well as its magnitude, while robust enough to absorb the impact energy. The team also demonstrated their application of a smart transducer that converts underwater vibration signals to electric voltages.
“Traditionally, if you wanted to monitor the internal strength of a structure, you would need to have a lot of individual sensors placed all over the structure, each with a number of leads and connectors,” says Huachen Cui, a doctoral student with Zheng and first author of the Nature Materials paper. “Here, the structure itself is the sensor — it can monitor itself.”
The team’s work is supported, in part, by the National Science Foundation, Air Force Office of Scientific Research, the Office of Naval Research, and the Virginia Tech Institute of Critical Technology Junior Faculty Award.
The paper in Nature Materials features the following authors: Huachen Cui (Mechanical Engineering), Ryan Hensleigh (Virginia Tech Macromolecules Innovation Institute), Desheng Yao (ME), Deepam Maurya (ME), Prashant Kumar (ME), Min Gyu Kang (ME), Shashank Priya, (ME & Penn State’s Materials Research Institute), and Zheng. Zheng is also an affiliate faculty member of the department of materials science and engineering.
