UV-LED Light Engines

Innovations in Optics, Woburn, MA, offers high-power, UV LED light engines. The LumiBright™ UV-LED Light Engines feature UV die arrays bonded on MCPCB substrates that enhance thermal performance for high-current-density operation. The specialized primary optic is a non-imaging concentrator made from fused silica, ideal for high-power UV flux. With active cooling, the model 2400B-405 model can emit greater than 20 W from a 7.5 mm diameter clear aperture with a 0.66 numerical aperture (NA). Model 2400B-505 can produce more than 10 W of radiant flux from a 5 mm diameter clear aperture with 0.60 NA. They are available with wavelengths centered near 365, 385, 395, and 405 nm.

For Free Info Visit Here


CAM Software

MecSoft, Irvine, CA, has released VisualCAM 2019, the latest version of its fully integrated gold certified CAM solution for SOLIDWORKS. The release includes 2½ Axis — improved feature-based machining, new Drag Knife cutting method, and new cornering options in profile machining; 3 Axis — improvements in flat area machining, new trochoidal entry motions for high-speed machining, and improved cut connections and overall performance improvements; 4 Axis — smoother motion outputs in the post-processor; and 5 Axis — nutating head support and local coordinate plane programming. Tool shank collision detection and early error detection and other productivity enhancements are also included.

For Free Info Visit Here


Single Board Computer

ADL Embedded Solutions, San Diego, CA, has released its latest high-performance industrial Intel® Core™ SBC. Based on sixth generation Intel Core Skylake processors and Intel Q170 chipset. The compact ADL120S SBC measures a compact 120 x 120mm with a robust set of features and I/O that make it ideal for IIoT and cybersecurity applications. ADL120S features include 4× Ethernet LAN, 4× USB 3.0, 2× DisplayPorts, 2× M.2 PCIe/SATA, and much more, which makes it ideal for applications where high performance is an absolute necessity.

For Free Info Visit Here


Linear Stepper Motor

Nippon Pulse, Radford, VA, has launched its smallest linear stepper motor to date. The PFL20 Linearstep is a highly efficient, high thrust tin-can linear actuator with a 20-mm diameter and a bipolar winding. The RoHS-compliant motor has a 30/60 mm effective stroke and can reach 6 N of force at 200 pps. With 24 steps per revolution, the lead screw has a 1.2 mm thread pitch; the PFL20 also reaches 5V rated voltage, resistance of 33 Ω/phase and inductance of 12 mH/phase. The motor is also available in 25 mm (captive or noncaptive option) and 35mm diameter.

For Free Info Visit Here


Touch Panels

A series of customizable, flush-surface resistive touch panels is available from Fujitsu Components America, San Jose, CA. The panels offer less than half the input force of conventional resistive panels, nearly identical to that of projected capacitive panels. The FID-1300 (4-wire) and FID-1520 (5-wire) series touch panels support a minimum input force of 0.02N (0.45 typical) while maintaining reliable user input and smooth sliding and flicking operations. A variety of implements can be used to activate touch input, including bare skin, gloved fingers, wet fingers, pens, or stylus pens.

For Free Info Visit Here

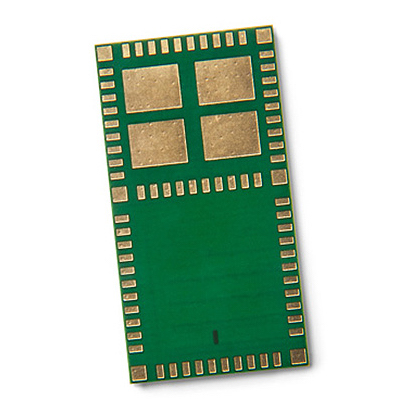

ISP Module

Insight SIP, Sophia Antipolis, France, has launched a new line of ultra-miniature RF modules, extending its product portfolio to include Long Range Networking via LoRa technology. The ISP4520 series of modules integrates BLE and LoRa radio functionality to combine the short-range high throughput capability and easy smartphone/PC access of BLE together with the long-range features of LoRa technology. LoRa offers a low cost, wide area networking solution for IoT applications while BLE gives a higher bandwidth channel for the device.

For Free Info Visit Here


Spectrum Analyzer

Rigol Technologies, Beaverton, OR, has launched a new integrated EMI application mode for EMI precompliance measurements for its spectrum analyzers. The application allows engineers to measure, compare, analyze, and report on EMI issues throughout their design process. Integrated CISPR bandwidths and detectors, simple limit line construction, automated multi-segment scan, and up to three simultaneous detectors make it simple to get initial scans and measurements.

For Free Info Visit Here

Photoetching Services

Precision Micro, Birmingham, UK, has installed a further automated optical inspection machine (AOI) as part of its ongoing investment to meet increased demand for high-volume, close-tolerance, precision etched components. The new system has been specified to enhance verified part quality and automation for discrete components and can handle material thicknesses down to 0.2 mm (200 μm). It can undertake complete 100 percent visual and dimensional inspection on both sides of the product.

For Free Info Visit Here


Steam Testing Unit

Carltex, Nyack, NY, has introduced a steam testing unit. The Steam Quality Testing SQ1E NCG Unit includes an automatically controlled air-cooled condenser with backlit displays, which are designed to reduce setup and testing times. It features air cooling to eliminate the need to use cooling water and an integral burette with push-button zeroing, which makes it easier to start, test, and control testing. A condensate flow pause button eliminates the loss of condensate when rezeroing the burette.

For Free Info Visit Here


3D Endoscopes

A platform that enables medical device manufacturers to seamlessly integrate stereoscopic 3D imaging into endoscopes is available from Omnivision, Santa Clara, CA. The platform incorporates two CMOS image sensors and an image signal processor (ISP) plus a light control board for LED illumination and camera control unit. The platform includes two OH02A image sensors with 1.4-μm pixel PureCel® technology in a ⅙-in. optical format. These sensors support alternate-row high dynamic range (HDR) for high-quality imaging of both bright and dark areas.

For Free Info Visit Here


Power Supply

Power Partners, Hudson, MA, has released a series 65-W low-cost interchangeable AC blade wall mount power supplies. The PSAW65I Series packs 65W into a compact case, measuring 4.62 × 1.98 × 1.4 in. with a 4-ft-long dc output cable, terminating in a 2.1 mm barrel connector. Other output connectors are available upon request. Offered are seven standard output voltages of 12, 15, 18, 19, 24, 36, and 48 V (other voltages available). All models meet Level VI efficiency and the interchangeable AC blade system makes them ideal for worldwide use.

For Free Info Click Here


Conveyor Oven

Grieve Corp., Round Lake, IL, offers a 300 °F, electrically heated, vertical conveyor oven. Workspace dimensions measure 36 × 89 × 115 in. It includes 40 KW Incoloy-sheathed tubular elements to heat the oven chamber, while a 6000 CFM, 5-HP recirculating blower provides vertical downward airflow to the workload. It features 4-in. insulated walls, aluminized steel interior and exterior, motor-operated vertical lift door at the loading/unloading opening, and two independent doors for access to the workspace.

For Free Info Click Here


Single Board Computer

A single board computer from Technologic Systems, Fountain Hills, AZ, is suitable for industrial control automation and remote monitoring management. The TS-7180 features the NXP i.MX 6 UltraLite processor. The i.MX 6UltraLite is a high-performance, ultra-efficient processor family featuring Freescale's advanced implementation of the single ARM Cortex®-A7 core. The NXP i.MX 6UL processors offer scalable performance and multimedia support, along with low power consumption. It comes standard with 512 MB of RAM, with configurations in the family that go up to 1 GB of RAM.

For Free Info Click Here


Compact Tomoscope

Werth, Giessen, Germany, offers its TomoScope technology in a new compact format. The TomoScope XS combines many advantages of various machine classes. The transmission tube — with a unique monoblock design — produces a small focal spot even at high x-ray power, so that rapid measurements can be performed at high resolution. The new x-ray source combines the advantages of closed and open micro-focus x-ray tubes. The maximum x-ray voltage is 130 kV, with an available 160 kV for workpieces with greater radiographic length and denser materials.

For Free Info Click Here

Closure Liners

TriSeal, Wayne, PA, has expanded its closure liner offerings with three new coextruded foamed products. The F-224™, F-419M™, and F-830™ are based on lower foam densities to decrease liner weight. The F-224 liner is an alternative to the company's F-217 liner. The F-224 liner features a foamed LDPE core with solid LDPE layers on both sides. F-419M features an LDPE core with high-density polyethylene on either side. F-830 is a three-ply coextruded liner consisting of a foamed polyolefin core with solid polypropylene copolymer layers on both sides.

For Free Info Click Here


Laser Marking

Foster Corp., Putnam, CT, has introduced a biocompatible laser marking technology that offers high-resolution, durable printing capability for plastic materials used in medical devices such as tubing, catheter shafts, labware, and medical equipment. LazerMed™ technology is manufactured using state-of-the-art laser marking pigments. These pigments provide a versatile printing platform that can be used in the vast majority of plastic materials, including transparent and opaque materials, used in medical device applications.

For Free Info Click Here


Titanium Strips

Ametek, Wallingford, CT, has added two new titanium strip grades — grade 9 and 23 — to its product portfolio for medical applications. Having developed a proprietary production process for both Ti grades, two of the company's facilities now able to produce a thin strip that ultimately offers external charging capabilities for implanted medical devices when incorporated to the external shell. This new production technology involves a cold rolling and annealing process that yields titanium strip with outstanding microstructure characteristics and formability properties.

For Free Info Click Here


CAD/CAM Suite

Open Mind Technologies AG, Needham, MA, has introduced a new version of its advanced, comprehensive CAD/CAM software suite. hyperMILL® 2019.1 has a range of new features and enhancements including an expanded Finishing Module in the hyperMILL® MAXX Machining Performance Package, process optimizations such as a new thread milling module, a new function for reducing calculation times, tool database flexibility, and CAD optimization. Also new to 2019.1 is the elimination of cycle recalculation requirements, improving processing speed.

For Free Info Click Here


Medical Design Briefs Magazine

This article first appeared in the October, 2019 issue of Medical Design Briefs Magazine.
