Figure 4 is a high-magnification back-scattered electron (BSE) image of a longitudinal section of a diamond strut made from TM-1: Std VIM-VAR; 2-1 tubing. This image is exemplary of matrix healing that can occur during drawing operations resulting in two distinct NMI often with a remnant void between them. Extensive matrix healing was found in TM-1 processed tubing. Matrix healing of voids is an important aspect in fatigue life of drawn materials.

Fig. 4 - Representative BSE micrograph of longitudinal section of diamond made from TM-1: Std VIM-VAR; 2-1 tubing.

Results and Discussion

Overall, little difference was found between NMI inclusion count and volume fraction of inclusions between the three TM-1 tube lots in longitudinal and transverse sections. Large NMI were found in the two TM-2: Std VIM-VAR and TM-2: Std VAR tubing samples, but not to the size reported by Robertson. In addition to differences in sample preparation and analytical techniques, this may be the result of light etching that tends to increase feature contrast and may result in exaggerated dimensional measurements used by Robertson whereas current samples were polished only. NMI number density, ρ, in transverse sections is found to be 1.5–3 times that in longitudinal sections for all materials examined in the current study. This is simply the result of sectional view and microstructural anisotropy of NMI.

More importantly, for the TM-1: 2-1 NMI density for tube lot is on average 3–5 times greater than that for the other tube lots in this study (TM-1: 1-1 and 1-2). The higher ρ for tube lot 2-1 appears to correlate well with reduced mean and median NMI lengths and diameters compared with lots 1-1 and 1-2, which show larger dimensions and smaller ρ. These same trends are also seen for the TM-2: Std VIM-VAR and TM-2: Std VAR transverse and longitudinal samples. NMI dimensional relations are shown to be important aspects to understanding the fatigue lives of materials found in this and the Robertson work.

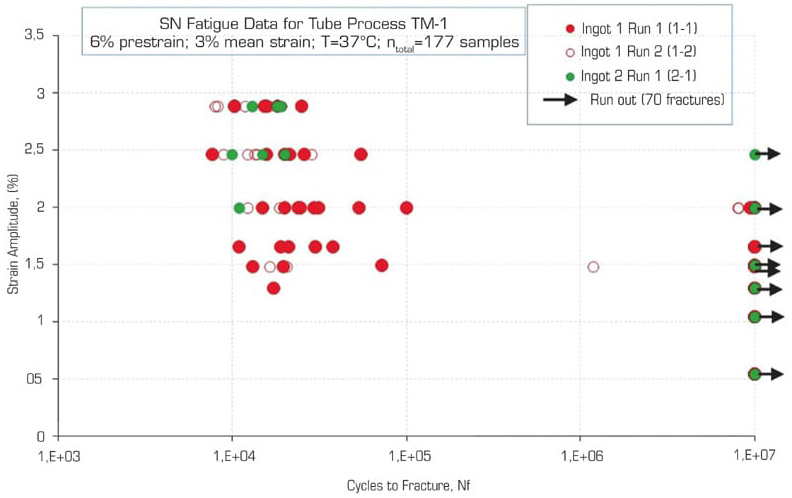

Fig. 5 - Strain-life plot for tubing lots 1-1, 1-2, and 2-1 made using tube manufacturing process TM-1 and fatigued at 37 °C to the runout condition of Nf = 107 cycles. Note the sparsity of fractures occurring in the high-cycle region, i.e., ~105 cycles < Nf < 107 cycles.

Diamond fatigue data for tubing processed using TM-1 are shown in Figure 5 on a standard strain-life plot with strain amplitude, εa, plotted as a function of number of cycles to fracture, Nf, for tube lots TM-1: 1-1 (filled red circles), 1-2 (open red circles), and, 2-1 (filled green circles). Black arrows indicate runout samples. An increasing number of runouts were observed with reduced strain amplitudes. Runouts were observed at all strain amplitudes except at 2.9 percent where all samples fractured in the low cycle region Nf ≤ 105 cycles. No fractures were seen below 1.3 percent strain amplitude. Immediately apparent in Figure 5 is the dearth of fractures in the high-cycle fatigue region, i.e., for 105 cycles < Nf ≤ 107 cycles. This is likely the result of the relatively small volume of highly stressed material during fatigue testing of diamonds.15 The estimated stressed volume, V, in a strut based on 10 percent of the peak strain amplitude is 0.7 × 10–4 mm3 for the diamonds used in this study.

This same trend is observed in the Robertson et al. diamond fatigue data for the five materials they tested. Robertson also performed tension-tension fatigue testing of 0.229 mm diameter nitinol wires made from the Standard VAR, Standard VIM-VAR, and HP-VAR materials under the same conditions as the diamonds albeit with a slightly reduced Af = 17C ±3C. The gauge length of their wire was 4 mm, resulting in a stressed volume V = 4 mm3 or more than 103 times that (estimated) of the diamonds used in either study. There are two noteworthy features of their data:

  • There is a plethora of wire fractures in the high-cycle fatigue region compared to the diamond data in both the current study and the Robertson study.

  • There is a considerable reduction in the high-cycle fatigue (HCF) limit of all three materials tested in the wire configuration compared to diamonds.

These phenomena are thought to be the result of the significantly larger volume of stressed material in the wires during fatigue testing compared to that in the diamonds. The large V (stressed volume) provides a statistical basis for activating the intrinsic distribution of highest potency crack nucleation sites resulting from normal processing.15 In contrast, the probability of incorporating a highly potent crack-nucleant in the relatively small volume of highly stressed material in a diamond strut is significantly reduced resulting in:

  • The typical bimodal distribution of fatigue fractures observed in diamond (or apex) testing of nitinol (or other structural materials in which Vσ is relatively small): diamond-type samples tend to exhibit either low-cycle fatigue fractures or runouts.

  • An increased high-cycle fatigue limit — less potent defects result in higher driving forces (stresses or strains) necessary to nucleate a fatigue crack.

As a side note, the HCF limit of the HP-VAR material approaches those for the standard grades of nitinol at the runout condition is thought to be indicative of a similar distribution of the highest potency nucleating defects in all three materials. The Vσ in the wire sample is sufficiently large to incorporate and activate these most potent, although sparse, defects in the HP-VAR. Improvement of the low-probability fatigue life, important in medical devices, is likely best achieved by reducing the maximum size defect in the material used in production as size is one critical parameter in defining defect potency in nucleating a fatigue crack.

Conclusion

This article compares the effects of two tube manufacturing techniques, TM-1 and TM-2, on the high-cycle fatigue life of three standard grades and two high-purity grades of SE nitinol used in the manufacture of cardiovascular medical devices. The results suggest that the tube manufacturing technique has a significant impact on fatigue life of a finished SE nitinol component. Part 2 of this article will address probabilistic fatigue results that were correlated to statistical micro-analyses performed on samples representative of both tube manufacturing techniques.

References

  1. Robertson S., et al.; A statistical approach to understand the role of inclusions on the fatigue resistance of superelastic nitinol wire and tubing, Journal of the Mechanical Behavior of Biomaterials, p. 119- 131, (2015).
  2. Schulz, E, et al.: Transcatheter Aortic Valve Implantation with the New-Generation Evolut RTM – Comparison with CoreValve® in a Single Center Cohort. IJC Heart & Vasculature 12, 52–56 (2016).
  3. Piazza, N., et al.: First-in-Human Experience with the Medtronic CoreValve Evolut R; EuroIntervention 9 1260–1263 (2014).
  4. Zhu, P., et al.; Comparison of three- Dimensional Shape Memory Alloy Constitutive Models: Finite Element Analysis of Actuation and Superelastic Responses of a Shape Memory Alloy Tube; From ASME 2013 Conference on Smart Materials, Adaptive Structures and Intelligent Systems; Snowbird, UT, USA, (2013).
  5. Wheeler, R., et al.; Engineering Design Tools for Shape Memory Alloy Actuators: CASMART Collaborative Best Practices and Case Studies. From ASME 2016 Conference on Smart Materials, Adaptive Structures and Intelligent Systems. Stowe, VT (2016).
  6. Rahim, M. et al.; Impurity levels and fatigue lives of pseudoelastic NiTi shape memory alloys; Acta Materialia; 61; 3667- 3686 (2013).
  7. Pelton, A.R., et al.; Rotary bending fatigue characteristics of medical-grade nitinol wire; J. Mech Behav Biomed Mater; 19-32; (2013).
  8. Harrison, W.J., and Lin Z.C.; From SMST- 2000: Proceedings of the International Conference on Shape Memory and Superelastic Technologies; ASM International; 391-396; (2001).
  9. Schaffer, J.E., and Plumley, D.L.; Fatigue performance of nitinol round wire with varying cold work reductions; J. Mater. Eng Perform. 563-568 (2009).
  10. Avitzur, B.; Handbook of Metal-Forming Processes; Tubing and Tubular Products; J. Wiley and Sons, Inc.; 457 (1983).
  11. Schetky, L. McD., and Wu, M.H.; Issues in the Further Development of nitinol Properties and Processing for Medical Device Applications; From Proceedings ASM Materials & Processes for Medical Devices Conference; Anaheim, CA; 271; (2003).
  12. ASTM F2004-16; “Standard Test Method for Transformation Temperature of Nickel-Titanium Alloys by Thermal Analysis”; ASTM International, West Conshohocken, PA, (2016).
  13. ASTM F2082-16; “Standard Test Method for Determination of Transformation Temperature of Nickel-Titanium Alloys by Bend and Free Recover”; ASTM International, West Conshohocken, PA, (2016).
  14. ASTM F2516-14; “Standard Test Method for Tension Testing of Nickel-Titanium Superelastic Materials”; ASTM International, West Conshohocken, PA, (2016).
  15. Murakami, Y.; Metal Fatigue: Effects of Small Defects and Nonmetallic Inclusions; Elsevier Science Ltd; 75-122; (2002).

This article was written by Paul Adler, Invariant-Plane Solutions, LLC, Wheeling, IL; Rudolf Frei, Vascotube GmbH, a Cirtec Medical company, Birkenfeld, Germany; Michael Kimiecik, Paul Briant, and Brad James, Exponent, Inc., Menlo Park, CA; and Chuan Liu, Northwestern University, Evanston, CA. For more information, Click Here .
