Engineering thermoplastics are widely used to manufacture a broad range of medical devices, from single-use syringes and applicators to diagnostic and monitoring equipment. One critical aspect of using thermoplastics effectively in devices is optimized manufacturing, which involves identifying the best molding process for the application; understanding and accommodating the specific attributes of the chosen material and equipment; and finding ways to meet the design intent while controlling costs and maintaining high quality.

Improved manufacturability of a device can help OEMs achieve strategic goals such as speed to market, cost reduction, extended useful life under demanding conditions (e.g., exposure to harsh cleaning agents), and competitive differentiation.

While thermoplastic resin suppliers are expected to provide innovative materials, their expertise in process technology — gained from working on application development with customers and from in-house R&D — is a valuable additional asset. Knowledgeable suppliers can make a significant contribution to the success of the final device. This article, based on that perspective and experience, offers guidance on different processing options when using engineering thermoplastics to manufacture medical devices and components.

Traditional and Emerging Processes

Each type of plastic processing has advantages and disadvantages. The challenge is finding the best method for the application, based on requirements such as desired part and device performance; design parameters and complexity; material properties; weight and aesthetics; high- or low-volume production; and secondary operations.

Major thermoplastics suppliers, such as SABIC, offer resources to help customers identify the appropriate processing method and to optimize part manufacturing. These tools may include processing equipment, application testing capabilities, laboratory facilities, and material-specific performance data. Further, suppliers continue to spearhead improvements to existing manufacturing methods and develop new ones to overcome economic or technical limitations of current manufacturing, and support production of novel parts.

Conventional Injection Molding

While injection molding has been used for decades, it remains extremely popular for device manufacturing, thanks to its exceptional versatility, dimensional accuracy, and productivity advantages. Injection molding can be used for parts as diverse as single-use devices (staplers, trocars, clip applicators, etc.) and large panels for diagnostic equipment. The capabilities of injection molding help device makers address top healthcare trends, including:

  • Improved patient outcomes: For example, drug-delivery devices such as injection pens and auto injectors have complex moving parts. Injection molding delivers the high precision needed for accurate dosing, which promotes positive outcomes.

  • Cost reduction: By consolidating parts and avoiding secondary operations, molded designs help to lower the cost of components such as chassis and frames used for capital equipment.

  • Usability: Thin-wall injection molding and metal replacement reduce weight in portable medical devices, making them easier for clinicians and patients to transport and operate.

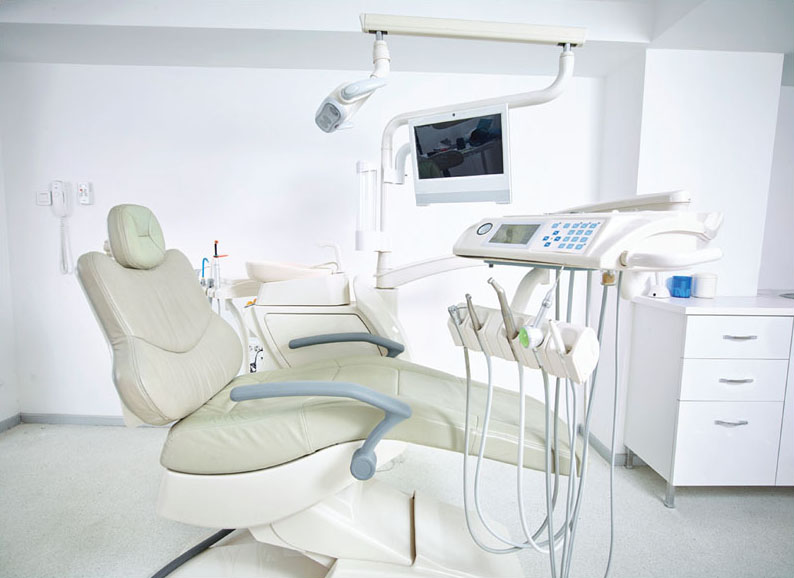

Heat-cool molding enables the use of glass reinforced materials for parts requiring both strength and aesthetics. Medical furniture components, such as armrests, can benefit from this technology, which can create a high-quality surface finish and eliminate the need for painting. Stress reduction within the part is another benefit that can enable better resistance to cracking, especially when it is exposed to chemical cleaning agents used to combat hospital acquired infections (HAIs).

Considerations for injection molding parts begin with system cost. Injection molding tools may require higher up-front investments to produce, but their cost is typically offset by the economic advantages of high-speed, high-volume production.

Design freedom is another consideration. Many different resins and compounds are appropriate for injection molding, giving device designers greater flexibility. These range from polycarbonate (PC) and PC/acrylonitrile-butadiene-styrene (PC/ABS) to modified poly-phenylene ether (PPE) for foam molding. Specialty compounds, such as those that offer lubricity or stiffness under demanding conditions, including repeated autoclaving, give designers even more choices.

Optimizing processing parameters such as temperature, pressure, and resin moisture content for high throughput and quality depends upon material properties, part design, and equipment. For instance, careful analysis and testing are needed to ensure part-to-part consistency in multicavity tools, control warp-age in thin-wall and extended-flow areas, and completely fill intricate or complex features.

This is where a material supplier's investment in process development can pay major dividends to the device maker — potentially saving time and avoiding expensive mistakes. Based on broad and deep experience, major suppliers understand the limitations of existing injection molding capabilities and can use their engineering resources to push beyond these barriers, helping customers achieve their goals.

Specialized Injection Molding

Beyond conventional injection molding, advanced injection molding techniques are available to meet the specialized performance, aesthetic, and processing requirements of medical devices.

Heat-Cool Molding. Tool temperature plays an important role in raising the surface quality of injection molded parts. Heat-cool molding technology thermally cycles the surface temperature of the tool within the injection molding cycle. This requires heating the tool surface above the material's glass transition temperature (Tg) prior to injection using specialized equipment such as superheated water systems or induction coils. After the resin is injected into the cavity, the tool is quickly cooled to solidify the molded part prior to ejection.

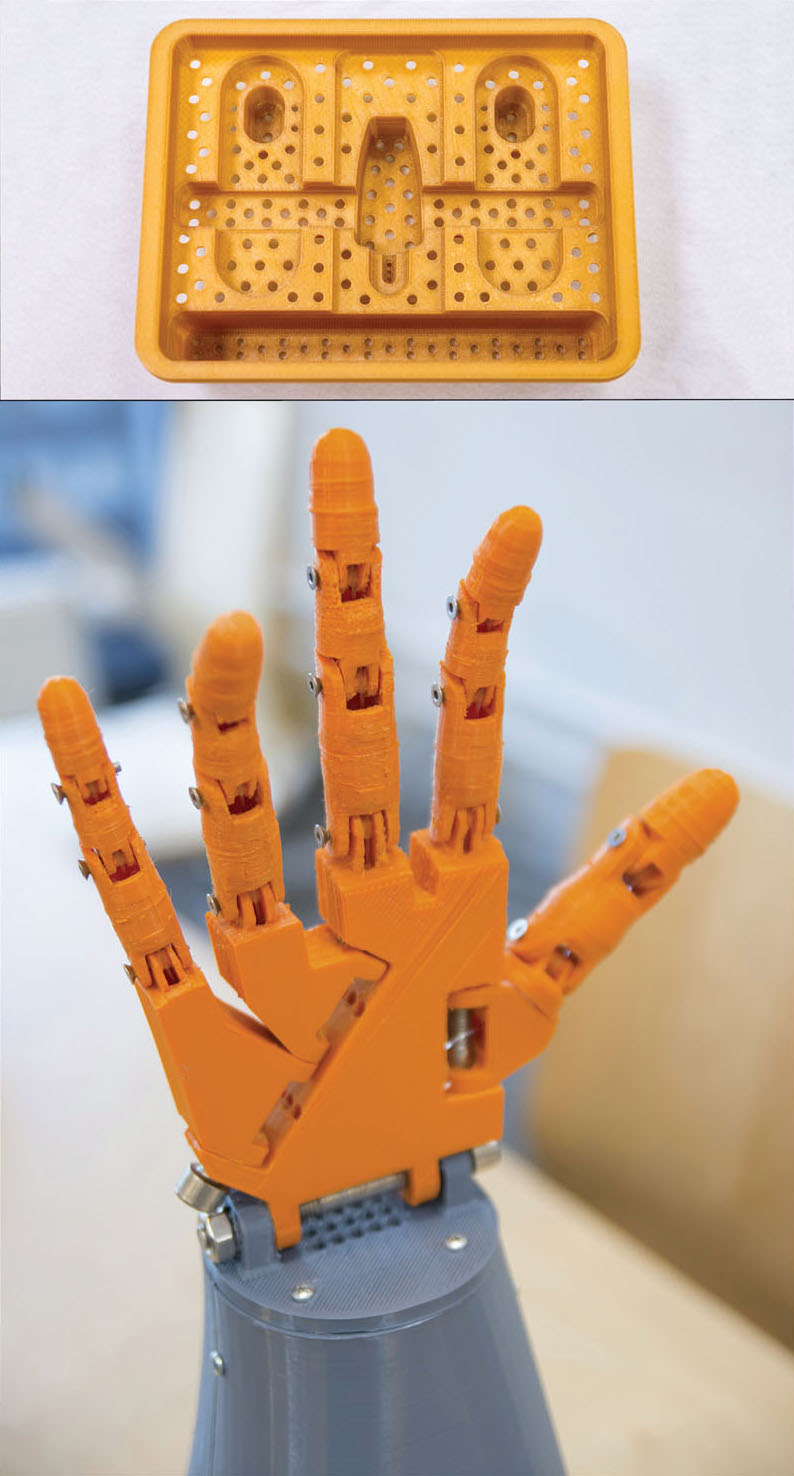

Additive manufacturing is a disruptive technology gaining traction within the healthcare industry. Advantages for medical devices include patient-specific customization, lower costs by avoiding the need for a mold tool, and exceptional design freedom. Using healthcare-grade materials, SABIC is developing PC and ULTEM™ PEI healthcare filaments for fused deposition modeling to produce printed parts with excellent mechanical performance, sterilization compatibility, and biocompatibility.

Heat-cool molding enables glass-reinforced materials to be used for parts that require a high-gloss finish by creating a resin-rich surface. Achieving a high-quality surface finish in parts molded with glass-reinforced materials can help eliminate the need for painting. An attractive surface can increase a home-use device's appeal to patients and can help it stand out from the competition.

Another important benefit of this process is stress reduction within the part. With less molded-in stress, the part has better resistance to cracking, especially when it is exposed to chemical cleaning agents used to combat hospital-acquired infections (HAIs). Resins suitable for heat-cool molding include glass-filled PC and polyetherimide (PEI), as well as specialty compounds. A materials supplier such as SABIC, for example, with established global application development centers, can provide customers with a knowledgeable resource to help them use heat-cool molding effectively.

Gas-Assist Injection Molding. Gas-assist injection molding is a process enhancement to conventional injection molding. It involves injecting pressurized nitrogen gas into the interior of the mold. The gas flows through strategically placed channels to displace resin in thick areas of the part by forming hollow sections. The resulting parts are lighter, with less molded-in stress, more-uniform wall thicknesses, and better dimensional stability. Gas-assist injection molding may also reduce sink marks, producing a high-quality surface finish. Complex part geometries that cannot be created in a single-part conventional molding process can benefit from this technology. This type of injection molding can offer economic advantages: less material is needed and, because it is a high-speed process, cycle times are shorter, helping to boost productivity.

Gas-assist injection molding can be an excellent technique for improving medical device usability through weight reduction and ergonomic design. Typical applications include the myriad of surgical tools used for retraction and impaction that are currently made from stainless steel. In addition to better ergonomics, gas-assist injection molded parts can eliminate the need for external ribbing, offering a smoother surface that is easier to clean and less likely to promote build-up of human tissue that can increase the risk of infections.

Processing considerations for gas-assist injection molding include locating gas channels correctly, and adjusting to faster cooling of the part due to hollowed-out sections (cooling takes place from the outside and inside of the part).

Finding the right materials for this niche process requires advice from the material supplier, while manufacturing optimization calls for a collaborative effort by the device company, the molder, and the resin supplier.
