In between the vertebrae of the human spine are 23 Oreo™ cookie-sized, cartilage-filled discs that hold the vertebrae together and allow for spine movement.

alt
Fig. 1 – Mechanical engineering professors Anton Bowden (left) and Larry Howell (right) conceived a spine disc replacement that mimics a healthy disc.

While the discs are critical for movement, they can become the source of back pain when they degenerate or herniate — a major health problem that affects 85 percent of Americans and drains the U.S. economy to the tune of $100 billion every year.

A new biomedical device to surgically treat chronic back pain — an artificial spinal disc that duplicates the natural motion of the spine — has been licensed from Brigham Young University (BYU) to a Utah-based company. The artificial disc was conceived by mechanical engineering professors Anton Bowden and Larry Howell and BYU alum Peter Halverson.

“Low back pain has been described as the most severe pain you can experience that won’t kill you,” said Bowden, a BYU biomechanics and spine expert. “This device has the potential to alleviate that pain and restore the natural motion of the spine — something current procedures can’t replicate.”

How It Works

Currently, the most common surgical treatment for chronic low back pain is spinal fusion surgery. Fusion replaces the degenerative disc with bone in order to fuse the adjacent segments to prevent motion-generated pain.

Unfortunately, patient satisfaction with fusion surgery is less than 50 percent. The solution researched by the BYU team consists of a compliant mechanism that facilitates natural spine movement and is aimed at restoring the function of a healthy spinal disc.

alt

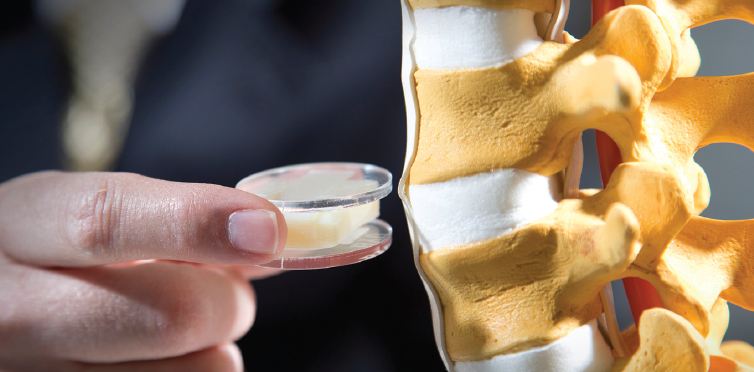

Fig. 2 – A prototype of the artificial spine disc replacement conceived by BYU researchers.

Compliant mechanisms are jointless, elastic structures that use flexibility to create movement. Examples include tweezers, fingernail clippers or a bow and arrow. Howell is a leading expert in compliant mechanism research.

“To mimic the response of the spine is very difficult because of the constrained space and the sophistication of the spine and its parts,” Howell said. “A compliant mechanism is more human-like, more natural, and the one we’ve created behaves like a healthy disc.”

Under Howell’s and Bowden’s tutelage, BYU student-engineers built prototypes, machine-tested the disc, and then tested the device in cadaveric spines. The test results show the artificial replacement disc behaves similarly to a healthy human disc.

“Putting it in a cadaver and having it do what we engineered it do was really rewarding,” Howell said. “It has a lot of promise for eventually making a difference in a lot of people’s lives.”

Halverson, who was lead author on the study, has since earned his Ph.D. from BYU and taken a position at Crocker Spinal Technologies, which will likely begin international sales distribution as early as next year.

“Fusion, which is the current standard of care for back pain, leaves a lot to be desired,” said David Hawkes, president of Crocker Spinal Technologies (Park City, UT). “Disc replacement is an emerging alternative to fusion that has the potential to make a significant difference in the lives of millions.”

Where It Stands

This technology will be developed to market by Crocker Spinal Technologies, a company founded by BYU President’s Leadership Council member Gary Crocker and headed by BYU MBA graduate David Hawkes. The BYU researchers report on the mechanism’s ability to facilitate natural spine movement in a study was published in the International Journal of Spine Surgery.
