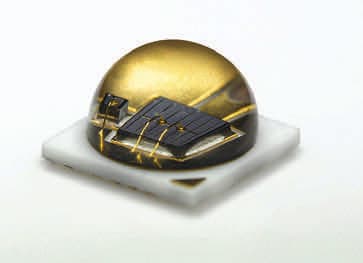

SMD SWIR LEDs
EPIGAP OSA Photonics GmbH, Berlin, Germany, has released a surface-mount device (SMD) shortwave infrared (SWIR). Model OCI-460 ID1550-XS operates at 1550 nm and features drive current up to 1.5 A to deliver approximately 13 percent higher output efficiency over the company’s OCI-480 package. Other models in the series operate at wavelengths of 1040, 1200, 1300, and 1460 nm. Output power varies depending on the specific model. The SMD SWIR’s design utilizes an industry-standard 3535 footprint combining a silicone dome and ceramic package to ensure excellent thermal efficiency. Each package in the series integrates electrostatic discharge (ESD) protection devices for longer life and reliable performance.
Visit Here
Linear Voice Coil Servo Motor
Moticont, Van Nuys, CA, offers a linear voice coil servo motor featuring high reliability, high speed, zero cogging, low inertia, and high acceleration/deceleration. When used in a servo loop, it offers very high accuracy and repeatability. The GVCM-025-022-01miniature linear voice coil motor is 1 in. (25.4 mm) in diameter and has a high force-to-size ratio of 16.9 oz. (4.7 N) continuous force and 53.5 oz. (14.9 N) of peak force at 10 percent duty cycle. A 2-56 UNC-2A threaded 0.094 in. (2.4 mm) diameter shaft and two 6-32 UNC-2B mounting holes on 0.500 in. (12.7 mm) bolt circles on each end of the motor allow for easy integration into new and existing applications and zero backlash connection to the load.
Visit Here
PWM Controller
Dart Controls, Zionsville, IN, has introduced a high-performance pulse width modulation (PWM) controller for 12–48-V battery powered equipment. Rated for 10–20 A continuous current, the 65E features adjustable maximum speed, minimum speed, current limit, IR compensation, and acceleration, plus an operating frequency of 18 kHz. In addition to the new reversing option, the updated design offers supply voltage and current limit status LEDs and current limit shutdown and output. SMT design and advanced circuitry minimizes voltage drop (up to 60+ percent less voltage drop). It is available in open chassis and NEMA 4X enclosed models. Optional undervoltage lockout protects from battery deep cycle discharge. Inhibit input provides a low power method to shut down motor.
Visit Here
Mini RTD Sensor
A compact, fullservice RTD sensor from Burns Engineering, Eden Prairie, MN, is designed for high accuracy and repeatability in space-constrained applications. Engineered for reliable performance in both subzero and high-temperature environments, the A03 is available in multiple configurations to suit a variety of application needs. Built with an industry-standard 0.25 in. diameter stainless steel sheath, the sensor installs easily in existing guide tubes and thermowells.
Visit Here
Brushless Servo Motors
Teknic, Inc., Rochester, NY, has released integrated brushless servo motors (1-4 HP continuous power) that are now officially IP66K and IP67 rated, making them ideal for demanding washdown environments. The AC-input ClearPath™ TENV (totally enclosed, non-ventilated) motors are designed to withstand both high-pressure washdowns (IP66K) and temporary submersion in water up to 1 meter when not running (IP67). The motors meets both U.S. Premium Efficiency and European IE3 efficiency standards. Each ClearPath permanent magnet (PM) motor includes a sealed, NEMA 6-rated servo drive (equivalent to a VFD) built directly into the motor enclosure. Preconfigured for advanced field-oriented control (FOC), this all-in-one design eliminates the need for external VFD-to-motor cables.
Visit Here
Medical AC-DC Power Supplies
A series of CF-rated medical open frame AC-DC power supplies is available from Advanced Energy Industries, Denver, CO. The NCF425 line of supplies are certified to IEC 60601-1 and streamline critical medical device product development. The NCF family is designed to simplify thermal and EMI management, reduce system size and weight, and reduce the bill of materials. The NCF425, certified to the medical safety standard IEC 60601-1, delivers a maximum output power of 425 W in a 3.5 × 6 × 1.5-in. form factor. It also features 5 kV defibrillator pulse protection and meets the highest possible (2 × MOPP) means of patient protection rating, which requires isolation to 4 kVac and a creepage of at least 8 mm.
Visit Here
Medical-Grade Monitor
A 21.5 in. medical-grade touchscreen from TRU-Vu Monitors, Fort Wayne, IN, is ideal for surgical viewing, diagnostic carts, PACS, and imaging applications. The projected capacitive multi-touch glass of the MMZBTP-21.5G-X supports up to 10 simultaneous touch points — responsive even through surgical gloves. The bezel-less design, with a single pane of anti-glare glass, streamlines cleaning and eliminates germ traps. Certified to UL 60601-1 3.1 and IEC 60601-1-2 4th Edition, the fan-less unit comes in a hygienic white or black ABS enclosure with IP65-rated front, built-in speakers, and DVI-D, HDMI, and DisplayPort video inputs.
Visit Here
Automatic Bandsaw
Behringer Saws, Inc., Morgantown, PA, has launched an automatic bandsaw designed to for sawing bundled materials in the medical industry with a unique clamping device design. The HBE663A Performance features a double clamping vice, which securely clamps both the starting material and the finished cut, making it ideal for bundle cutting or single cuts. The retracting fixed vice jaws enable precise positioning of even strapped bundles, enhancing overall cutting accuracy. Robust vertical clamping devices ensure that bundles are securely held during sawing, providing precise and repeatable cutting operations. The saw’s servo downfeed system, powered by a ball screw and servo motor, significantly reduces idle times and enhances feed precision. The automatic guide arm ensures optimum sawing results without adjustments.
Visit Here
Interface Terminal
TOSS Machine Components, Inc., Nazareth, PA, has released a touchscreen interface terminal that pairs with its PIREG C2 line of DIN rail mounted in-cabinet controllers. The PIREG-548 interface terminal is designed for panel mounting. The low-voltage touchscreen display offers direct communication to the PIREG controller and provides real-time graphical and numerical display of the heating element’s temperature along with the ability to set sealing temperature. Calibration can also be accomplished through the display. Optional thermocouple integration offers more advanced calibration options. Together, the PIREG-548 and PIREG-C2 delivers rapid, accurate temperature measurement by reading the heat-sealing band’s resistance directly, eliminating the need for thermocouples while in cycle.
