A project is underway to develop a novel, versatile, multi-functional convergence nanoparticle system that utilizes inorganic nanoparticles for advanced biomedical applications. Inorganic nanoparticles exhibit improved optical, magnetic, and electronic properties compared to classical bulk materials, making them useful as key components for futuristic nano-device applications.

TEM image of synthesized MnMEIO Nanoparticles, which show significant cancer cell killing effect with the AC magnetic field irradiation compared to the case without AC magnetic field.

The approach being used to develop multi-functional convergence nanoparticles involves three stages: 1) Fabrication of magnetic nanoparticles for simultaneous diagnosis and hyperthermia treatments; 2) fabrication of a convergence nanoparticle system; and 3) multi-modal utilization of convergence nanoparticles.

Magnetic nanoparticles have novel magnetic properties arising from nanoscale phenomena. For example, magnetic nanoparticles have been widely used as a diagnostic agent for MRI. Therefore, the heat-generation efficiency of magnetic nanoparticles, which make them ideal for both cancer diagnosis and therapy, have been investigated.

For the project’s purposes MnFe2O4 (MnMEIO, manganese doped magnetism engineered iron oxide) was used. MnFe2O4 is synthesized via high- temperature decomposition of MnCl2 and Fe(acac)3 in the presence of oleylamine and oleic acid as capping molecules following known methods.

The synthesized nanoparticles [1 mg/ml (Mn+Fe)] were mixed with cancer cells (MCF7) and heat-generation efficacy was measured with the cell viability under the alternating current (AC) magnetic fields (500 kHz). Live cells were stained with Calcein-acetoxymethyl (AM). The MnMEIO nanoparticles displayed significant cancer-cell killing effect with the AC magnetic-field irradiation compared to the case without AC magnetic field (see figure).

In the next stage, prototype convergence nanoparticles (Co@Pt-Au) are fabricated through epitaxial growth on the seed. Convergence nanoparticles can be fabricated through self-assembly of nanoparticles using molecular assemblers or selective secondary nucleation on top of the seed nanoparticles.

Since the chemical/biological molecules can be designed and synthesized to have high symmetry and have the ability of self-recognition and assembly, the use of these molecular assemblers enables the systematic construction of multi-component convergence nano - particles. In the case of the formation of convergence nanoparticles through secondary nucleation on the seed, modulation of similarity of the lattice geometry between seeds and secondary materials; affinity between two materials such as alloying, electrochemical potential differences; activity of a specific surface; and catalytic activity is important.

Lastly, the multi-component convergence nanoparticle system can enable multimodal multiplexing imaging and detection of biological processes by conjugating with bio-active materials. Conventional detection systems are operated independently and each detection system has its own advantages and disadvantages. However, convergence nanoparticles can overcome the many shortcomings that are present for single-imaging modality methods. As a model case study, magnetic-optical convergence nanoparticles for the dual-mode detection of proteins (amyloid protein) or lymph node is planned.

This work was done by Jinwoo Cheon of Yonsei University, Seoul, Korea, for the Air Force Research Laboratory. AFRL-0109

Topics:
Assembling Chemicals Diagnostics Diseases Emissions Exhaust emissions Fabrication Ferrous metals Imaging Imaging Imaging and visualization Iron Magnetic materials Magnetic resonance imaging (MRI) Manganese Manufacturing processes Materials Medical Medical, health and wellness Medical, health, and wellness Metals Nanotechnology Optics Particulate matter (PM)
This Brief includes a Technical Support Package (TSP).
Document cover
Convergence Nanoparticles for Multi-Modal Bio-Medical Imaging

(reference AFRL-0109) is currently available for download from the TSP library.

Don't have an account?

More From SAE Media Group

    Magazine cover
    Medical Design Briefs Magazine

    This article first appeared in the May, 2009 issue of Medical Design Briefs Magazine (Vol. 33 No. 5).

    Read more articles from this issue here.

    Read more articles from the archives here.

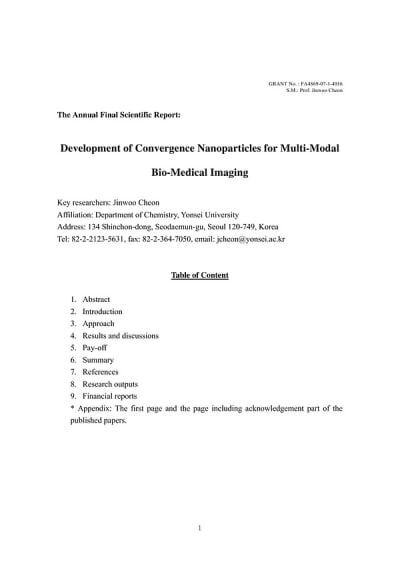

    Overview

    The document is the Annual Final Scientific Report for the project titled "Development of Convergence Nanoparticles for Multi-Modal Bio-Medical Imaging," funded under Grant No. FA4869-07-1-4016. The project is led by Prof. Jinwoo Cheon from the Department of Chemistry at Yonsei University, Seoul, Korea. The report outlines the objectives, methodologies, results, and implications of the research conducted over a year, from February 1, 2007, to February 1, 2008.

    The primary aim of the project is to develop a novel, highly versatile, multi-functional convergence nanoparticle system for advanced biomedical applications. Inorganic nanoparticles are highlighted as promising candidates for revolutionizing current scientific and technological practices due to their ability to control physical and chemical properties, which is not achievable with conventional materials. The report emphasizes that while there has been significant progress in synthesizing inorganic nanoparticles, many currently available options possess only basic functionalities, limiting their application in advanced biomedical contexts.

    The research is structured into a three-year project, with the first year focused on fabricating prototype convergence nanoparticles. The initial studies concentrated on the multi-functionality of magnetic nanoparticles, specifically their magnetic resonance (MR) contrast effects and heat generation capabilities. The project successfully synthesized prototype convergence nanoparticles by conjugating magnetic nanoparticles with optical components and radioisotopes. A feasibility test was conducted on biological systems, including studies on amyloid β aggregation and lymph node detection, demonstrating the potential applications of these nanoparticles in medical diagnostics and treatment.

    The report includes sections such as an abstract, introduction, approach, results and discussions, pay-off, summary, references, research outputs, and financial reports. It also contains an appendix with the first page and acknowledgment sections of published papers related to the research.

    Overall, the report underscores the innovative approach to developing multifunctional nanoparticles that could significantly enhance biomedical imaging techniques, paving the way for future advancements in nanotechnology and its applications in healthcare. The findings and methodologies presented in this report contribute to the ongoing evolution of nanoparticle technology, with the potential to impact various fields within biomedical science.
