New Products and Services

Fuse Clips

Keystone Electronics Corp., New Hyde Park, NY, offers UL-recognized fuse clips with end stops to ensure safety and design integrity. Available for use with 1AG through 8AG size cylindrical glass fuses, the low-profile, space-saving fuse clips can accommodate any product design requiring UL components. Clips are suitable for applications from 6 to 30 A in a variety of environments. The clips are manufactured from brass with tin or nickel plate to ensure low contact resistance and ease of use on PCBs. Designed to mount easily and retain a stable position during wave soldering, the clips are available in snap-in and pressin through-hole mounting configurations as well as rivet and surface-mounting styles.

For Free Info Click Here

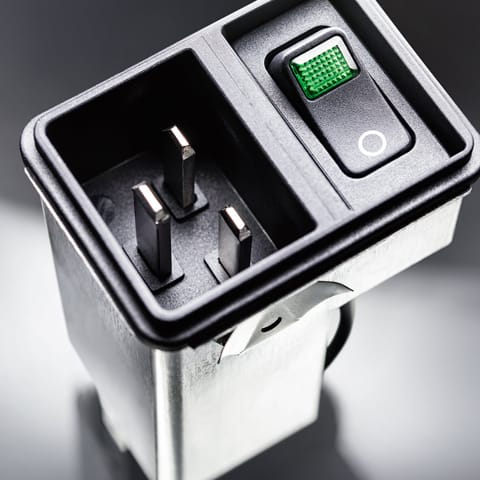

Power Entry Module

Schurter, Santa Rosa, CA, has expanded its power entry module series with a version for snap-in mounting. The new EC12 variant is designed to save panel space otherwise consumed by a mounting flange. It also provides quick and easy, well-secured installation. The compact module with snap-in mounting has the same integrated features as the flange mount version: IEC C20 appliance inlet, high-performance single-stage filter, and power switch — with or without illumination. Alternatively, it features snap arms designed to ensure a tight fit as they mount to the panel simultaneously to ensure a high-quality electrical contact to the panel, which optimizes the filtering and shielding effect.

For Free Info Click Here

Shielded Rotary Encoder

EBE, Leinfelden-Echterdingen, Germany, has developed a rotary encoder with no mechanical parts. Based on the company’s capacitive capa-TEC® technology, the rotary encoder is set by a sliding movement of several fingers across a cylinder. The operator’s fingers serve as individual influencing factors that can be detected via capacitive measurement. Electrodes introduced from within are adjusted inside the rotary encoder via a carrier element. The housing wall remains completely closed and contains no mechanical or otherwise rotating components. The capacitive rotary encoder is particularly suitable in environments that need to be regularly cleaned or disinfected.

For Free Info Click Here

Electronic Indicator

Timestrip, Cambridge, UK, has developed an electronic indicator technology suitable for pack level monitoring with both time and multiple temperature settings. The neo is a platform for a series of single-use electronic indicators that can be specified in a wide range of temperatures for both ascending and descending alerts, as well as for different durations. If any of the set conditions are breached, a system of flashing LEDs provides clear information to the user. A standard configuration is available. The design provides monitoring at three temperatures and shows the cumulative time above a specific temperature level.

For Free Info Click Here

Brushless Slotted Flat Motor

Portescap, West Chester, NY, has released a new brushless slotted flat motor. The 32ECF motor has a diameter of 32 mm and an overall body length of 17.6 mm. With an 8-pole design and high-power density in a flat architecture, the motor utilizes an outer rotor configuration with an air gap between the coil and magnetic structure that is managed radially. The motor’s electromagnetic circuit has been optimized for higher performance. The motor also delivers a maximum continuous power of 32 W at 10,000 rpm within a 32 mm flat form factor.

For Free Info Click Here

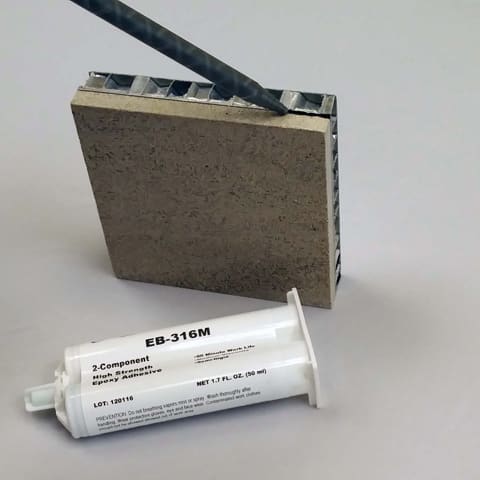

Structural Adhesive

A structural epoxy from EpoxySet, Woonsocket, RI, is now certified to ISO-10093-5 for biocompatibility. The EB-316M adhesive is used for bonding and sealing an extensive variety of substrates including metals, ceramic, glass, and many engineered plastics. It has low toxicity and low outgassing while offering excellent electrical insulation. While able to operate at 150 °C continuously, the adhesive can be cured at room temperature. It is semi-rigid, making it excellent for thermal cycling, including passing 500 cycles from –55° to 150 °C. It can also be used in cryogenic applications.

For Free Info Click Here

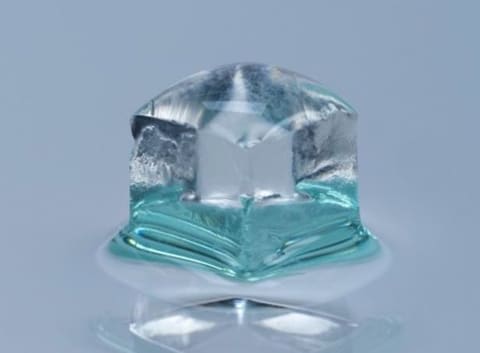

Collagen Platform

A non-animal-derived collagen platform from Evonik, Essen, Germany, is available at commercial scale for medical device applications. Vecollan® is highly pure and reproducible and offers highly tunable properties. The soluble collagen is produced via fermentation. It features a triple-helix structure to mimic the properties of natural collagen, making it suitable for use in medical, pharmaceutical, cell culture, tissue engineering, and other life science applications. As a nature-identical material, it can reliably interact with cells and tissues and be readily absorbed or remodeled by the body.

For Free Info Click Here

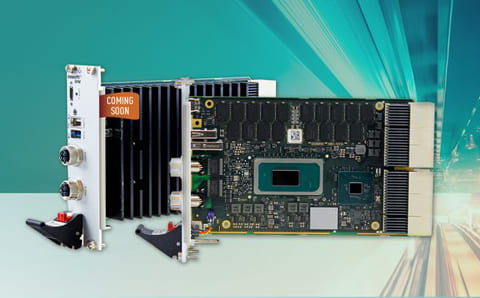

Embedded SBC

A 3U CompactPCI serial CPU board is available from Duagon, Nuremberg, Germany. The G28 features the 11th generation Intel® Core™ and Intel® Xeon® W-11000E series processors/Tiger Lake-H CPUs. With up to 8 cores and up to 64 GB RAM, the single board computer is well suited for the medical and industry. Optional 10 Gb Ethernet interfaces allow for high data throughput and direct connection to the network backbone. Up to 64 GB DDR4 DRAM with ECC is supported.

For Free Info Click Here
