Moving from AC to DC with Inverter Technology

The resistance welding industry has traditionally used rectified 3-phase AC to create DC power. This method of creating power requires large machines and large transformers, and also lacks the precise process control that many users are seeking.

Over the past few decades, power switching technology has gained greater acceptance as a solution. There is now a long history of using insulated gate bipolar transistors (IGBTs) as power switching devices in resistance welding, as well as in servo drives and personal computers. The move to electronic switching technology has led to very precise control over the DC output. In addition to this controllability, resistance welding benefits from the use of stable and durable electronic components. As a result, the inverter technology currently used to generate DC power now challenges AC welding in almost every welding application.

Amada Miyachi America has been an active participant in the movement toward inverters, developing its first inverter in 1986 for micro welding and in 1988 for large-scale welding.

How to Generate DC Power Using Inverter Technology

Fig. 1 - Generating DC power using inverter technology.

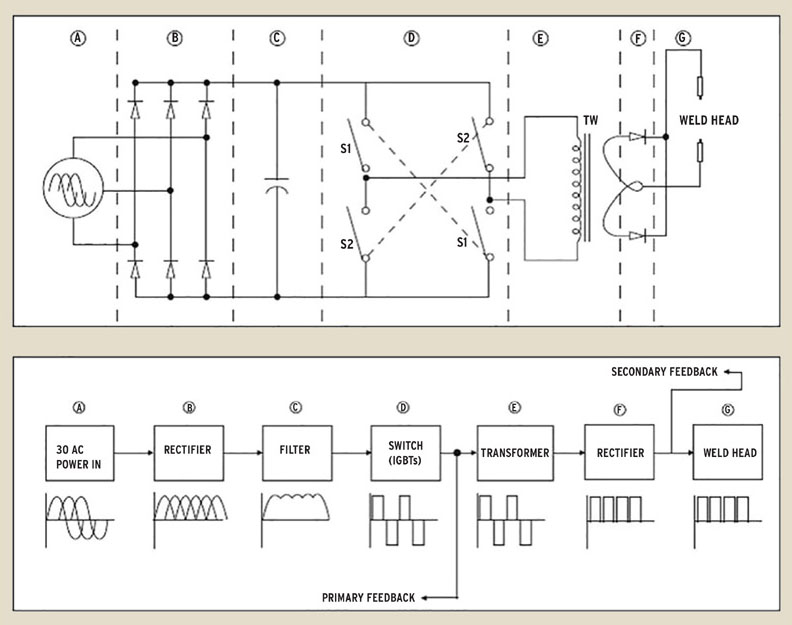

Figure 1 illustrates how the 3-phase AC power is converted to DC power, showing what happens inside the weld control system.

Block A is the incoming 3-phase AC power, typically ranging from 220 to 480 V in the United States.

Block B is the first rectification stage, in which the incoming 3-phase AC power goes through a bridge rectifier. The bridge rectifier changes, or rectifies, the 3-phase AC power to provide a DC reference voltage. As shown in the waveform in Figure 1, this produces only positive pulses. The rectification process has inverted the negative half of the wave to create this DC reference voltage.

Block C is the filtering stage, in which capacitors filter out the noise and minimize the ripple effect left over from the rectification process. This cleans up the waveform and results in more consistent current. The capacitors do not act as a storage medium, as in capacitive discharge (CD) style machines, even though they do store energy during this rectification. (Users should always follow manufacturers’ safety precautions, due to the amount of energy that can be stored.)

Block D is the switching process, during which IGBTs use the rectified and filtered waveform and switch the output power on and off. The waveform shows that the IGBTs produce positive and negative pulses. The resulting waveform is called a bipolar square wave. The IGBTs switch on and off at a specified rate or frequency measured in hertz. For example, Amada Miyachi America controls operate at 400, 600, 800, 1000, 2000, and 4000 Hz, depending on the model.

Block E is the welding transformer. The bipolar square wave is fed into the transformer, which steps down the voltage and steps up the current.

Block F is the second rectifier, which is located within the transformer. In this stage, the bipolar square wave is rectified, producing only positive pulses.

Fig. 2 - Examples of welding using inverter technology.

Block G shows the weld head.

Current feedback is configured in two ways: Primary current feedback or secondary current feedback. With primary feedback, the current is sensed at the input to the transformer. When secondary feedback is used, the current is sensed after the transformer in what is called the “secondary loop.” In both cases the control uses the sensed current to dynamically adjust the output.

Inverter technology also allows for other feedback modes, including automatic voltage compensation (AVC), constant current, constant voltage, and constant power. One of the key advantages of the inverter welding technology is that the feedback control responds in milliseconds rather than in AC cycles, which is 16.67 ms at 60 Hz. In addition, inverters can be programed in millisecond increments.

Inverter Technology: Multiple Applications

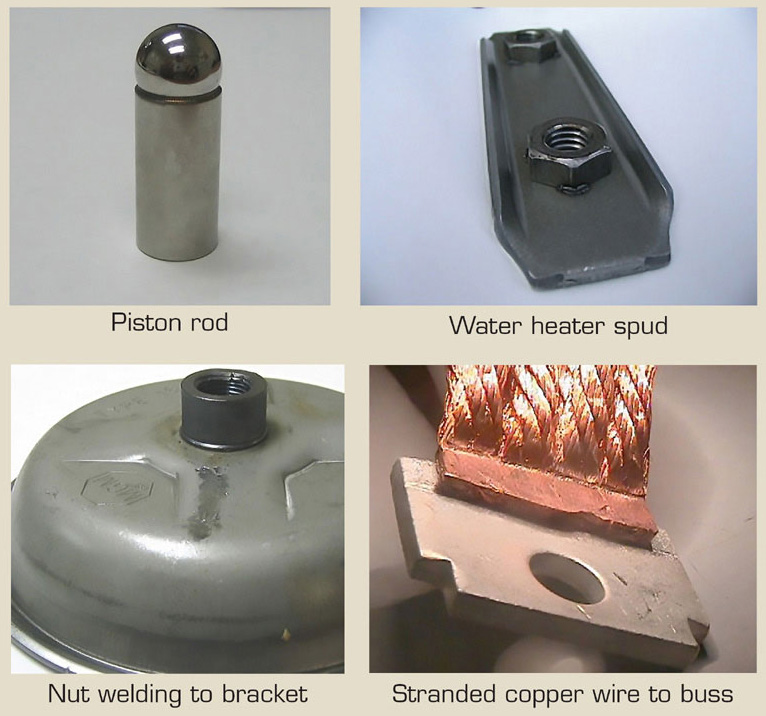

The specific advantages of resistance welding with inverter technology vary from user to user. However, using DC welding and inverters can provide the answer for most welding needs. Figure 2 shows a variety of examples of welding applications that successfully use the inverter technology.

This article was written by Mark Boyle, Product Manager, Amada Miyachi America, Monrovia, CA. For more information, visit here.
